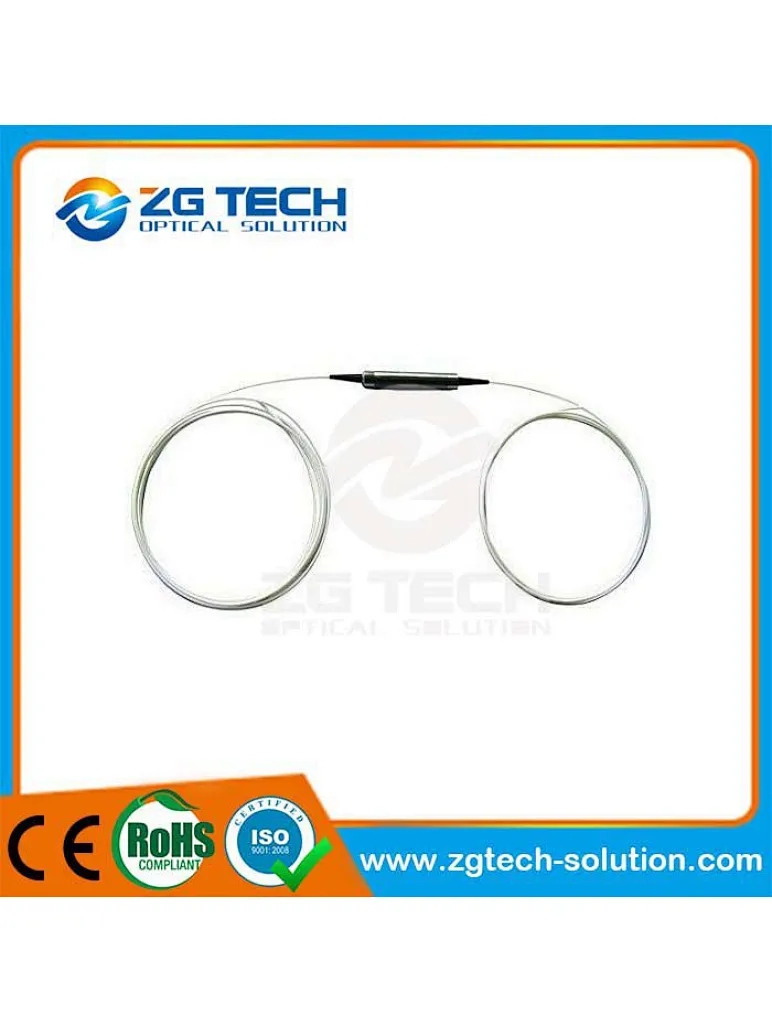

Polarization-Insensitive Single/Dual Stage Isolator/1310nm Or 1550nm Single Or Dual Stage Isolator
Optical isolators can block back lection and backscattering in the reverse direction at any polarization sate. They have low polarization mode dispersion (PMD). The optical path is epoxy-free, thereby enabling high-power applications. They are based on the micro-optics package technology and featured with the best stability and reliability
The products are Telcordia GR-1221-CORE qualified.

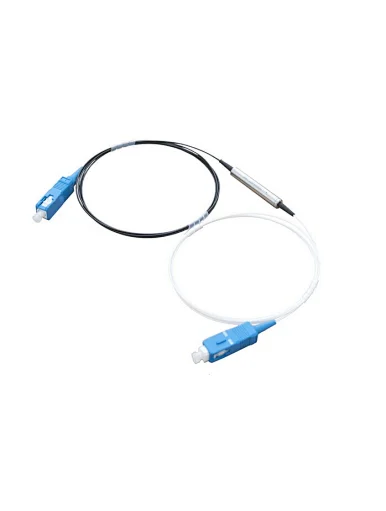

1310nm Or 1550nm Single Or Dual Stage Isolator
Performance specifications
Parameter | Single stage optical isolator | Dual stage optical isolator | ||
Grade | P | A | P | A |
Operating wavelength (nm) | 1310 or 1550 | |||
Typical peak ＆value isolation (dB) (23°C) | >42 | >40 | >52 | >50 |
Minimum ＆value isolation * (dB) (23°C) | >32 | >30 | >46 | >45 |
Insertion loss typical ＆value ** (dB) | 0.3 | 0.4 | 0.4 | 0.5 |
Insertion loss maximum ＆value *** (dB) | <0.5 | <0.7 | <0.6 | <0.8 |
Return loss (In/Out) (dB) | >65/60 | >60/55 | >65/60 | >60/55 |
PDL (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
PMD (dB) | 0.2(0.05 available upon request) | |||
Band width (nm) | ±15 | ±30 | ||
Operating temperature (°C) | -20 ~ + 70 | |||
Storage temperature (°C) | -40 ~ +85 | |||
Fiber type | Corning SMF-28 | |||
Fiber length | 1m | |||
Dimensions(mm) | 5.5x30 | |||
Power handing (mw) | 300 | |||
*At 23°C over bandwidth
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.

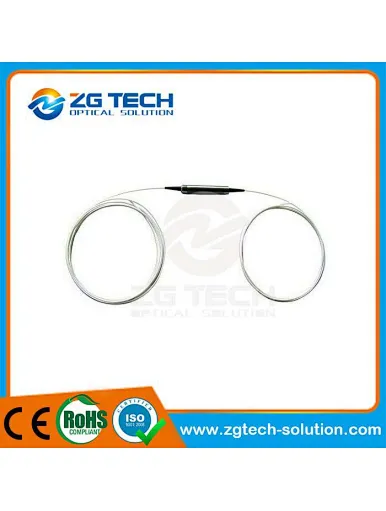

1310nm Or 1550nm Single Or Dual Stage Isolator
Ordering Information
Type | Operating wavelength | Grade | Tail filament type | Fiberlength | Package | In/out |
IS= single stage | 13=1310nm | P=P Grade | 1=250umBare filament | 1=1.0m | B=5.5X30 | 0=None |
1310nm Or 1550nm Single Or Dual Stage Isolator
Company information:
1310nm Or 1550nm Single Or Dual Stage Isolator
Certification:
More 3rd party product testing report will be support when contact with ZG TECH.
