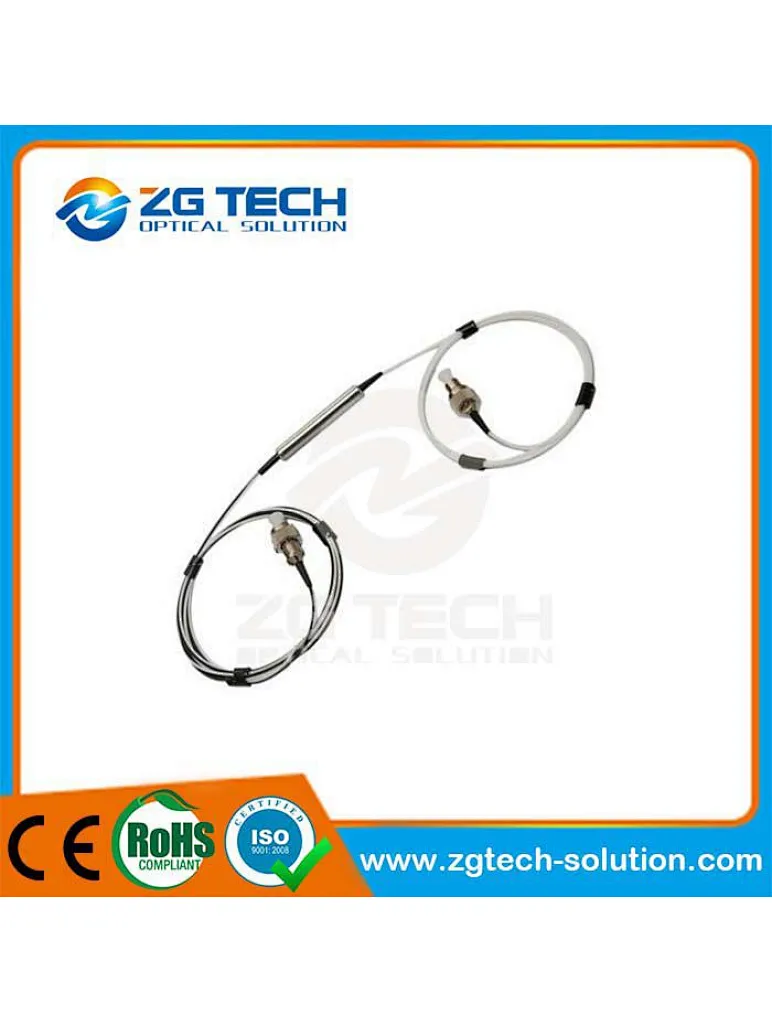

1480nm Single/ Dual Stage Isolator
1480nm Single/ Dual Stage Isolator can block back lection and backscattering in the reverse direction at any polarization sate. 1480nm Single/ Dual Stage Isolator have low polarization mode dispersion (PMD). The optical path is epoxy-free, thereby enabling high-power applications. They are based on the micro-optics package technology and featured with the best stability and reliability
The products are Telcordia GR-1221-CORE qualified.

1480nm Single/ Dual Stage Isolator

Performance specifications
​​​​​​​1480nm Single/ Dual Stage Isolator

Product name

1480 single stage isolator

1480 dual stage isolator

Parameter

P Grade

A Grade

P Grade

A Grade

Operating wavelength (nm)

1480

Typical peak value isolation (dB)

42

40

55

52

Isolation minimum value *(dB)

32

30

45

44

Insertion loss typical value ** (dB)

0.4

0.5

0.5

0.6

Insertion loss maximum value(dB)

0.6

0.8

0.7

0.9

Return loss (In/Out) (dB)

>65/60

>60/55

>65/60

>60/55

Polarization dependent loss (dB)

< 0.05

< 0.1

< 0.05

< 0.1

PMD (dB)

0.2(0.05 available upon request)

Band width (nm)

±15

±30

Operating temperature(°C)

-20 ~ + 70

Storage temperature (°C)

-40 ~ +85

Fiber type

Corning SMF-28

Fiber length

1 rice

Dimensions(mm)

Ø5.5xL35

Power handing (mw)

300

*At 23°C over bandwidth
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
Ordering Information

​​​​​​​1480nm Single/ Dual Stage Isolator

Type

Operating wavelength

Grade

Tail filament type

Fiberlength

Package

In/out
     connector

IS= single stage
IU= Dual stage

 13=1310nm
 14=1480nm
 15=1550nm
 LB=L band

P=P  Grade
A=A  Grade

1=250umBare filament
     2=900um Loose drive pipe 3=3mmSplice case

1=1.0m
2=1.5m
3=2.0m
4=customer assigns

B=5.5X30

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

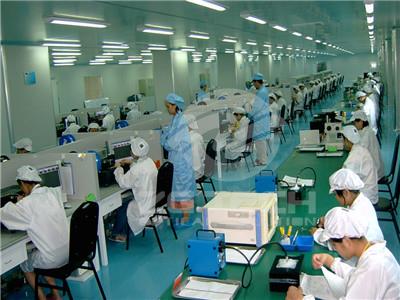

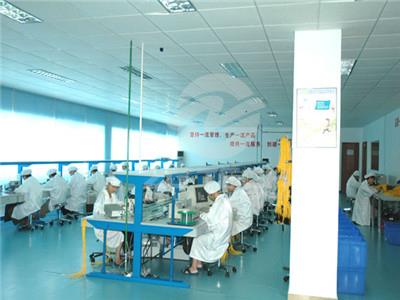

Company information:
