As one of the leading 100ghz 16 Channel WDM, DWDM manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 100ghz 16 Channel WDM, DWDM made in China.
Quantity

As one of the leading 100ghz 16 Channel WDM, DWDM manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 100ghz 16 Channel WDM, DWDM made in China. 16 Channel WDM, DWDM, 16 Channel WDM, DWDM

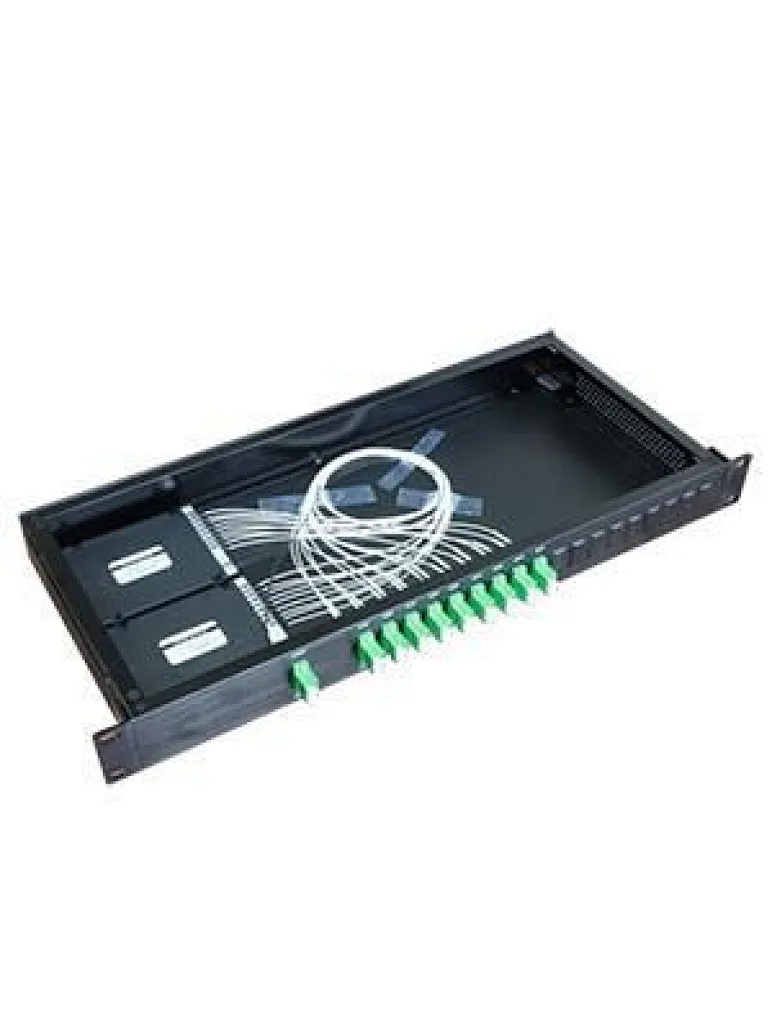

100GHz CWDM 16 Channel WDM, DWDM

100GHz ITU channel spacing

Low insertion loss

Wide pass band

High channel isolation

High stability and reliability

Epoxy free on optical path

Channel add / drop

DWDM network

Wavelength routing

Fiber optical amplifier

CATV fiberoptic system

Performance Specifications

Parameter

MUX

DEMUX

Operating Wavelength (nm)

                    ITU 100 GHz Grid

Center Wavelength Accuracy (nm)

± 0.1

Channel Spacing (GHz)

100

Channel Pass band (@-0.5dB bandwidth) Min.(nm)

0.22

Insertion Loss (dB)

< 6.0

Channel Uniformity (dB)

< 7.5

Channel Ripple (dB)

< 0.3

Isolation (dB)

Adjacent

N/A

>25

Non-adjacent

N/A

>35

Insertion Loss Temperature Sensitivity (dB/°C )

<0.005

Wavelength Temperature Shifting (nm/ °C )

<0.002

Polarization Dependent Loss (dB)

<0.15

Polarization Mode Dispersion (p s)

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mw)

300

Operating Temperature (°C)

0 ~+65

Storage Temperature (°C)

-40 ~+85

Package Dimension (mm)

                       150x95x15

Specifications may change without notice, without connector date
Ordering Information

DWDM

Channel Spacing

Channel

Configuration

1st  Channel

Fiber Type

Fiber Length

Connector



1=100GHz

16=16 Channel

M=Mux
D=DeMux

21=1560.61nm
22=1559.79nm
23=1558.98nm

1=Bare Fiber
2=900um Fiber

1=1 Meter
2=2 Meter

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

Production Drawing:
