16 Channel Passive WDM

Passive WDM
16 Channel Passive WDM
16 Channel Passive WDM
As one of the leading Passive WDMmanufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 16 channel Passive WDM. Welcome to send us inquiry of Passive WDM​​​​​​​
Quantity

As one of the leading Passive WDMmanufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 16 channel Passive WDM. Welcome to send us inquiry of Passive WDM

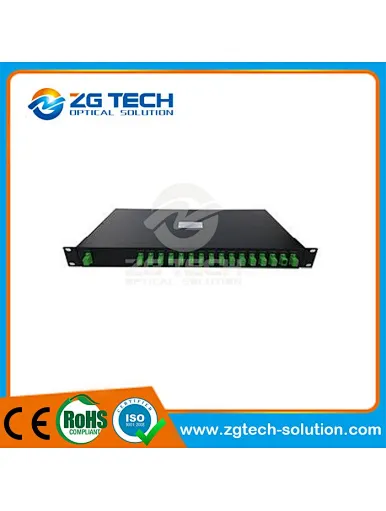

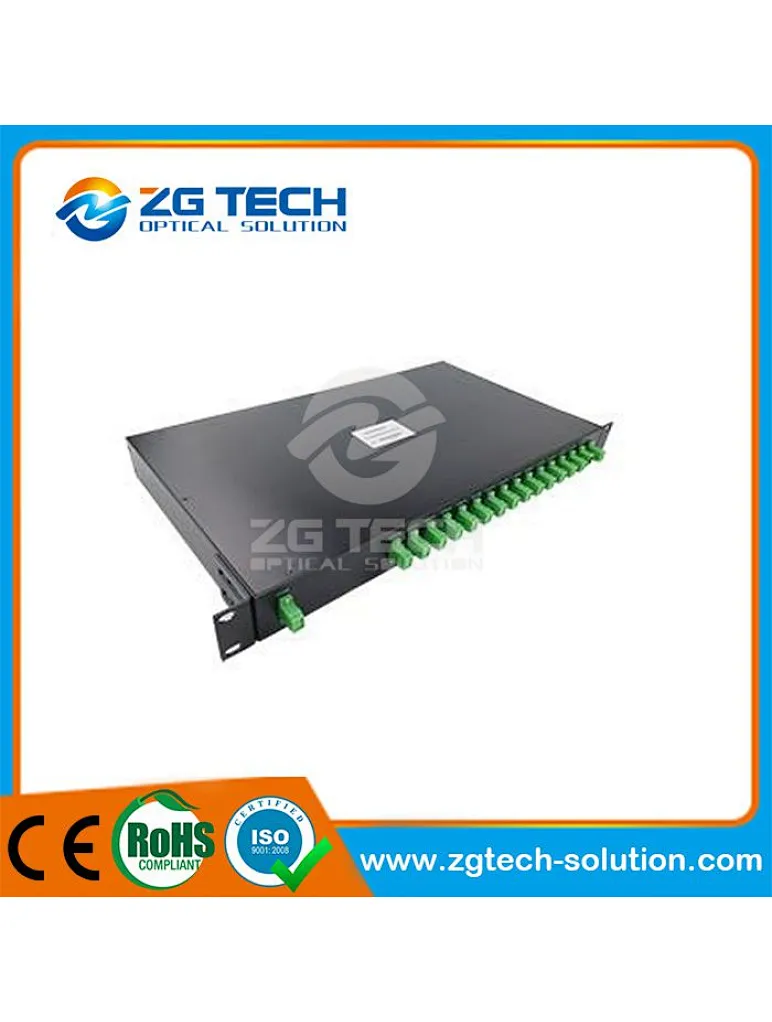

16-Channel Passive WDM

Features

Applications

Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path

Line monitoring
WDM network
Telecommunication
Cellular Application
Fiber optical amplifier
Access network

Performance Specifications

Passive WDM

Parameter

MUX

DEMUX

Operating Wavelength (nm)

                       1260—1620 nm

               1471, 1491 or 1470, 1490 etc.

Center Wavelength Accuracy (nm)

± 0.5

Channel Spacing (GHz)

20nm

Channel Pass band (@-0.5dB bandwidth) Min.(nm)

>13

Insertion Loss (dB)

< 5

Channel Uniformity (dB)

< 2.0

Channel Ripple (dB)

< 0.3

Isolation (dB)

Adjacent

N/A

>30

Non-adjacent

N/A

>40

Insertion Loss Temperature Sensitivity (dB/°C )

<0.003

Wavelength Temperature Shifting (nm/ °C )

<0.002

Polarization Dependent Loss (dB)

<0.10

Polarization Mode Dispersion (p s)

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mw)

300

Operating Temperature (°C)

-20 ~+85

Storage Temperature (°C)

-40 ~+85

Package Dimension (mm)

                    L110 x W95 x H7.5

Specifications may change without notice
Ordering Information

Passive WDM

CWDM

Numberof channels

Configuration

1st
Channel

Fiber Type

Fiber
Length

Connector

16=16Channel

M=Mux
D=Demux

41=1411nm

43=1431nm

55=1551nm

57=1571nm

1=250um Bare Fiber
2=900um Loose tube Fiber

1=1 Meter
2=2 Meter

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
