ABS module 1X32 PLC Splitter
Products Overview:

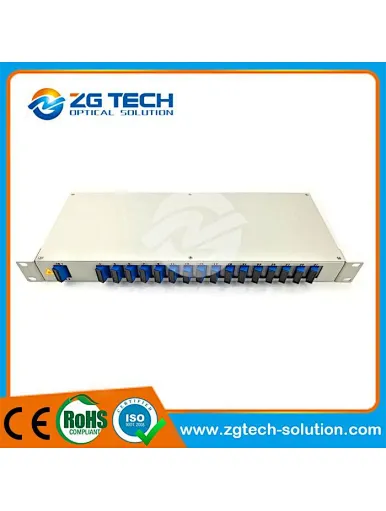

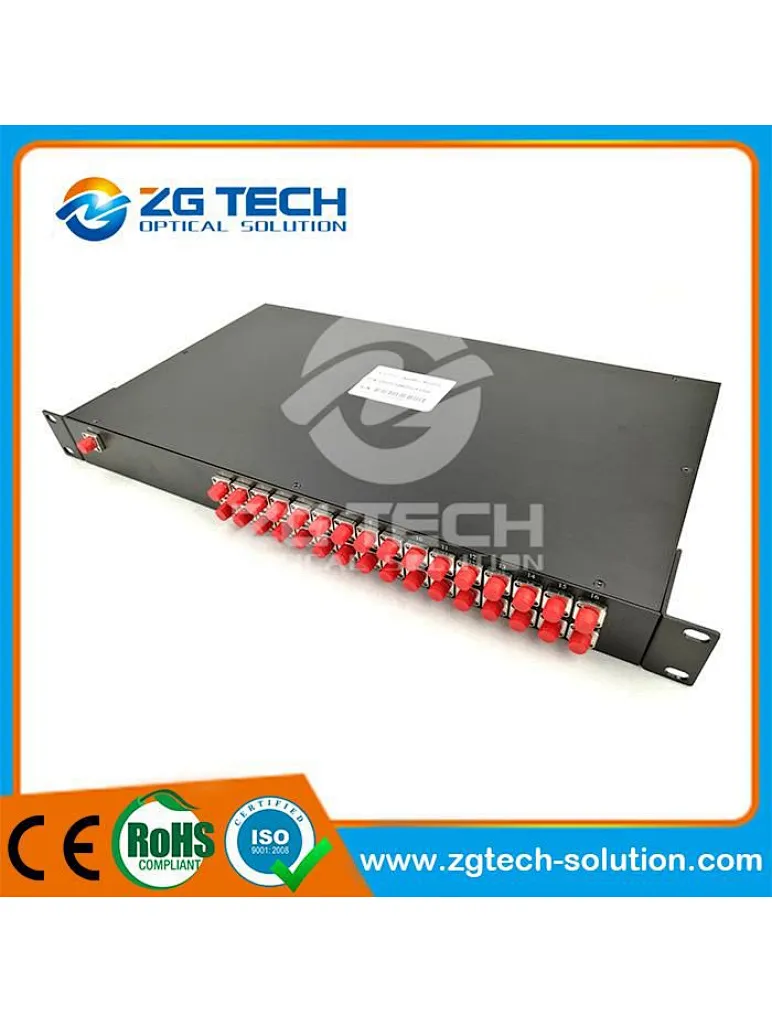

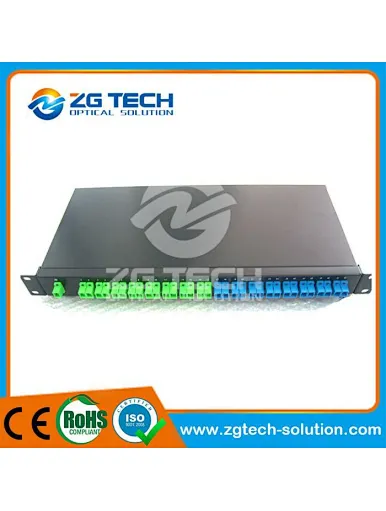

1U 19 Inch Rack Mounted 1x32 PLC Splitter
ZG Tech's Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
1U 19 Inch Rack Mounted 1x32 PLC Splitter
Type | 1x32 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 16.8 |
Maximum | 17 | |
Uniformity (dB) | Maximum | 1.2 |
Polarization Dependent Loss (dB) | Maximum | 0.2 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
1U 19 Inch Rack Mounted 1x32 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

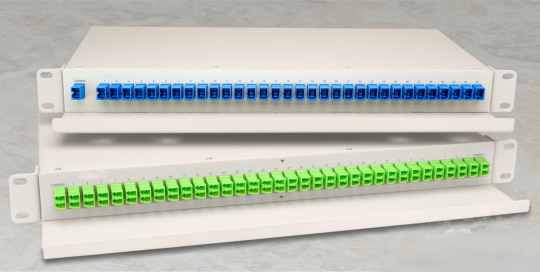

1U Rack mount dimensions:
1U 19 Inch Rack Mounted 1x32 PLC Splitter
PLC Type | 1x32 |
1U Rack mounted Type | 435x245x44 / 1U 19” |
Material | Iron and Aluminum Available |
Adapter type | SC,FC,ST,LC…… |

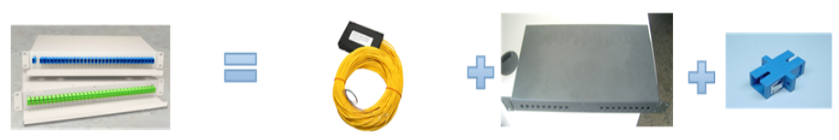

Product component:
1U 19 Inch Rack Mounted 1x32 PLC Splitter

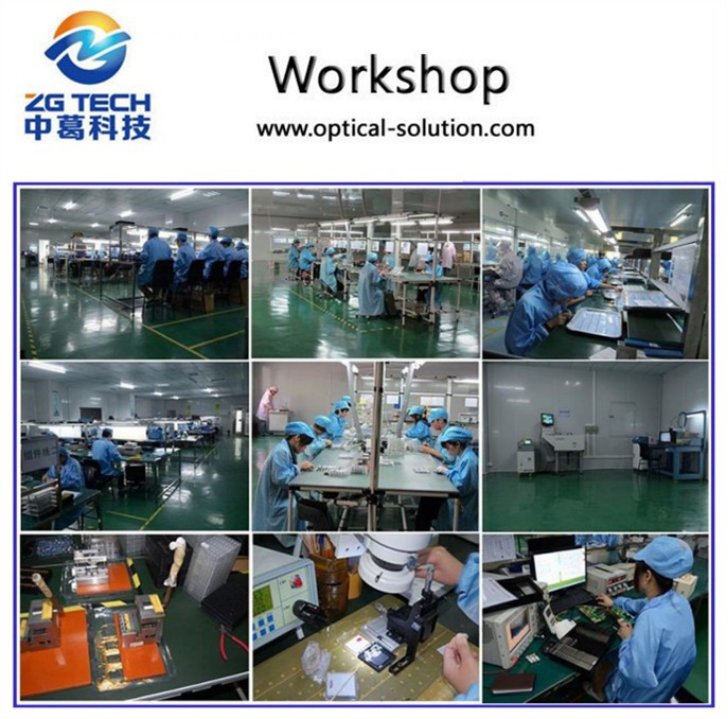

Company Information:
1U 19 Inch Rack Mounted 1x32 PLC Splitter
Shipping information:
