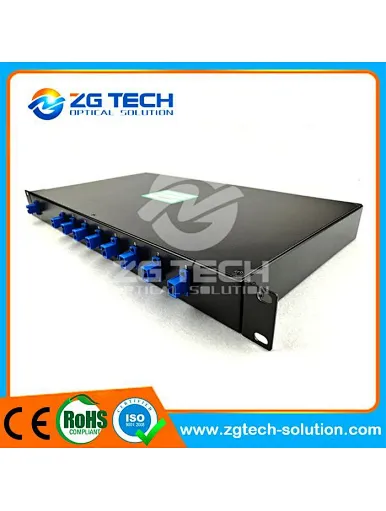

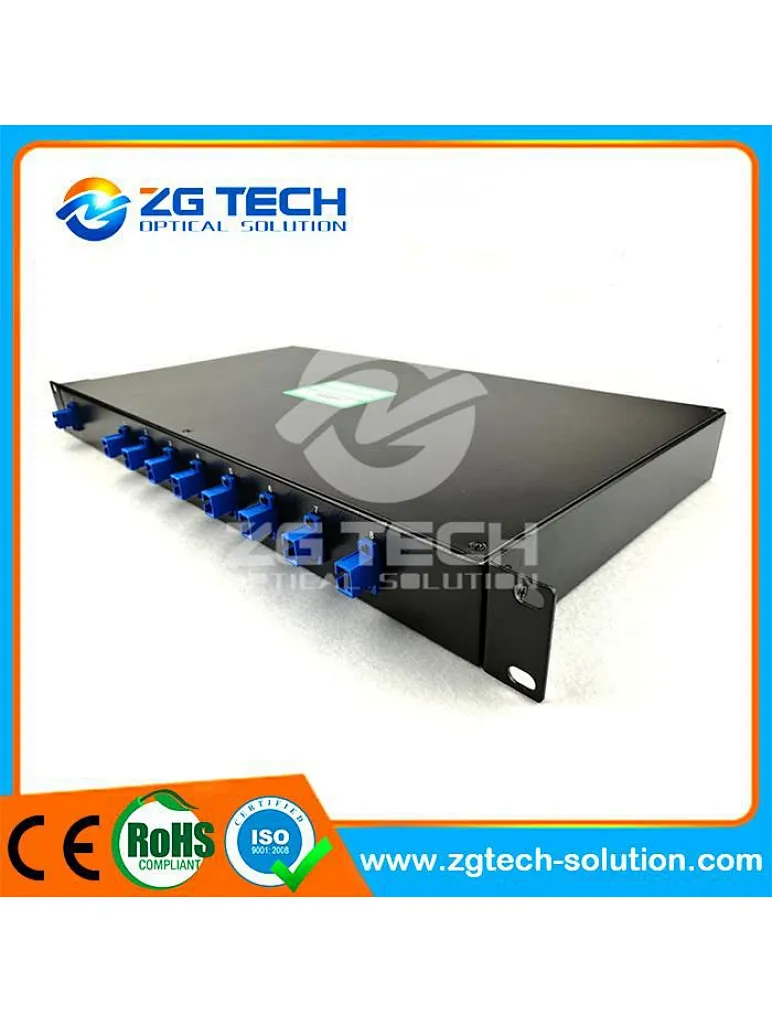

1U 19 inch Rack mounted 1x8 plc splitter
Products Overview:
ZG Tech's 1U 19 Inch Rack Mounted 1x8 PLC Splitter, is a kind of planar waveguide integrated optical device, 1U 19 Inch Rack Mounted 1x8 PLC Splitter can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
Type | 1x8 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 10.3 |
Maximum | 10.5 | |
Uniformity (dB) | Maximum | 0.8 |
Polarization Dependent Loss (dB) | Maximum | 0.1 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.
1U 19inch chassis Dimensions:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
PLC Type | 1x8 |
LGX BOX Pacakge | 435x245x44 / 1U 19” |
Material | Iron and Aluminum Available |
Ordering Information:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
ZP | Channel | Package Type | Fiber Type | Connector Type In | Connector Type Out | Fiber |
Z=ZG TECH P= | 0108=1x8 | R=19inch Rack Mount | 1=900um loose tube 2=2mm cable 3=3mm cable | 0=no connector | 0=no connector | 06=0.6mter 10=1meter |

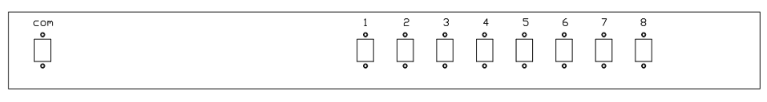

Drawing of the face panel:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
Packing Detail:
1U 19 Inch Rack Mounted 1x8 PLC Splitter
Method:Packed 1pcs into the bubble bag, 1pcs/bag, then 50pcs packed into master carton.
