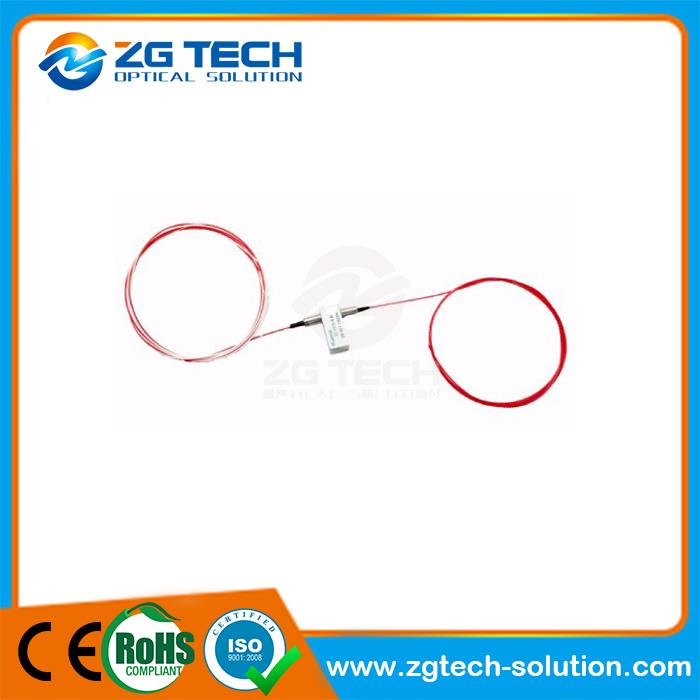

1x1Mechanical fiber optic switch

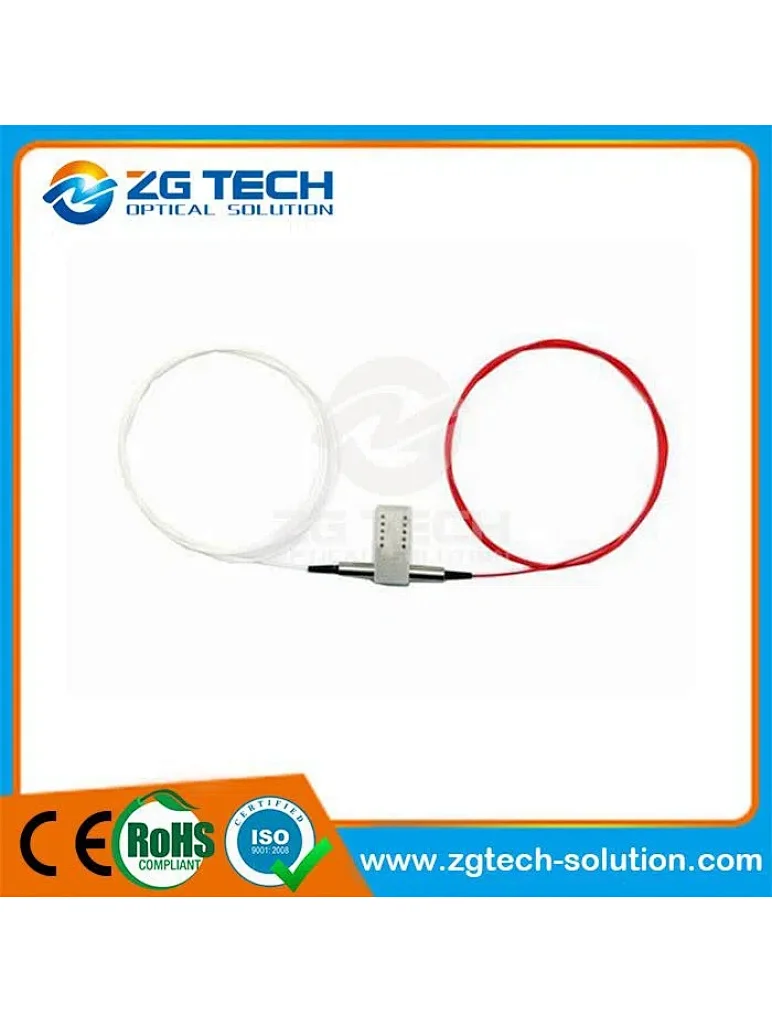

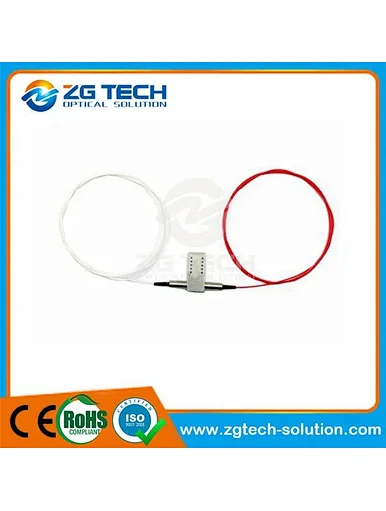

1x1Mechanical fiber optic switch latching type
Features | Applications |
Low Insertion Loss | Channel Blocking |
fiber optic switch oerformance Specification
1x1Mechanical fiber optic switch Latching Type
LB Series 1×1 (1310/1550) Switch | Min | Typical | Max | Unit |
Operation Wavelength Range | 1260~1360 and/or 1510~1610 | nm | ||
Insertion Loss12 | 0.5 | dB | ||
Wavelength Dependent Loss (WDL) | 0.10 | 0.15 | dB | |
Temperature Dependent Loss (TDL) | 0.10 | 0.20 | dB | |
Polarization Dependent Loss (PDL) | 0.05 | 0.1 | dB | |
Cross Talk | 55 | dB | ||
Return Loss2 | 55 | dB | ||
Repeatability | 0.02 | dB | ||
Switching Time | 10 | ms | ||
Operating Current3 | 40 | 50 | 60 | mA |
Operating Voltage3 | 4.5 | 5.0 | 5.5 | VDC |
Durability | 107 | cycles | ||
Optical Power Handing | 500 | mW | ||
Operating Temperature | 0 | 70 | ℃ | |
Storage Temperature | -45 | 85 | ℃ | |
Switch Type | Latching or non-latching | |||
Fiber Type | See order information | |||
Package Dimension | (L)46×(W)13.4×(H)11 | mm | ||
Note:
*23℃ over operating wavelength range and all SOP.
*Excluding connectors.
*A 5V DC, 50mA pulse of 20ms Duration is recommended.
fiber optic switch Ordering Information
1x1Mechanical fiber optic switch Latching Type
SW | Type | Wavelength | Configuration | Package | Fiber Type | Fiber Length | Connector |
11=1×1 | 3=1310 | 1=standard | 1=Standard | 1=SMF-28 250um | 1=0.25M | 1=None |
Fiber Optic Switch Mechanical Dimensions (Unit: mm)
1x1Mechanical Fiber Optic Switch Latching Type
Fiber Optic Switch Electrical Drive
1x1Mechanical fiber optic switch latching type
Optical Path | Electrical Drive | Status Sensor | ||||||
Pin1 | Pin10 | Pin5 | Pin6 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 | |
On | +V Pulse | GND | N/A | N/A | open | close | close | open |
Off | GND | +V Pulse | N/A | N/A | close | open | open | close |
1x1Mechanical Fiber Optic Switch Latching Type
