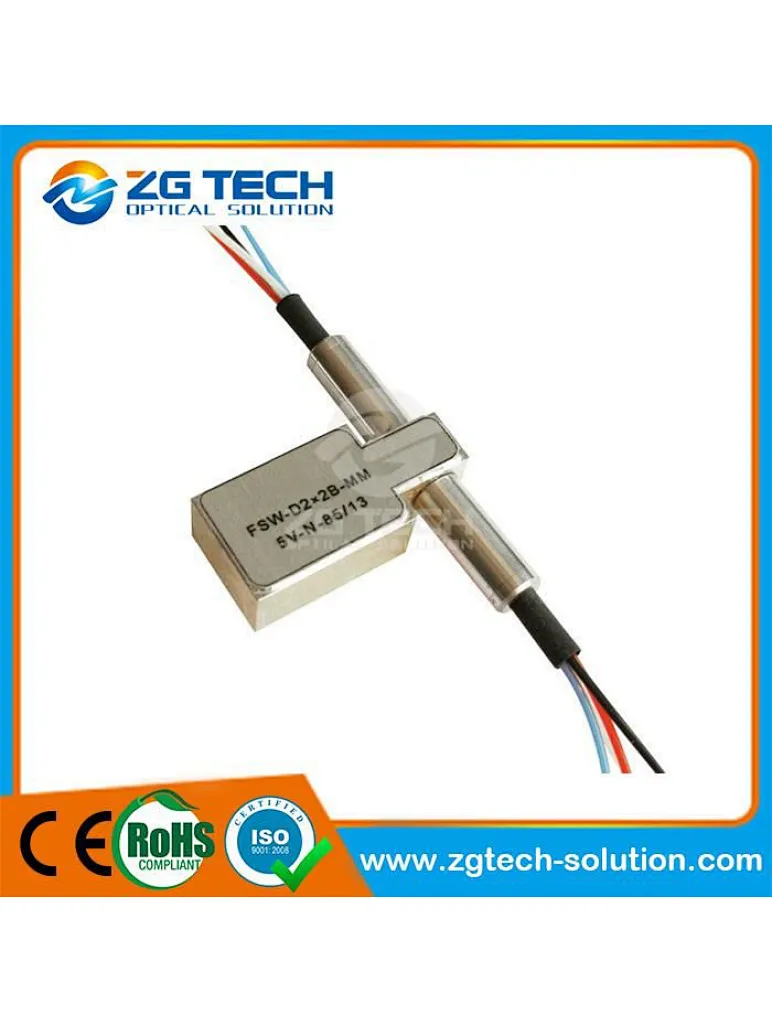

1x2 Multimode Mechanical Fiber Optic Switch
Features | Applications |
Unmatched Low Cost Low Insertion Loss 2 Coils Latching / No Latching High Channel Isolation Highly Stable and Reliable Epoxy-Free Optical Path | Optical Signal Routing Optical Network Protection/Restoration Configurable Optical Add/Drop Transmitter and Receiver Protection Network Test Systems Instrumentation |
1x2 Multimode Mechanical Fiber Optic Switch
Fiber Optic Switch Performance Specification
Parameter | Specification | |
Operating Wavelength (nm) | 850 ± 40 or 1310 ± 40 | 850/1310 ± 40 |
Insertion Loss (dB) | < 0.8 (P Grade),<1.0 (A Grade) | < 1.0 (P Grade),<1.2 (A Grade) |
Wavelength Dependent Loss | < 0.25 | < 0.30 |
Polarization Dependent Loss (PDL) (dB) | < 0.05 | |
Cross Talk (dB) | >35 | |
Return Loss (dB) | >35 | |
Switching Speed (typ.) (ms) | 4 | |
Operating Voltage (V) | 5 | |
Power Handling (mW) | 500 | |
Durability (cycles) | >10 million | |
Operating Temperature (°C) | 0 ~ 70 | |
Storage Temperature (°C) | - 40 ~ 85 | |
Physical Dimension (LxWxH) (mm) | 31.56 x 11.4 x 10.35 | |
1x2 Multimode Mechanical Fiber Optic Switch
Fiber Optic Switch Electrical Pin Configuration:
Optical Path | Electrical Drive | Status Sensor | ||||||
Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
Path 1-2 | V + | GND | NC | NC | Open | Close | Close | Open |
Path 1-3 | NC | NC | GND | V+ | Close | Open | Open | Close |
Specifications may change without notice
1x2 Multimode Mechanical Fiber Optic Switch
Fiber Optic Switch Dimensions
1x2 Multimode Mechanical Fiber Optic Switch
Fiber Optic Switch Ordering Information
MMS | Operating | Port | Grade | Fiber Type | Pigtail Type | In/Out Connector |
13=1310±40nm | 0102=1x2 | P = P Grade | 1 = 50/125 | 1=Bare fiber | 0=None |
