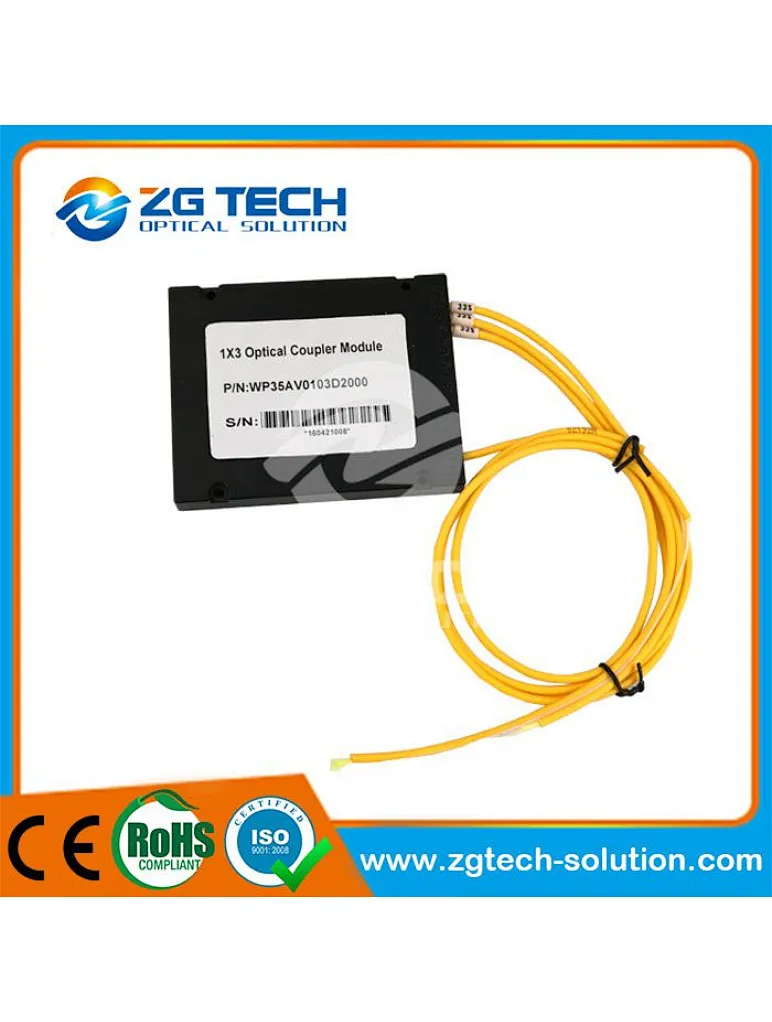

Single Mode Single Window 1x3 FBT Coupler

Single Mode Single Window 1x3 FBT Coupler
Single Mode Single Window 1x3 FBT Coupler
1x3 Coupler
Single Mode Single Window 1x3 FBT Coupler,As one of the leading single mode single fusion 1x3 coupler manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price single mode single fusion 1x3 coupler made in China. Welcome to visit our website.
Quantity

Single Mode Single Window 1x3 FBT Coupler,As one of the leading single mode single fusion 1x3 coupler manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price single mode single fusion 1x3 coupler made in China. Welcome to visit our website.

Single Mode Single Window 1x3 FBT Coupler

Applications

Features

Optical fiber test system

Telecommunication system

Luminous power feedback

Low insertion loss

High directivey

Compact size

Extremely good stability and reliability

Single Mode Single Window 1x3 FBT Coupler

Single Mode Single Window 1x3 FBT Coupler
Performance Specifications

Coupling ratio

33:33:33

Operating wavelength

nm

1310 / 1550±40

Port numberss

1×3

Grade

P

A

Excess loss

dB

0.2

0.3

Max insertion loss

dB

5.6

6.0

Max polarization indepedent loss

dB

0.25

0.30

Max uniformity

dB

1.2

1.8

Mini return loss

dB

55

Operating temperature

-10~+70

Storage temperature

-40~+85

Dimensions

mm

B=Φ3×60 for bare fiber

L=Φ3.5×70 for 900um loose tube

Single Mode Single Window 1x3 FBT Coupler,All data do not contain the connector loss

Single Mode Single Window 1x3 FBT Coupler
Ordering Information

SLC

Wavelength

Grade

Structure

Coupling Ratio

Package

Fiber Length

Fiber Type

Connector Type

35=1310/1550

P=P Grade
     A=A Grade

3=1*3

00=Even

B
L

1=1m
     0=others

1=SMF-28
     0=Others

0=None
     1=FC/SPC
     2=FC/PC
     3=FC/APC
     4=SC/SPC
     5=SC/PC
     6=SC/APC
 7=ST
     8=Others

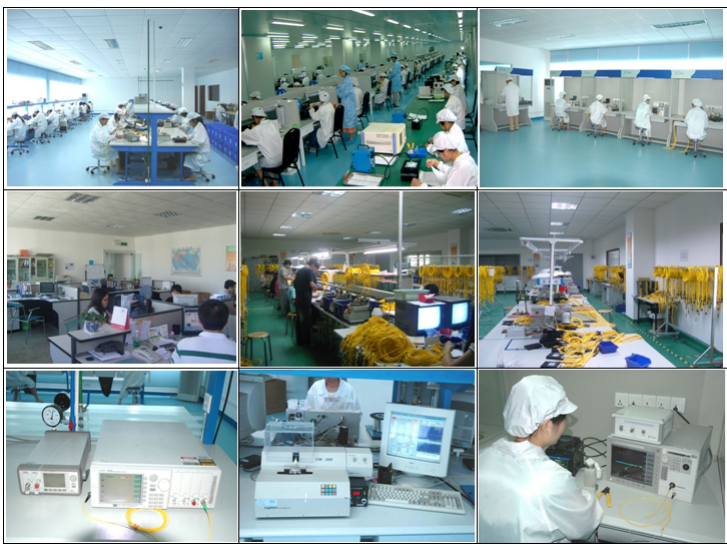

Company information:
