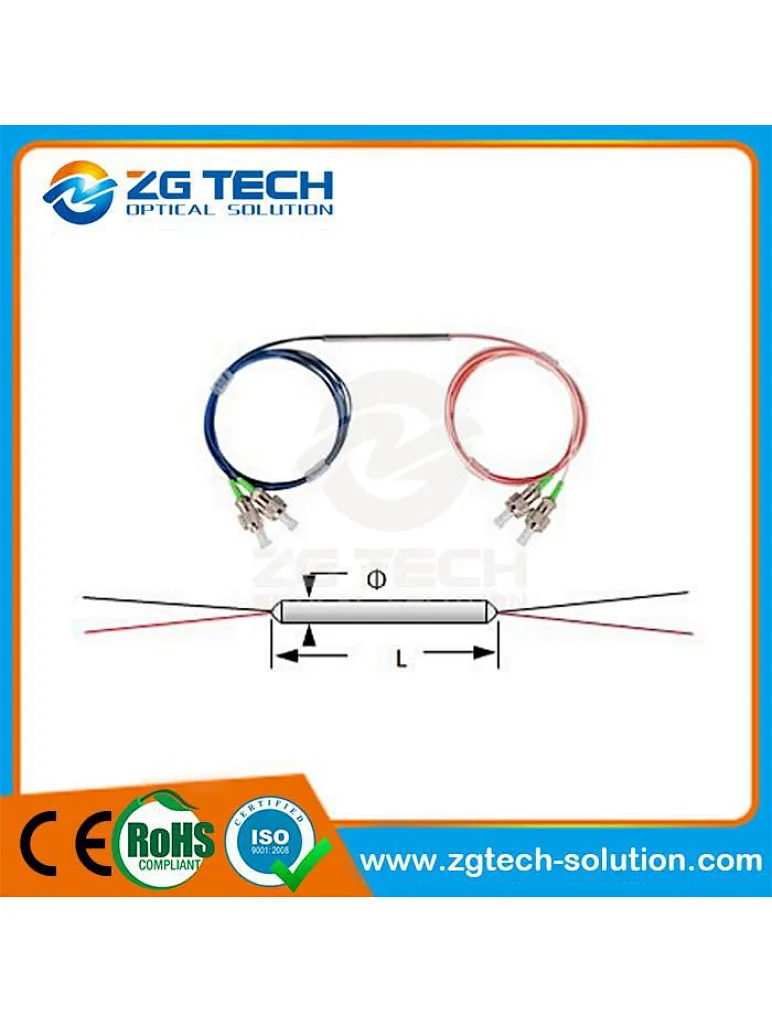

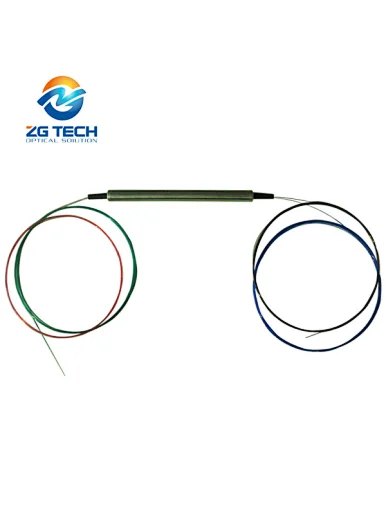

4 Port Circulator Polarization Insensitive four port optical circulator
4 Port Polarization Insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. 4 Port Polarization Insensitive optical circulator provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application
4 Port Circulator Polarization Insensitive four port optical circulator
Performance Specification
4 Port Circulator Polarization Insensitive four port optical circulator
Parameter | P Grade | A Grade | |
Configuration | Port 1 to Port2 Port3 to Port 4 | ||
Operation Wavelength (nm) | 1310,1550 | ||
Insertion Loss (dB), | Typical | 0.8 | 1.0 |
Maximum | 1.0 | 1.2 | |
Channel Peak Isolation (dB) | 50 | ||
Channel Minimum Isolation (dB) | 40 | ||
Channel Cross Talk (dB) | >50 | ||
Polarization Dependent Loss (dB) | <0.10 | ||
Polarization Mode Dispersion (p s) | <0.1 | ||
Return Loss (dB) | >50 | ||
Maximum Power Handling (mw) | 300 | ||
Operating Temperature (°C) | 0 ~+70 | ||
Storage Temperature (°C) | -40 ~+85 | ||
Package Dimension (mm) | OD5.5 x L60 or L63 | ||
Specifications may change without notice
4 Port Circulator Polarization Insensitive four port optical circulator
Ordering Information
4 Port Circulator Polarization Insensitive four port Optical Circulator
PIOC 3 | Operating Wavelength | Grade | Fiber type | Fiber length | Connector type |
13=1310 | P=P | 1=250um bare fiber | 1 =1meter | 0=None |
