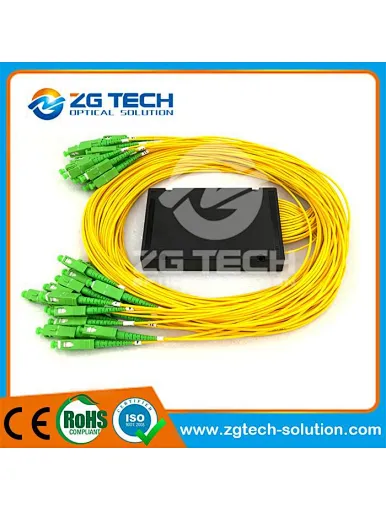

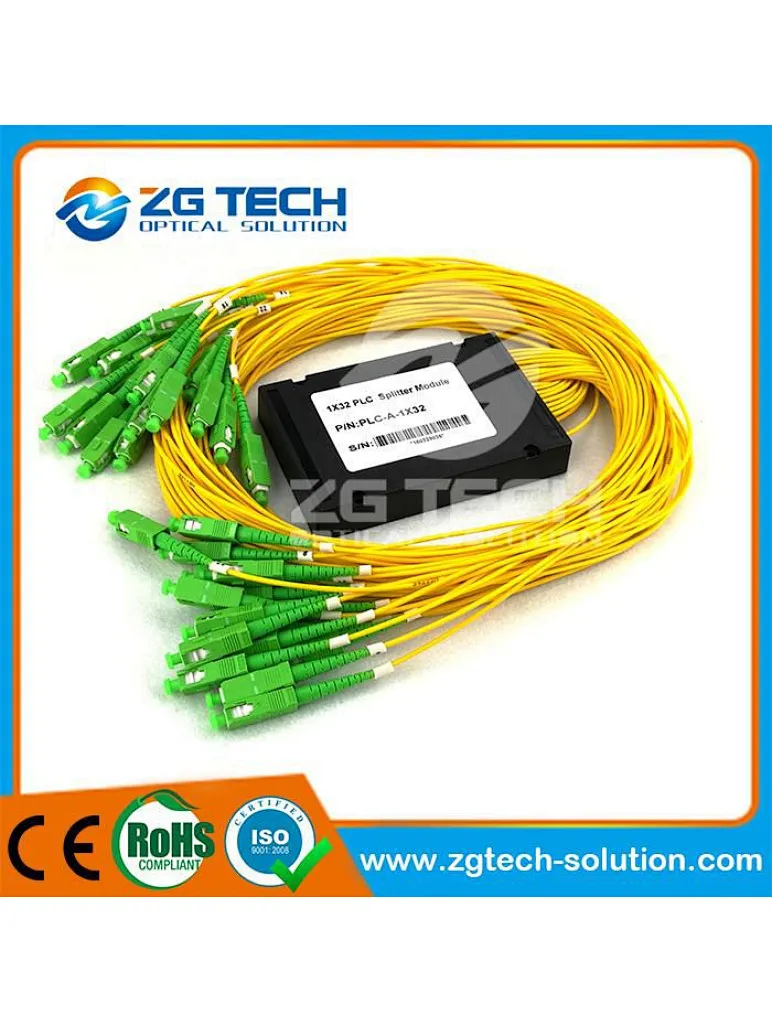

ABS Module 1x32 PLC Splitter

Model NO. PLC Splitter ABS Module 1x32

Minimum order quantity: 1

As one of the leading abs module 1x32 plc splitter manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price abs module 1x32 plc splitter made in China. Welcome to visit our website.

Quantity

ABS module 1X32 PLC Splitter

ABS Module 1x32 PLC Splitter

Products Overview:
ZG Tech's ABS Module 1x32 PLC Splitter, is a kind of planar waveguide integrated optical device, ABS Module 1x32 PLC Splitter can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features:
ABS Module 1x32 PLC Splitter
Low Insertion Loss and High Uniform
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209
Applications:
ABS Module 1x32 PLC Splitter
Fiber to The Point (FTTH)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television Networks (CATV)
Test Equipment

Performance Specifications:
ABS Module 1x32 PLC Splitter

Type		1x32
Operating Wavelength(nm)		1260~1650
Insertion loss (dB)	Typical	16.8
Insertion loss (dB)	Maximum	17
Uniformity (dB)	Maximum	1.2
Polarization Dependent Loss (dB)	Maximum	0.2
Return loss (dB)	Minimum	≥50
Directivity (dB)	Minimum	≥55
Operating temperature (℃)		-20 to75
Storage temperature (℃)		-40 to 85
Optical fiber type		SMF-28 Or the customer require
Optical fiber length (m)		1.0 or customize

Remarks:
ABS Module 1x32 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.
ABS Plastic Box Dimensions:
ABS Module 1x32 PLC Splitter
