Products Overview:
ABS Module 1x4 PLC Splitter
ZG Tech's ABS Module 1x4 PLC Splitter, is a kind of planar waveguide integrated optical device, ABS Module 1x4 PLC Splitter can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features:
ABS Module 1x4 PLC Splitter
Low Insertion Loss and High Uniform
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209
Applications:
ABS Module 1x4 PLC Splitter
Fiber to The Point (FTTH)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television Networks (CATV)
Test Equipment
Performance Specifications:
ABS Module 1x4 PLC Splitter
Name | ABS Module 1x4 PLC Splitter | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 7.2 |
Maximum | 7.2 | |
Uniformity (dB) | Maximum | 0.8 |
Polarization Dependent Loss (dB) | Maximum | 0.1 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
ABS Module 1x4 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

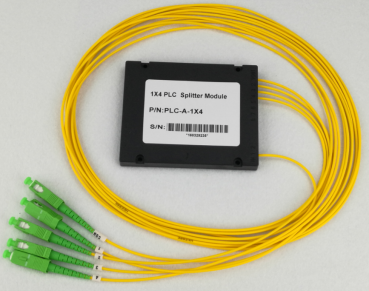

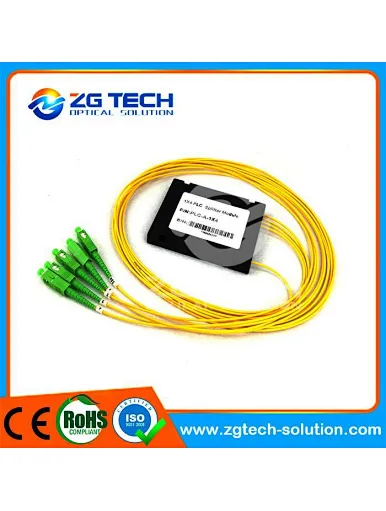

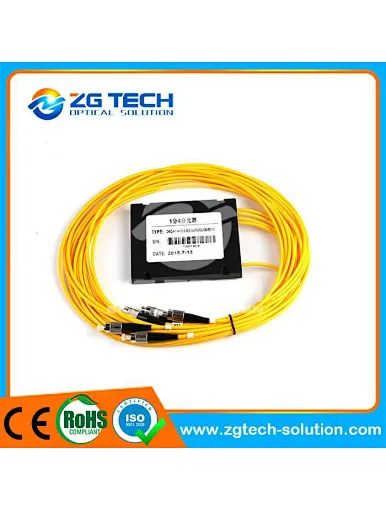

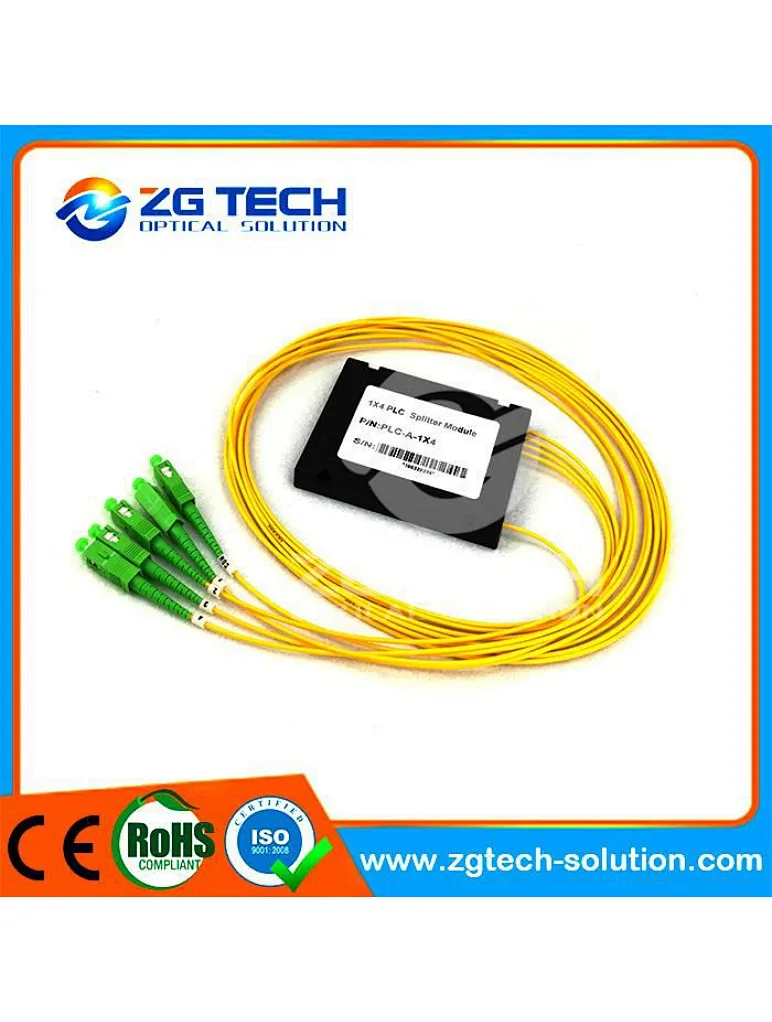

ABS Plastic Box Package Pictures:
ABS Plastic Box Dimensions:
ABS Module 1x4 PLC Splitter
PLC Type | 1x4 | |
ABS BOX Pacakge | 100*80*10 | |
Ordering Information:
ABS Module 1x4 PLC Splitter
ZP | Channel | Package Type | Fiber Type | Connector Type In | Connector Type Out | Fiber |
Z=ZG P=PLC | 0104=1x4 | B=ABS Box | 1=900um loose tube 2=2mm cable 3=3mm cable | 0=no connector | 0=no connector | 10=1meter |
Example:ZP0102B2FAFU15
ZG TECH PLC Splitter, 1X4, ABS box type,2mm fiber, input FCAPC, Output FC/UPC, Fiber length 1.5 Meters.

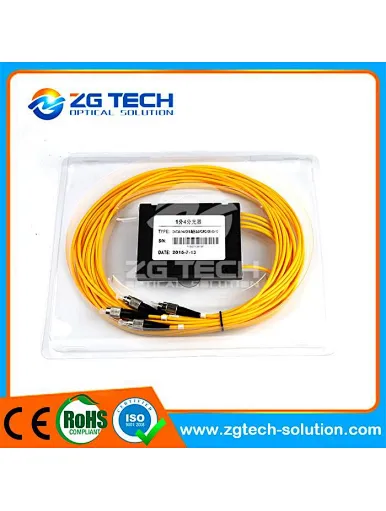

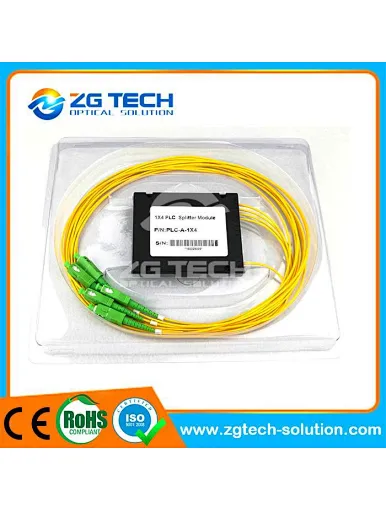

Packing Detail:
Method: Packed into blister box, 1 or 4pcs/box. then they will be packed into a master carton. It suitable for ABS box with or without connector.

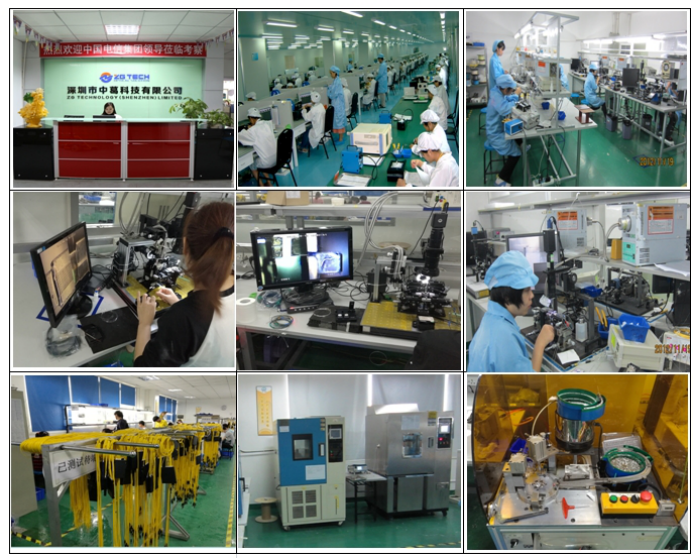

Company Information:
