ABS Module 2x64 PLC Splitter

Model NO. 2x64 PLC Splitter

Minimum order quantity: 1

As one of the leading abs module 2x64 plc splitter manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price abs module 2x64 plc splitter made in China. Welcome to visit our website.

Quantity

ABS module 2x64 PLC Splitter


Features	Applications
Low insertion loss and high uniform Low polarization loss High reliability	FTTX application CATV network Passive Optical Network(PON)

Performance Specifications:
ABS Module 2x64 PLC Splitter

Type		2x32
Operating Wavelength(nm)		1260~1650
Insertion loss (dB)	Typical	20.6
Insertion loss (dB)	Maximum	20.8
Uniformity (dB)	Maximum	2.0
Polarization Dependent Loss (dB)	Maximum	0.3
Return loss (dB)	Minimum	≥50
Directivity (dB)	Minimum	≥55
Operating temperature (℃)		-20 to75
Storage temperature (℃)		-40 to 85
Optical fiber type		SMF-28 Or the customer require
Optical fiber length (m)		1.0 or customize

Remarks:
ABS Module 2x64 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.
ABS Plastic Box Dimensions:
ABS Module 2x64 PLC Splitter

PLC Type

2x64

ABS BOX Pacakge

(mm)

141*118*18

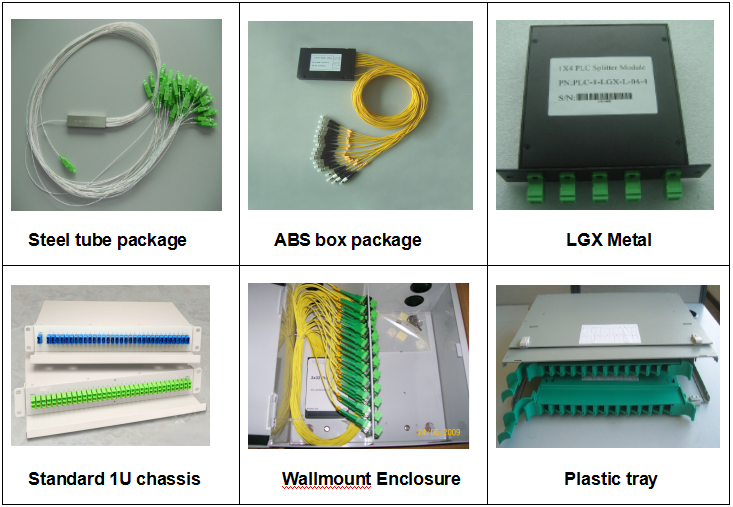

Package Drawing (Box Type)
ABS Module 2x64 PLC Splitter
