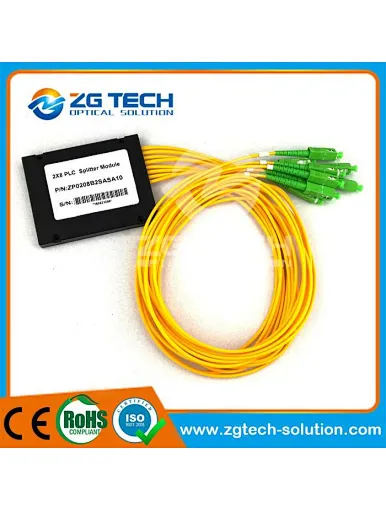

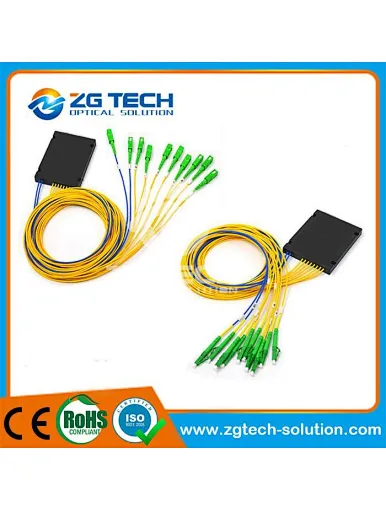

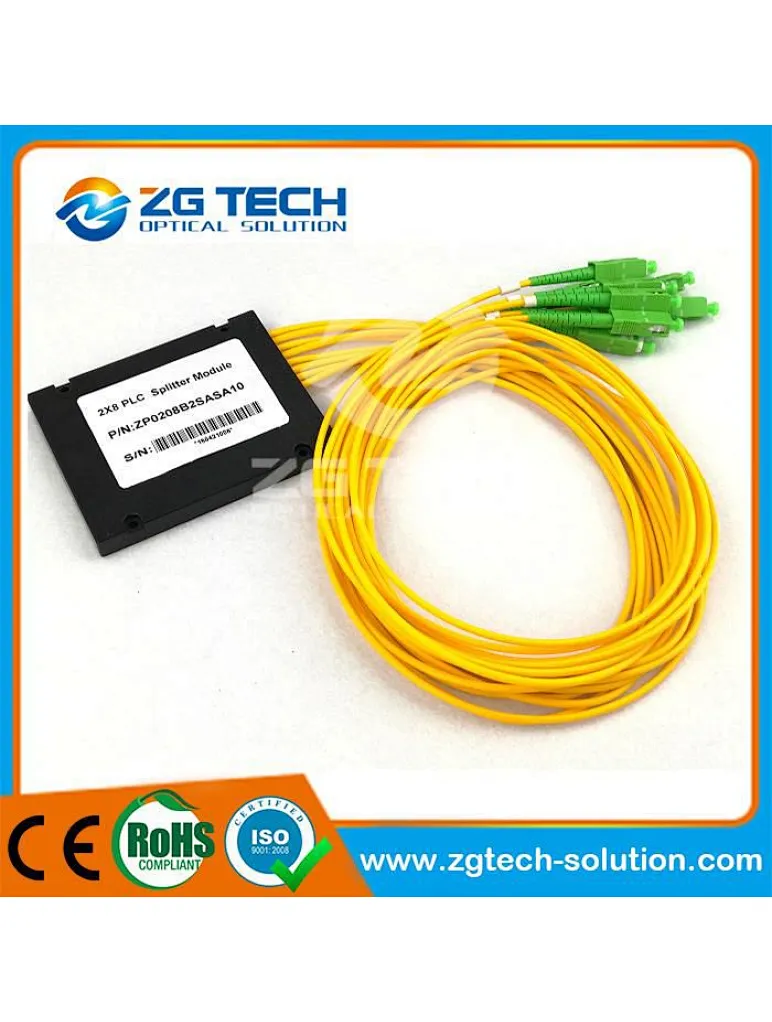

ABS module 2x8 PLC Splitter
ABS Module 2x8 PLC Splitter
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
ABS Module 2x8 PLC Splitter
Type | 2x8 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 10.8 |
Maximum | 11 | |
Uniformity (dB) | Maximum | 1.3 |
Polarization Dependent Loss (dB) | Maximum | 0.3 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
ABS Module 2x8 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.
ABS Plastic Box Dimensions:
ABS Module 2x8 PLC Splitter
PLC Type | 2x8 |
ABS BOX Pacakge (mm) | 100*80*10 |
Package Drawing (Box Type)
ABS Module 2x8 PLC Splitter

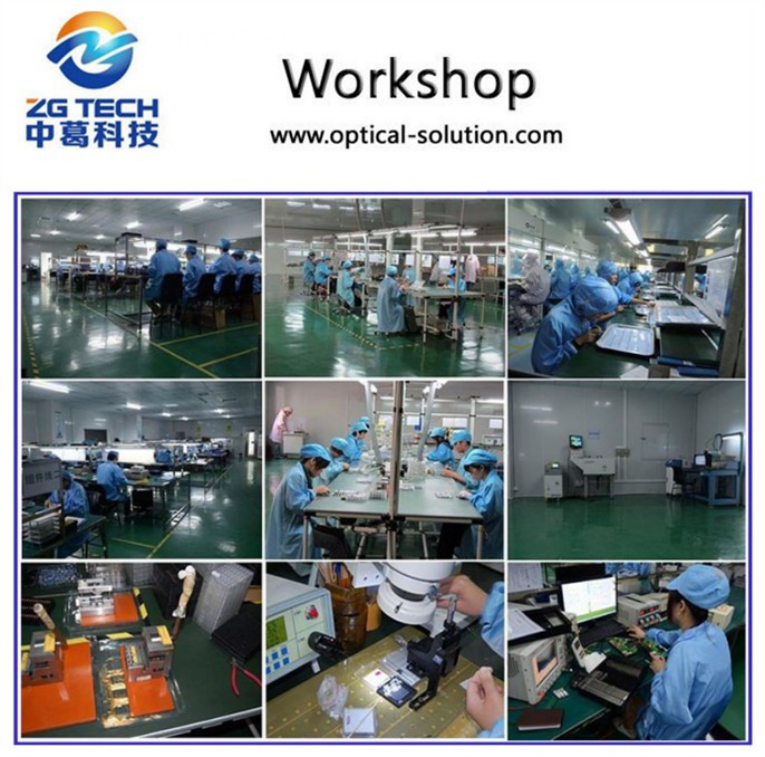

Company Information:
