Model NO. Armoured Fiber Optic Patch Cord

Quantity

As one of the leading Armoured Fiber Optic Patch Cord manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low-price Armoured Fiber Optic Patch Cord made in China. Welcome to visit our website.Armoured Fiber Optic Patch Cord, Armoured Fiber Optic Patch Cord,Armoured Fiber Optic Patch Cord...

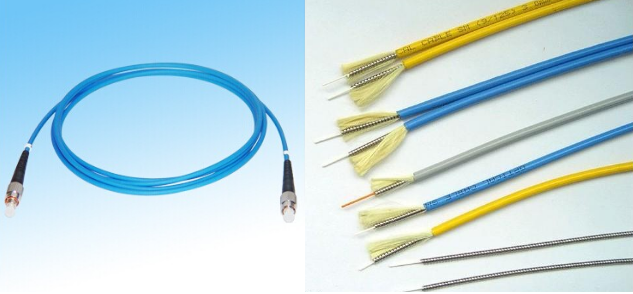

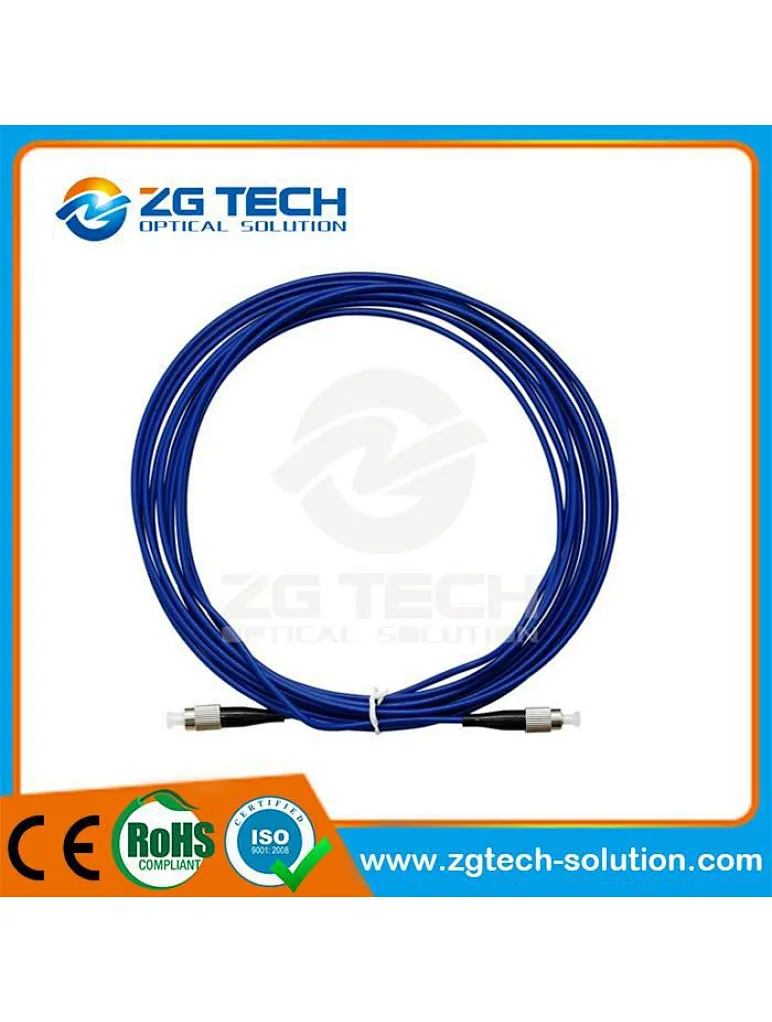

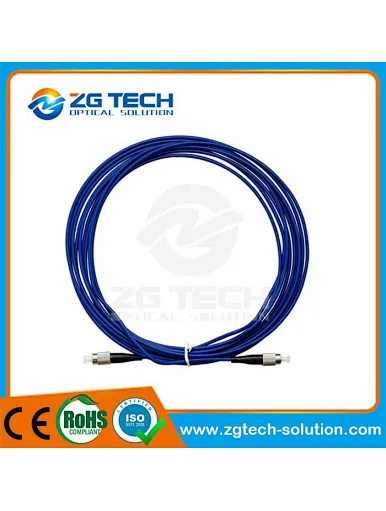

Armoured Fiber Optic Patch Cord

Armoured Fiber Optic Patch Cord

Features	Applications
Low insertion loss High return loss Good duplication, and interchangeability	Long-distance trunk network, Metro- area network, access network DWDM system, Optical fiber CATV Optical fiber data network

Performances Specifications

Parameter		FC, SC, LC			ST, MU MT-RJ, MPO		E2000
		SM			SM		SM
		PC	UPC	APC	PC	UPC	PC	APC
IL(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.3	≤0.2	≤0.3	≤0.3
RL	dB	≥45	≥50	≥60	≥45	≥50	≥55	≥75
Operating wavelength	nm	1310, 1510			1310, 1510		1310, 1510
Exchange ability	dB	≤0.2			≤0.2		≤0.2
Vibration	dB	≤0.2			≤0.2		≤0.2
Operating temperature	°C	-40~75			-40~75		-40~75
Storage temperature	°C	-45~85			-45~85		-45~85
diameter	mm	Φ3.0, Φ2.0, Φ0.9			Φ3.0, Φ2.0, Φ0.9		φ3.0, φ2.0, φ0.9

Ordering Information

OFC	Port 1		Port 2		Fiber type	dimension (Φ) mm
	Connector	End-face	Connector	End-face
	FC,SC ST,LC MU	PC, UPC APC	O: pigtail FC,SC ST,LC MU,E2000	O: pigtail PC,UPC APC	S=G.652 H=G.655 X= G.657 M=Multi mode (50/125) D=data (62.5/125)	09=0.9mm 20=2.0mm 30=3.0mm Duplex cable 22=2.0mm Duplex cable 00=Specify
