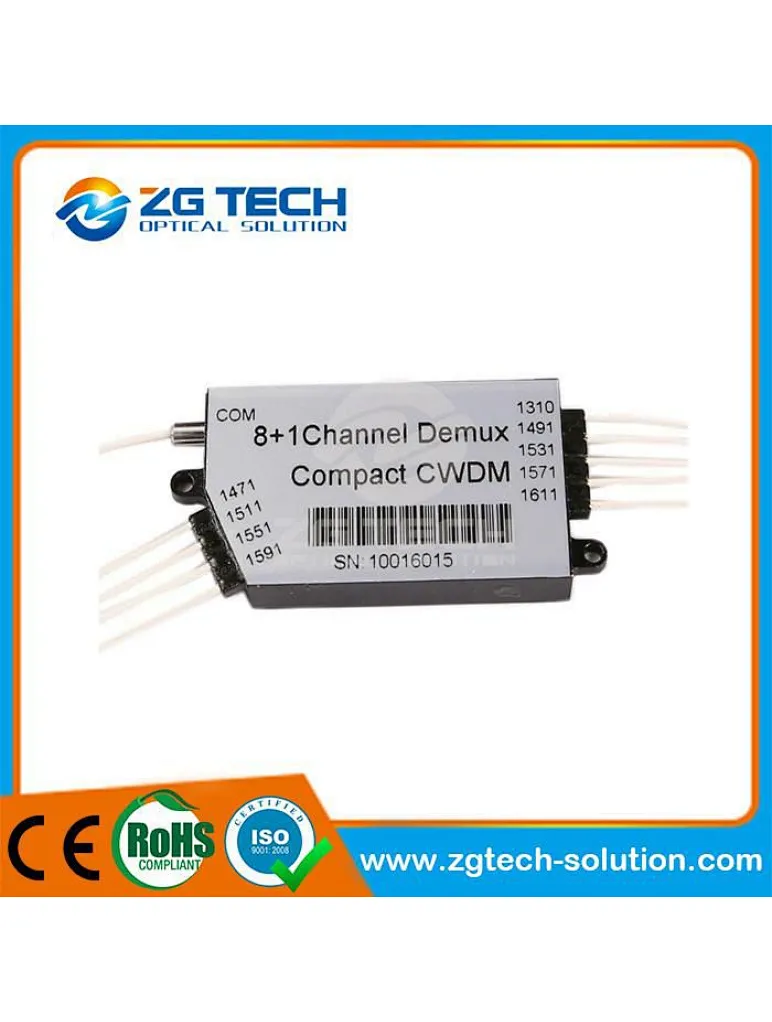

ZG TECH offers a full line fo 8x1Channel Compact CWDM MUX DEMUX DEMUX Modules based on optical bench platform(that consists of multiple filter collimator and substrate,wedges) to greatly reduce manufacturing cost and improve optical performance. And the operating wavelength is from 1270nm(1271nm) to 1610nm(1611nm). CCWDM, 8x1Channel Compact CWDM MUX DEMUX...
Features
8x1Channel Compact CWDM MUX DEMUX CCWDM
1. Epoxy Free in Optical Path
2. High Isolation
3. Low Optic Loss and Polarization Sensitivity
4. Compact Mini Size
5.Telcordia GR-1221 Qualified
Application
8x1Channel Compact CWDM MUX DEMUX CCWDM
1. CCWDM network in PON
2. CCWDM Upgrade in Metro Network
3. CATV
4. FTTH/FTTP
Performance Parameters
8x1Channel Compact CWDM MUX DEMUX CCWDM
Type | 8 Channel Mux/Demux | 8 Channel+1 Mux/Demux | |
Operating Wavelength range(nm) | 1270~1610 or 1271~1611 | ||
Center Wavelength Accuracy(nm) | ±0.5 | ||
Channel Spacing(nm) | 20 | ||
Channel Pass band (nm) | Channels | ±7.5/±6.5 | |
Express Port | N/A | 1310±50,or others specified | |
Insertion Loss (Max.dB) | 1.8 | ||
Channel Ripper( Max.dB) | 0.3 | ||
Fiber Type | Corning SMF-28e | ||
Isolation (Min.dB) | Adjacent | 30 | |
Non-adjacent | 40 | ||
Express Port | 15 | ||
Insertion Loss Temperature Sensitivity ( Max. dB/℃) | 0.005 | ||
PDL(Max.dB) | 0.15 | ||
Polarization Mode Dispersion( Max.dB) | 0.1 | ||
Directivity (Max.dB) | 50 | ||
Return Loss(Min.dB) | 45 | ||
Maximum Power Handing(mW) | 500 | ||
Operating Temperature(℃) | -5~+70 | ||
Storage Tmepreature(℃) | -40~+85 | ||
Package | 44(L)X28(W)X6(H), 44(L)X28(W)X7(H) or 53.8(L)X28(W)X8(H) | ||
8x1Channel Compact CWDM MUX DEMUX CCWDM
