Filter Type Polarization Maintain Coupler

Filter Type Polarization Maintain Coupler
Filter Type Polarization Maintain Coupler
Filter Type Polarization
As one of the leading filter type polarization maintain coupler manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price filter type polarization maintain coupler made in China. Welcome to visit our website.
Quantity

Filter Type Polarization Maintain Coupler
As one of the leading Filter Type Polarization Maintain Couplermanufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price filter type polarization maintain coupler made in China. Welcome to visit our website.

Filter Type Polarization Maintain Coupler/Filter Type Polarization Maintain Coupler

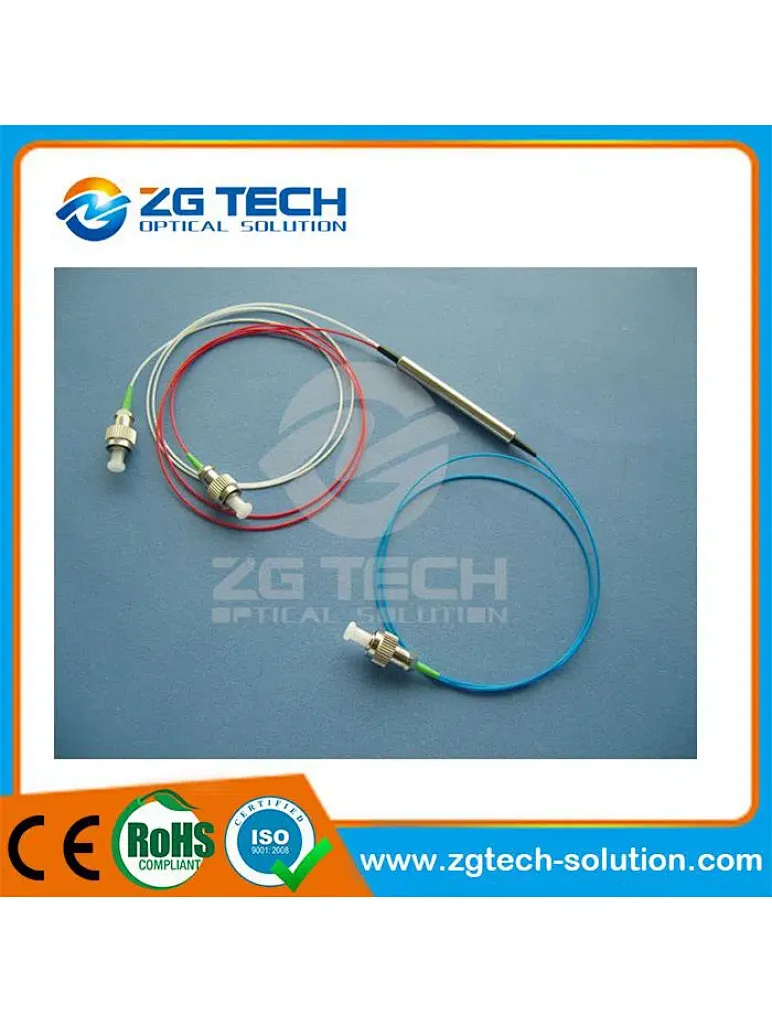

The PMC is a polarization maintaining coupler which either splits the light from the input PM fiber into two output PM fibers, or combines light signals from two PM fibers into a single PM fiber. The state of polarization can be aligned either with the slow axis or the fast axis of the PM fibers. The device can be used to split high power linearly polarized light into multiple paths without perturbing the linear state of polarization (SOP).It can also be used as a power tap to monitor signal power in a PM fiber system without disturbing the linear SOP of light propagating in the PM fiber. Applications include PM fiber interferometers, power sharing in polarization sensitive systems, and signal monitoring in PM fiber systems. The rugged stainless steel package is designed for high optical performance and stability. This compact device offers low excess insertion loss, low back reflection, and high extinction ratio. Split ratios from 1 to 50% are available.

Filter Type Polarization Maintain Coupler

Filter Type Polarization Maintain Coupler
Performance Specifications

Type

1X2

2X2

Max. Excess Loss

0.7dB

1.0dB

Max. Uniformity

0.6dB

0.8dB

Min. Extinction Ratio

20dB

18dB

Operating Center Wavelength

1550nm,1310nm

Operating Bandwidth

±40nm

Return Loss

50dB

Split Ratio

1~50%

Optical Power Handling

300 mw min

Operating Temperature

0~70℃

Storage Temperature

-40~85℃

Fiber Type

PM Panda fiber

Dimensions

¢5.5X42mm

Filter Type Polarization Maintain Coupler
Ordering Information:

PMC

Type

Grade

Wavelength

Split ratio

Connector type

0102=1×2
     0202=2×2

P
     A

13=1310nm
     15=1550nm

01=1%
     50=50%

01=FC/PC
     02=FC/APC
