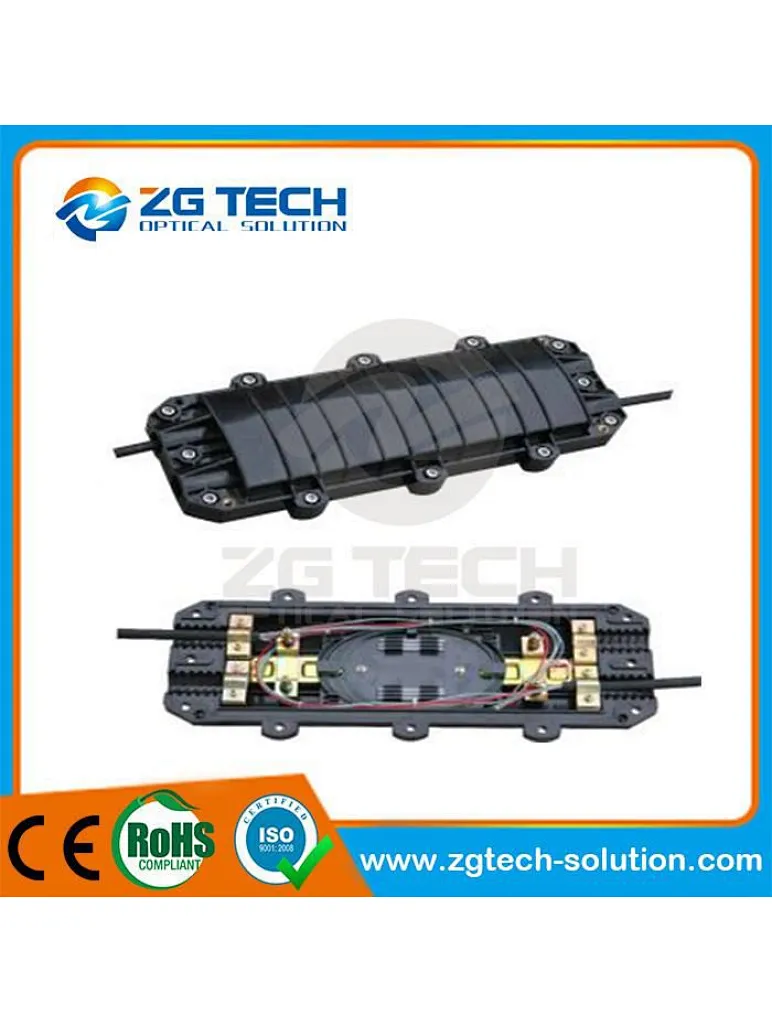

Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
Product Features:
GJS(04) series provide suitable for cable whose diameter is 10-23mm,they can be used in aerial, duct, and direct buried application; These products are made of the high quality material and with the mechanical sealing structure filled with the sealing material.
The external components and fastening parts are all made of stainless steel, it can be reopened and reused without changing sealing material.
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere

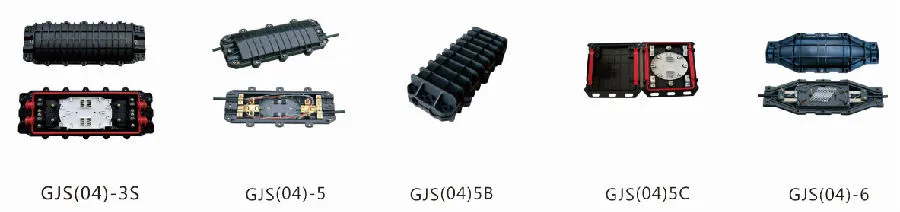

Item No. | Size(mm) | Cable diameter(mm) | Capacity of splice tray | Cable port | Max capacity(single fiber) | Sealing structure |
GJS(04)-1 | 435x190x85 | 10-17 | 24 | 4 | 96 | Sticky cincture |
GJS(04)-2 | 435x190x120 | 10-22 | 24 | 4 | 168 | Sticky cincture |
GJS(04)-3 | 435x190x120 | 10-22 | 24 | 4 | 193 | Sticky cincture |
GJS(04)-3PB | 435x190x120 | 10-22 | 24 | 4 | 144 | Sticky cincture |
GJS(04)-5 | 435x190x80 | 10-17 | 24 | 4 | 96 | Sticky cincure |
GJS(04)-5B | 350x145x90 | 10-22 | 12 | 4 | 48 | Sticky cincture |
GJS(04)-5C | 200x220x42 | 10-12 | 16 | 4 | 16 | Sticky cincture |
GJS(04)-3Y | 460x180x120 | 10-22 | 24 | 4 | 144 | Sticky cincture |
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
FAQ
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We can ship by DHL, UPS, FedEx or TNT and cargo agent. It usually takes 3-5 days to arrive. Sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Gjs-4Series 2 IN 2 Out Horizontal Type Splice Closurere
