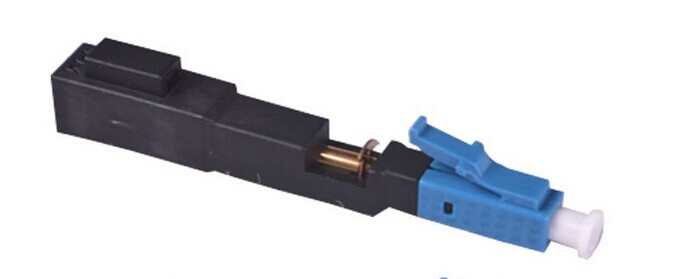

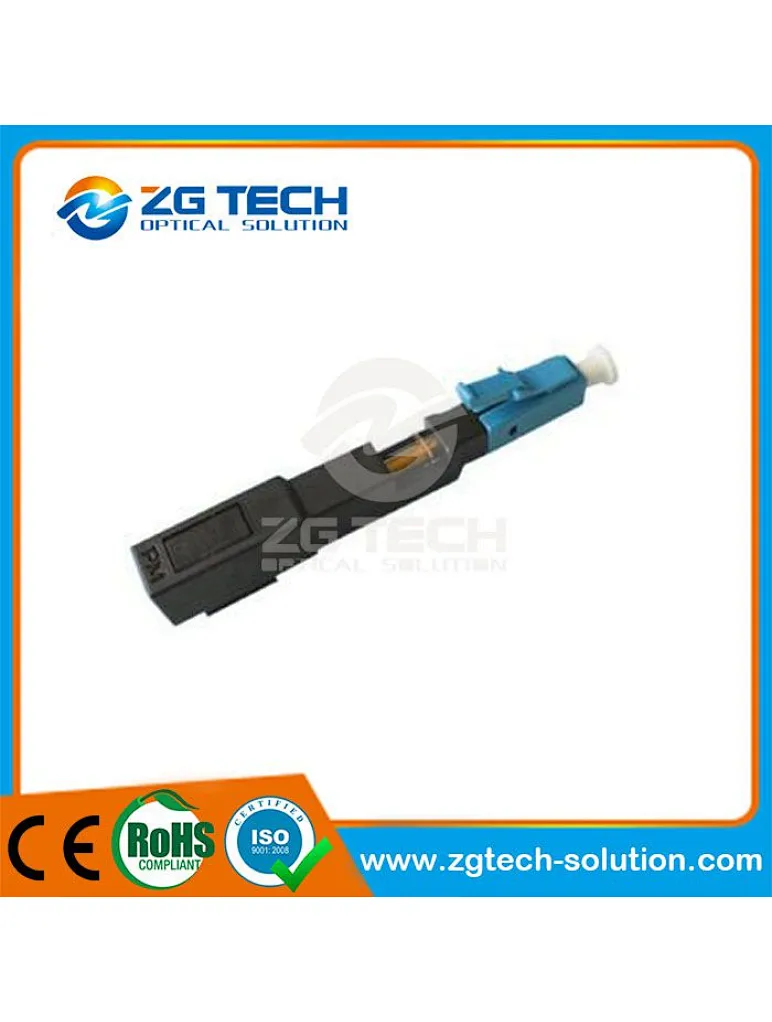

LC Fiber Optic Fast Connector
Introduction
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.adopted fiber pre-installed structure, and convenient for field installation.
LC Fiber Optic Fast Connector
Feature:
1.precise mechanical dimensions
2.low insertion loss, high return loss
3.comply standard of IEC61754-4
4.Repeatable times is no less than 50 times;
5.Long life span design, more than 30 years.
6.ROHS compliant
Application:
1.Premise environments
2.Connections at the desk for LAN environments
3.Patch panels
4.Direct equipment termination
5.Fiber to the Subscriber (FTTH) applications
6.Repair/replacement requirements
7.Equipment test leads
LC Fiber Optic Fast Connector
Datasheet:
ITEM | Technical Parameters |
Applicable for | 3.1×2.0mm Drop cable,3.0/2.0cable |
Optical fiber diameter | 125μm |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 10s(no fiber cut) |
Insert loss | ≤0.3dB(1310nm &1550nm) |
Return loss | ≤-40dB |
Fastening strength of naked fiber | 5N |
Fastening strength of naked fiber holder | 10N |
Tensile strength | 50N |
Using temperature | -45~+80°C |
On-ling tensile strength(20N) | IL≤0.2dB RL≤5dB |
Mechanical durability(500 times) | IL≤0.2dB RL≤5dB |
Drop-off test(drop-off height 4m,once per direction,totally 3 times) | IL≤0.2dB RL≤5dB |
LC Fiber Optic Fast Connector

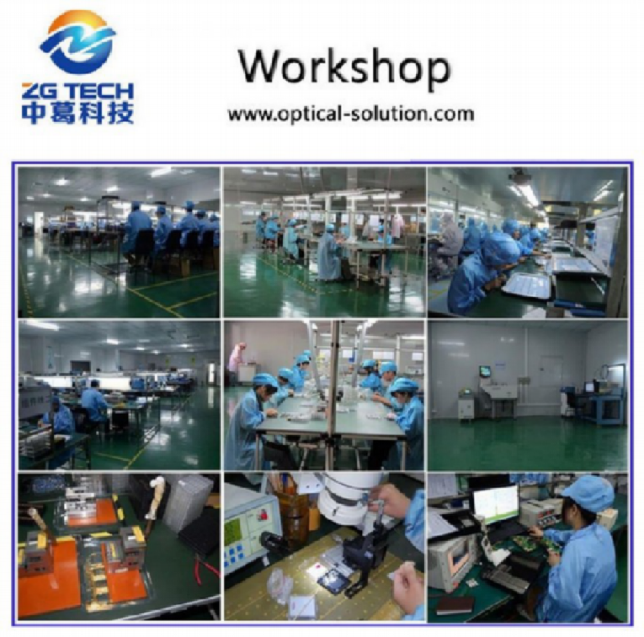

Company information:
LC Fiber Optic Fast Connector
Install Instruction:
