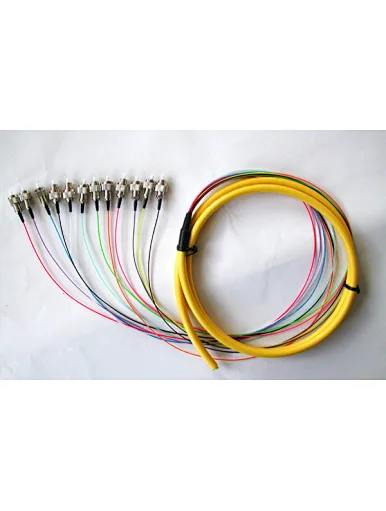

Multi-Core Fiber Optic Pigtail Jumper

Fiber Optic Pigtail
Multi-Core Fiber Optic Pigtail Jumper
Multi-Core
As one of the leading multi-core fiber optic pigtail manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price multi-core fiber optic pigtail made in China. Welcome to visit our website.
Quantity

As one of the leading multi-core Fiber Optic Pigtail manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low-price multi-core Fiber Optic Pigtail made in China. Welcome to visit our website.Fiber Optic Pigtail,Fiber Optic Pigtail,Fiber Optic Pigtail...

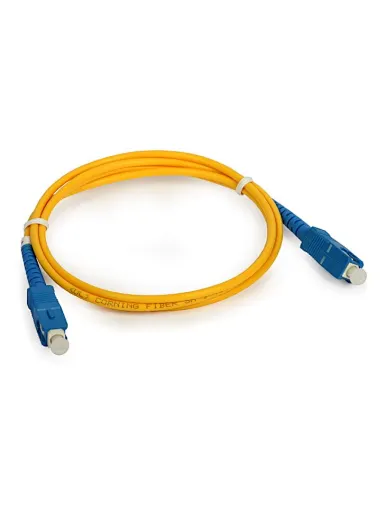

Single Mode Fiber Optic Pigtail

Fiber Optic Pigtail

Features

Applications

Low insertion loss
High return loss
Good duplication, and interchangeability

Long-distance trunk network,
Metro- area network, access network
DWDM system, Optical fiber CATV
Optical fiber data network

Performances Specifications

Parameter

FC, SC, LC

ST, MU
     MT-RJ, MPO

E2000

SM

MM

SM

 MM

SM

PC

UPC

APC

 PC

PC

UPC

 PC

PC

APC

IL(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

 ≤0.2

≤0.3

≤0.3

RL

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

Exchange
     ability

dB

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

diameter

mm

Φ3.0, Φ2.0, Φ0.9

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

Ordering Information:
1.Connector Type: SC/LC/ST/FC/MU various connectors available
2.End-face: PC/UPC/APC
3.Fiber Type: G652D/G657A  Material PVC or LSZH
4.Cable Diameter: 900um, 2.0mm, 3.0mm
5.Core Qty: Simplex/Duplex, 4cores, 8cores, 12cores, 24cores available
6.Length: Customized
