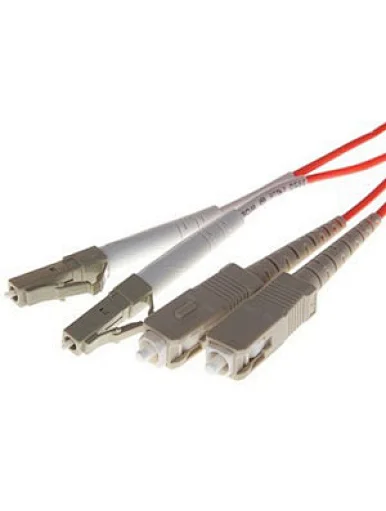

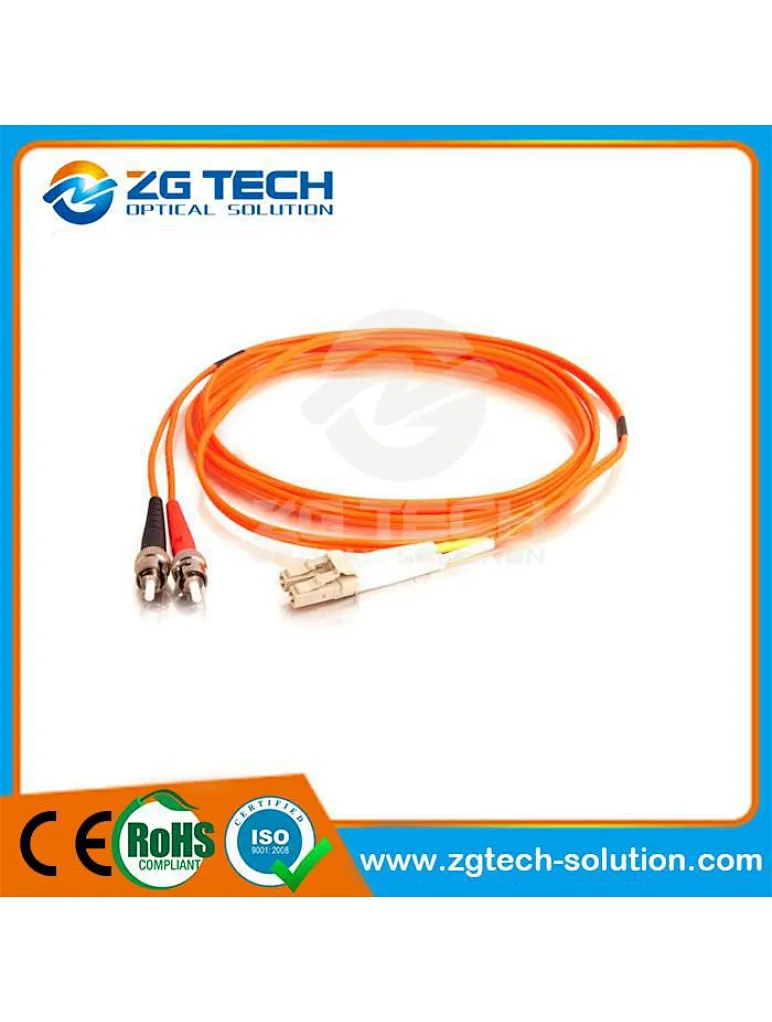

Multimode Fiber Optic Patch Cord
Features | Applications |
Low insertion loss | Long-distance trunk network, |

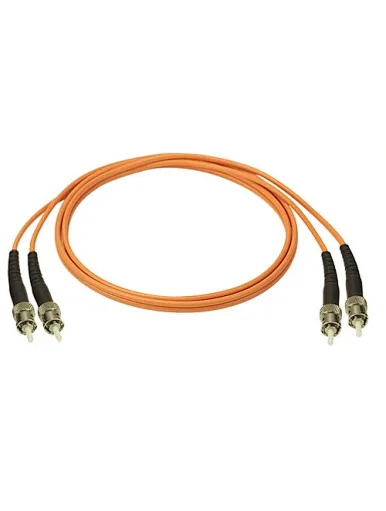

Multimode Fiber Optic Patch Cord
Performances Specifications
Parameter | FC, SC, LC | ST, MU | ||||||||
SM | SM | |||||||||
PC | UPC | APC | PC | UPC | ||||||
IL(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ||||
RL | dB | ≥45 | ≥50 | ≥60 | ≥45 | ≥50 | ||||
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | |||||||
Exchange | dB | ≤0.2 | ≤0.2 | |||||||
Vibration | dB | ≤0.2 | ≤0.2 | |||||||
Operating temperature | °C | -40~75 | -40~75 | |||||||
Storage temperature | °C | -45~85 | -45~85 | |||||||
diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | |||||||
Ordering Information:
1.Connector Type: SC/LC/ST/FC/MU various connectors available
2.End-face: PC/UPC/APC
3. Fiber Type: 50/125um,62.5/125um, OM/OM2/OM3/OM4 Material PVC or LSZH
4.Cable Diameter: 900um, 2.0mm, 3.0mm
5.Core Qty: Simplex/Duplex, 4cores, 8cores, 12cores, 24cores available
6. Length: Customized

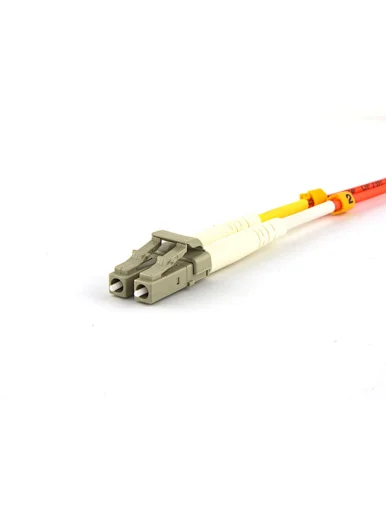

Multimode Fiber Optic Patch Cord

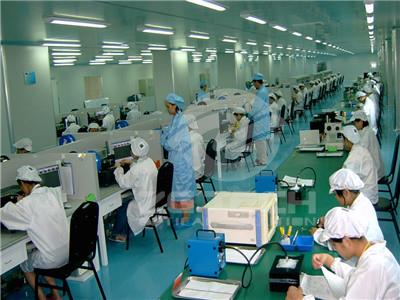

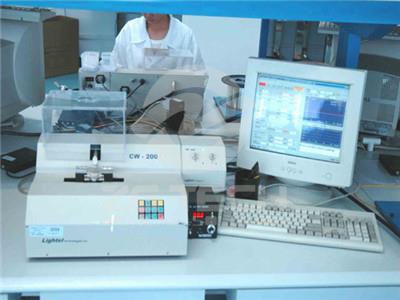

Company information:

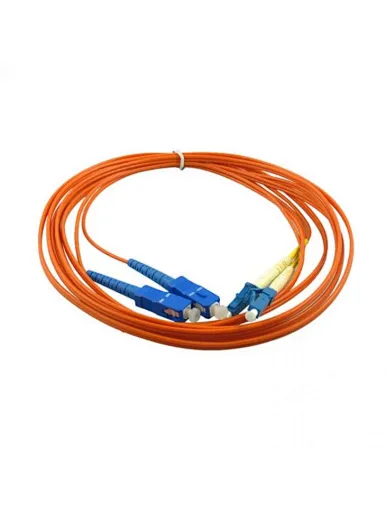

Multimode Fiber Optic Patch Cord
Certification:
More 3rd party product testing report will be support when contact with ZG TECH.
