As one of the leading Outdoor Waterproof Duplex LC-LC Patch Cord manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price Outdoor Waterproof Duplex LC-LC Patch Cord made in China. Outdoor Waterproof Duplex LC-LC Patch Cord。 Please refer to the parameters of the Patch Cord described below.

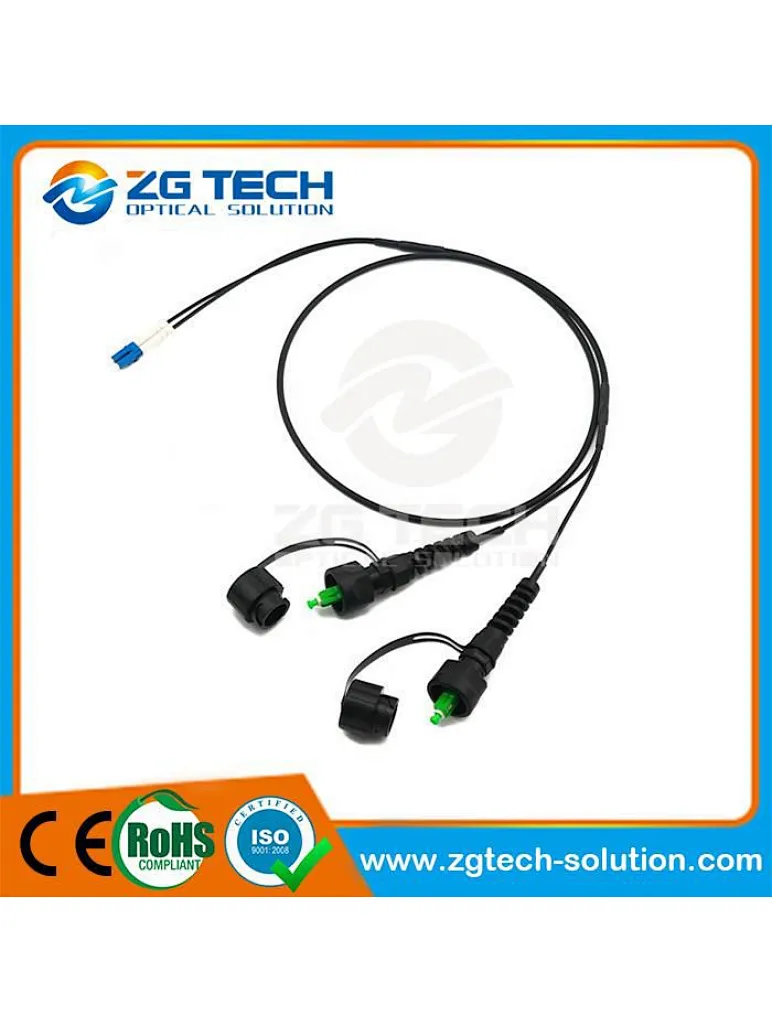

Outdoor Waterproof Duplex LC-LC Patch Cord
Patch Cord Specification
1. Model
Model：Patch Cord ODLC/XX-LXX-D7.0
Description： The structure of the Outdoor Connector RRU side (Side A) is:
ODLC Waterproof Components and duplex LC Connector, BBU side (Side B) is XX Connector (FC/SC/DLC). LXX means the cable length is XX M (in meters only). D7.0 means outdoor cable with an outer diameter of 7.0mm.
2. Structure

                                                                                                                          Structure of RRU Waterproof Components
①Outer Jacket ②Inner Jacket ③Laminated Sheath
④LC connector and duplex clip ⑤Sealing Cover

                                                                                                                               Assembled Waterproof Components
To make the product meet the requirements of outdoor operation, we choose PA66 for  Outer  Jacket.  Original materials have passed the  UV  test  (  as shown in Appendix 1), the Thermal Cycle Test, and other correlative tests.

                                                                                                                                            Inner Jacket
The Inner Jacket is excellent in waterproof performance, compliant with IP67( Close the Sealing Cover, then keep it in one-meter deep water for half an hour. Afterwards, find no water in the jacket.) and meets the requirement of outdoor waterproof level.
Outdoor Waterproof Duplex LC-LC Patch Cord
3. Performance
4. Structure of Cable
1.) Structure

2.) Fiber Type： G652D
3.) Material of Jacket： LZSH
4.) Strength member and filler of simplex cable： Kevlar
5. Corresponding Relationship

6. Environmental Requirements
Compliant with: RoHS
Individual package with Operation Card for each product and Instruction
for each carton, 2M products should choose neutral packing without a spool.

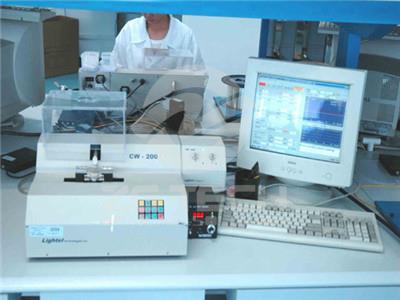

Our Workshop:

Outdoor Waterproof Duplex LC-LC Patch Cord
Company information:

Outdoor Waterproof Duplex LC-LC Patch Cord
Certification:

More 3rd party product testing report will be support when contact with ZG TECH.

Exihibition:
