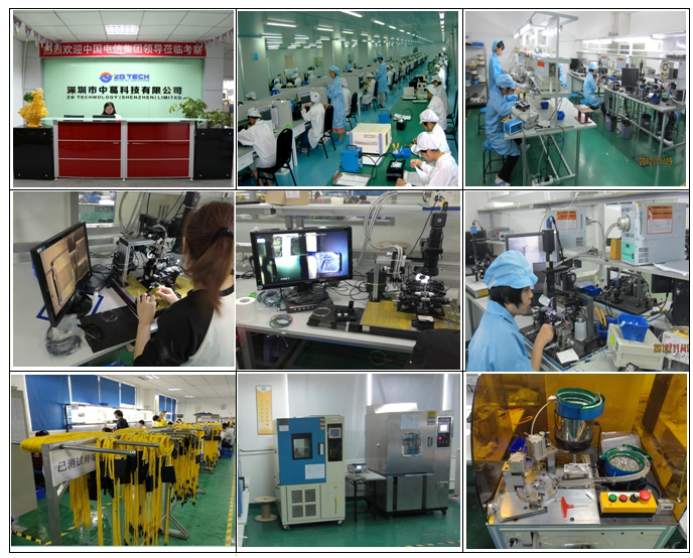

As one of the leading single mode 1310/1550nm WDM Fiber manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price single mode 1310/1550nm WDM Fiber, single mode 1310/1490nm WDM Fiber made in China. Welcome to send us inquiry of 1310/1550nm WDM Fiber.

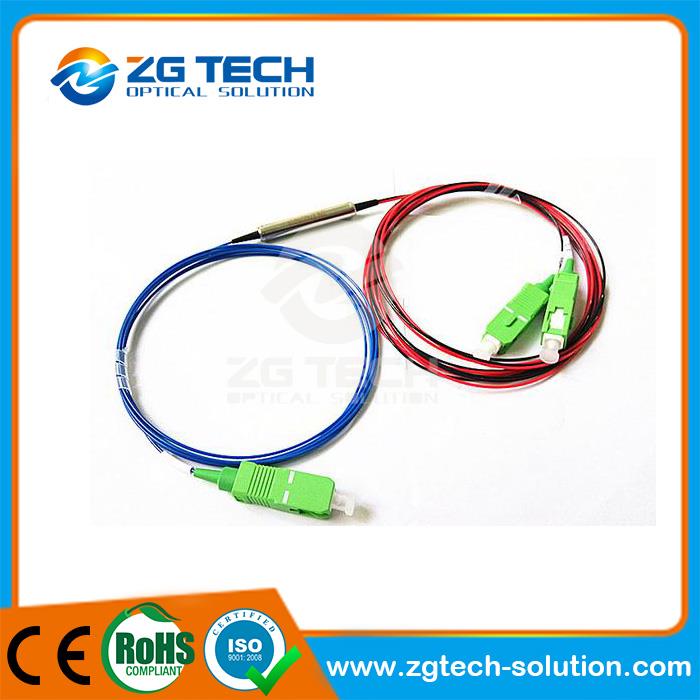

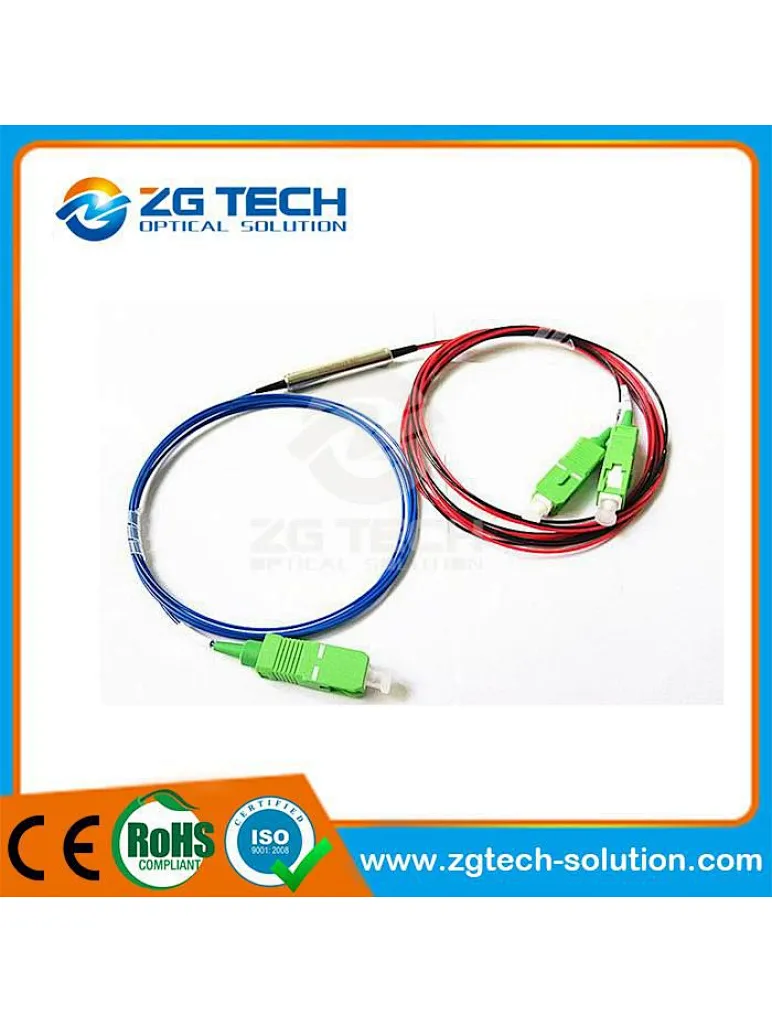

1310/1550nm WDM Fiber, Single Mode 1310/1550nm WDM Fiber
Applications | Features |
Fiber optic metro networks | Low insertion loss, High isolation |
1310/1550nm WDM Fiber
Performance Specifications
Parameter | FWDM-35/53 | FHWDM-35/53 | |
Pass Channel Wavelength Range (nm) | 1420 ~ 1620nm (or 1260~ 13600nm) | ||
Reflect Channel Wavelength (nm) | 1260 ~ 1360nm (or 1420~ 1620nm) | ||
Insertion Loss (dB) | Reflect Channel | <0.5 | <08 |
Pass Channel | <0.6 | <08 | |
Insertion Loss Variation(dB) | <0.3 | ||
Isolation | Reflect Channel | >12 | >25 |
Pass Channel | >30 | >45 | |
Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
Polarization Dependent Loss (dB) | <0.1 | ||
Polarization Mode Dispersion (ps) | <0.1 | ||
Directivity (dB) | >60 | ||
Return Loss (dB) | >45 | ||
Maximum Power Handling (mw) | 300 | ||
Operating Temperature (°C) | 0 ~+65 | ||
Storage Temperature (°C) | -40 ~+85 | ||
Package Dimension (mm) | 5.5 x L35(250um); 5.5xL38 (900um) | ||
Specifications may change without notice
Ordering Information
FWDM | Wavelength | Fiber Type | FiberLength | Connector |
S | 35=1310 pass | 1=Bare Fiber | 1=1 Meter | 0=None |
