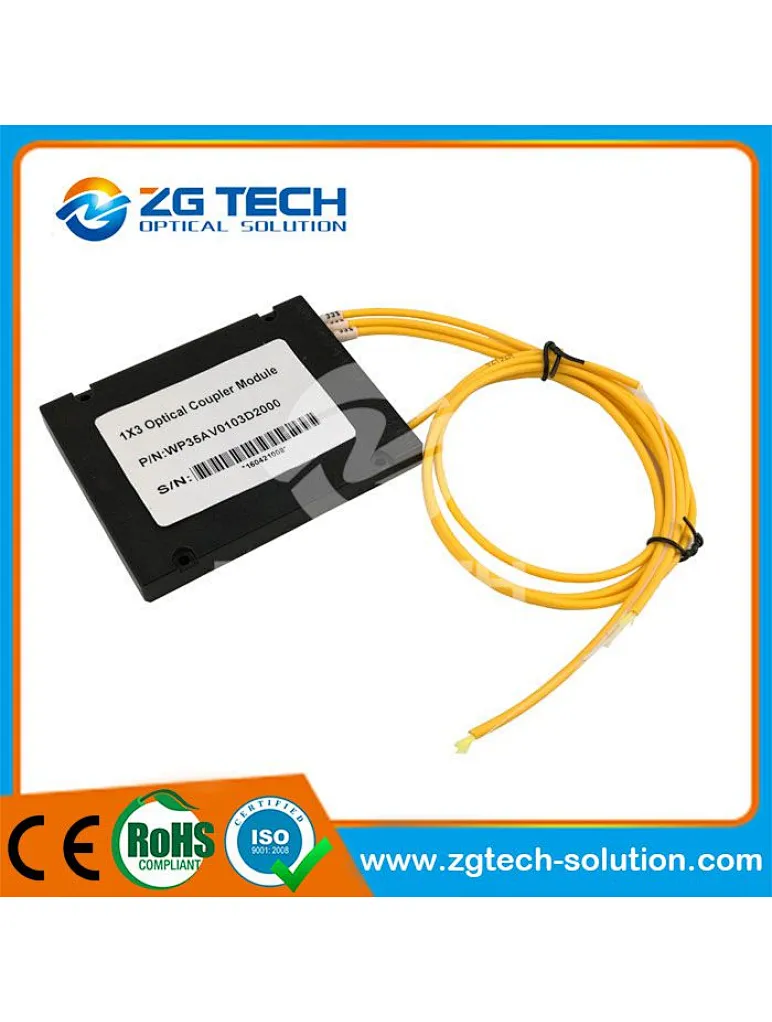

Single Mode Dual Window 1x3 Fiber Coupler

Fiber Coupler
Single Mode Dual Window 1x3 Fiber Coupler
Single Mode Dual Window 1x3 Fiber Coupler
1
As one of the leading Single Mode Dual Window FBT Coupler manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price Single Mode Dual Window FBT Coupler made in China.
Quantity

As one of the leading Single Mode Dual Window 1x3 Fiber Coupler manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price Single Mode Dual Window 1x3 Fiber Couple made in China. Single Mode Dual Window Fiber Coupler...

Single Mode Dual Window Fiber Coupler

Applications

Features

Optical fiber test system

Telecommunication system

Luminous power feedback

Low insertion loss

High directivey

Compact size

Extremely good stability and reliability

Fiber Coupler

Single Mode Dual Window 1x3 Fiber Coupler
Performance Specifications

Coupling ratio

33:33:33

Operating wavelength

nm

1310 / 1550±40

Port numberss

1×3

Grade

P

A

Excess loss

dB

0.2

0.3

Max insertion loss

dB

5.6

6.0

Max polarization indepedent loss

dB

0.25

0.30

Max uniformity

dB

1.2

1.8

Mini return loss

dB

55

Operating temperature

-10~+70

Storage temperature

-40~+85

Dimensions

mm

B=Φ3×60 for bare fiber

L=Φ3.5×70 for 900um loose tube

All data do not contain the connector loss

Fiber Coupler Ordering Information

SLC

Wavelength

Grade

Structure

Coupling Ratio

Package

Fiber Length

Fiber Type

Connector Type

35=1310/1550

P=P Grade
     A=A Grade

3=1*3

00=Even


L

1=1m
     0=others

1=SMF-28
     0=Others

0=None
     1=FC/SPC
     2=FC/PC
     3=FC/APC
     4=SC/SPC
     5=SC/PC
     6=SC/APC
 7=ST
     8=Others

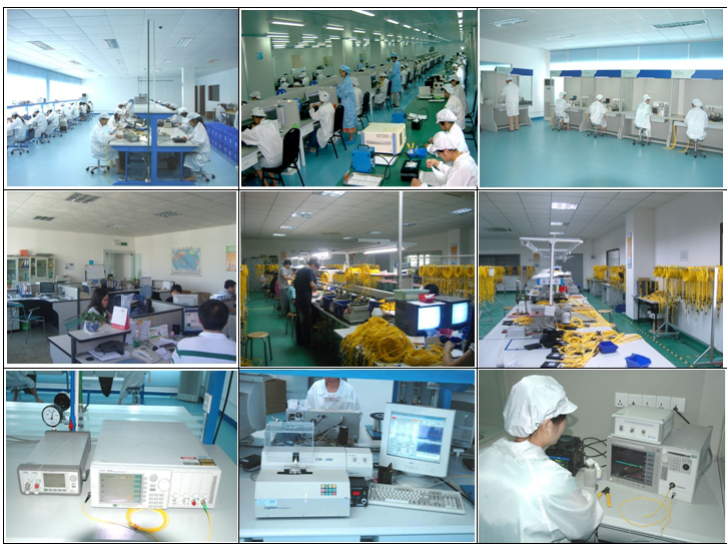

Company information:
