As one of the leading single mode sc fiber optic Pigtail manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price single mode sc fiber optic Pigtail made in China. Welcome to visit our website.Pigtail, Pigtail...

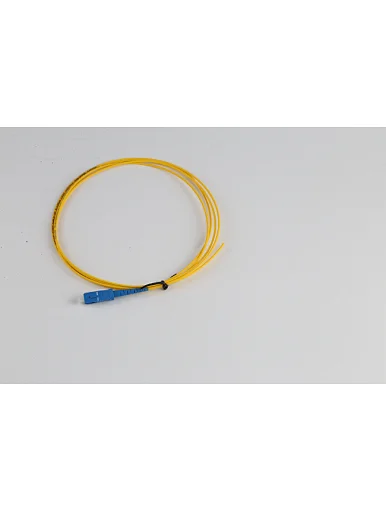

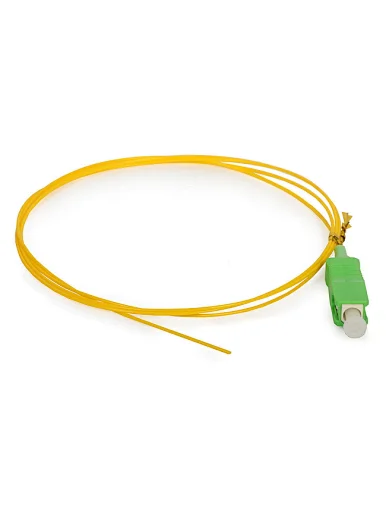

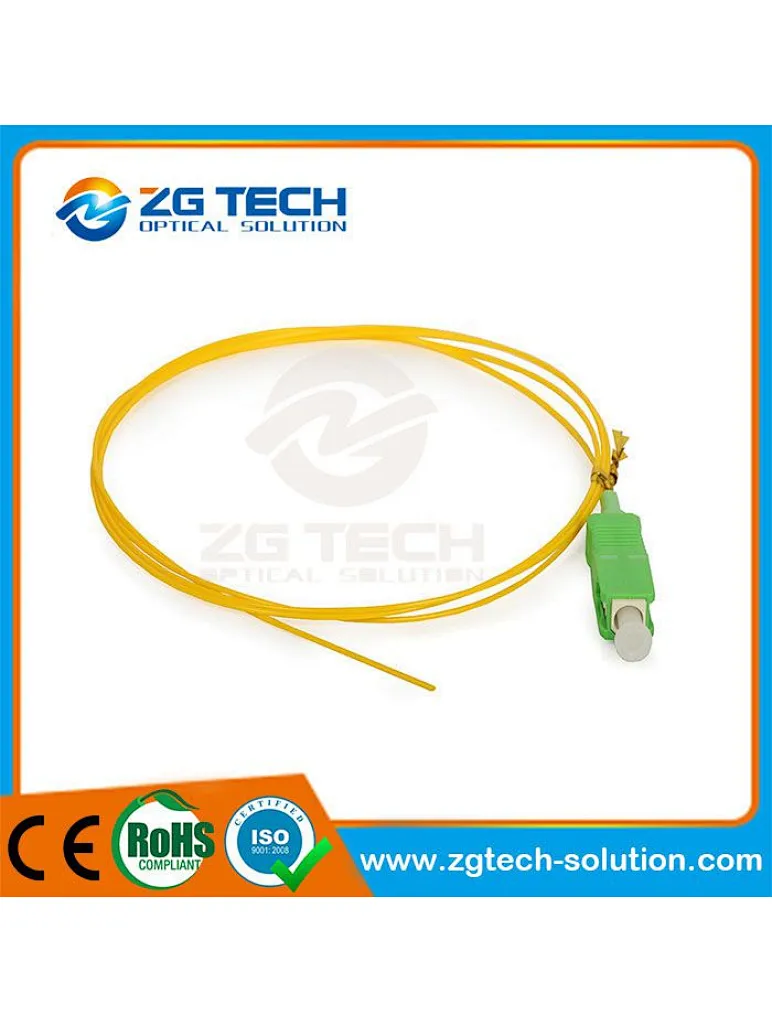

Single Mode Fiber Optic Pigtail
Features | Applications |
Low insertion loss | Long-distance trunk network, |
Performances Specifications
Parameter | FC, SC, LC | ST, MU | E2000 | |||||||
SM | SM | SM | ||||||||
PC | UPC | APC | PC | UPC | PC | APC | ||||
IL(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ||
RL | dB | ≥45 | ≥50 | ≥60 | ≥45 | ≥50 | ≥55 | ≥75 | ||
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||
Exchange | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||
Ordering Information:
1.Connector Type: SC/LC/ST/FC/MU various connectors available
2.End-face: PC/UPC/APC
3. Fiber Type: G652D/G657A Material PVC or LSZH
4.Cable Diameter: 900um, 2.0mm, 3.0mm
5.Core Qty: Simplex/Duplex, 4cores, 8cores, 12cores, 24cores available
6. Length: Customized

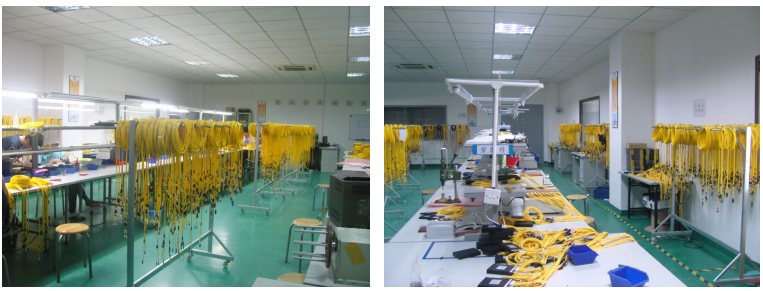

Our workshop:
