Tray type 1x16 PLC Splitter
Products Overview:
Tray Type 1x16 PLC Splitter
ZG Tech's Tray Type 1x16 PLC Splitte, is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
Tray Type 1x16 PLC Splitter
Type | 1x16 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 13.6 |
Maximum | 13.8 | |
Uniformity (dB) | Maximum | 1.0 |
Polarization Dependent Loss (dB) | Maximum | 0.2 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
Tray Type 1x16 PLC Splitter
Tray Type 1x16 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

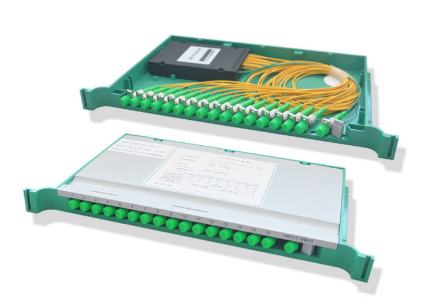

Tray Splitter Package Pictures:
Tray Type 1x16 PLC Splitter
Ordering Information:
Tray Type 1x16 PLC Splitter
ZP | Channel | Package Type | Fiber Type | Connector Type In | Connector Type Out | Fiber |
Z=ZG TECH P= | 0116=1x16 | R=19inch Rack Mount | 1=900um loose tube 2=2mm cable 3=3mm cable | 0=no connector | 0=no connector | 06=0.6mter 10=1meter |

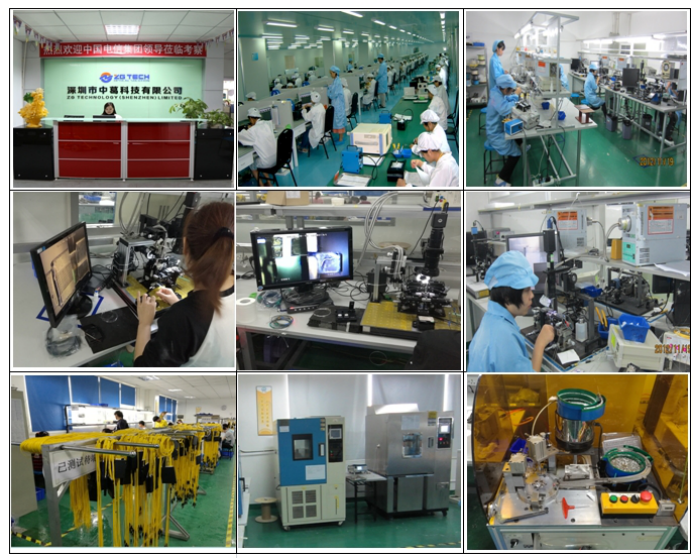

Company Information:
