Faraday Rotating Mirror: The Black Technology of "Time Reversal" in the Optical Communication Industry

1.The dilemma of reflected signals

In high-speed optical communication systems, reflected signals are difficult to eliminate like stubborn echoes. Even with the most sophisticated connectors, optical signals will still experience varying degrees of reflection during transmission. These reflected signals constantly interfere with the transmission quality of the original signal, becoming one of the main obstacles to improving communication performance.

2.Revolutionary solution

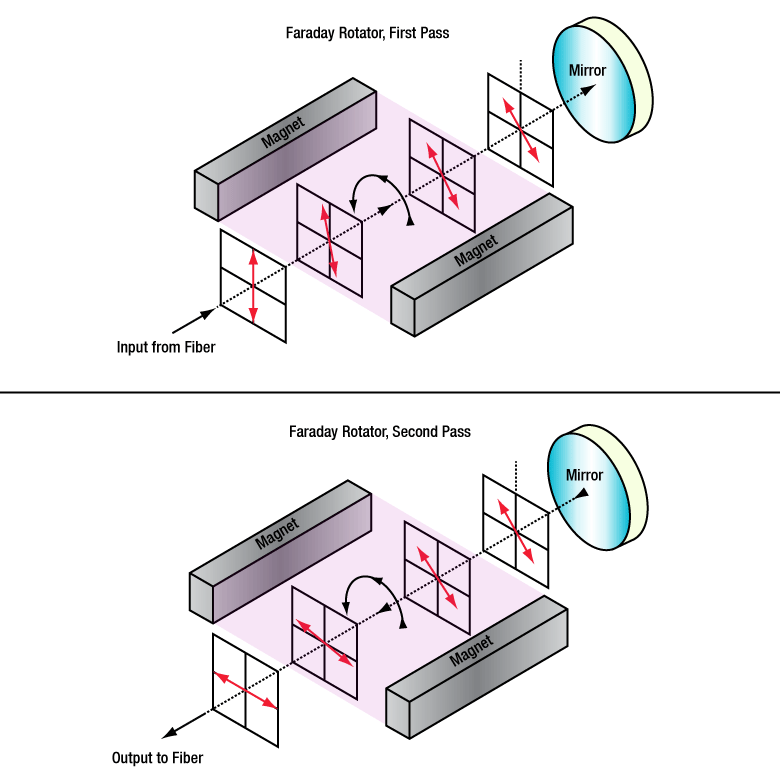

The emergence of Faraday's rotating mirror completely changed this situation. This technology is based on the magneto-optical effect discovered by Michael Faraday in 1845, and achieves the "time reversal" effect of optical signals through clever design. The core working principle is that linearly polarized light first passes through magneto-optical materials such as yttrium iron garnet (YIG), and the polarization plane rotates 45 degrees under the action of a strong magnetic field; After mirror reflection, it passes through the magneto optic material again, and the polarization plane continues to rotate by 45 degrees. In this way, the total rotation angle of the reflected light reaches 90 degrees, which is completely orthogonal to the polarization direction of the incident light, and is effectively isolated by the polarization beam splitter in the system. This non reciprocal optical property makes Faraday rotating mirrors an ideal solution for solving reflection problems.

3.Excellent performance

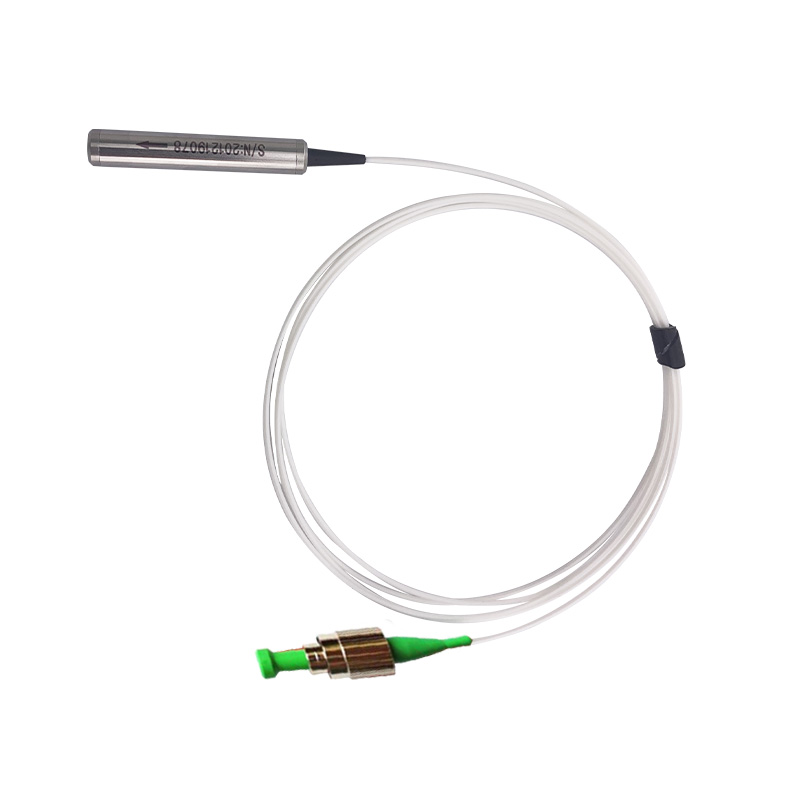

Actual test data shows that Faraday rotating mirrors have astonishing performance advantages. It can suppress reflections to below -80dB, which is 100 times more optimized than traditional solutions. Its working bandwidth can reach ± 20nm, perfectly covering the C+L band, while maintaining excellent stability in a wide temperature range of -40 ℃ to 85 ℃. Specifically, our Faraday rotating mirror product adopts a specially designed temperature compensation magnetic circuit, and the fluctuation of polarization rotation angle in extreme temperature environments does not exceed 1 °/℃, with an insertion loss change of less than 0.4dB. These excellent features make it an ideal choice for high-end applications such as 5G fronthaul and quantum communication.

4.Key Applications of 5G and Underwater Communication

In 5G fronthaul networks, Faraday rotating mirrors play an irreplaceable role. According to the operator's actual test data, after adopting this technology, the bit error rate of 25Gbps eCPRI links can be significantly reduced from 1E-6 to 1E-12, which is equivalent to reducing the error rate by one million times and greatly improving network reliability. This performance breakthrough is mainly due to the effective suppression of cumulative reflections generated by the Faraday rotating mirror when multiple RRUs are connected in series, which fundamentally improves the signal transmission quality in 5G dense networking environments. Equally noteworthy is its application value in underwater communication systems. In transoceanic optical cables, deploying a Faraday rotating mirror every 200 kilometers can reduce 3dB of signal distortion. This improvement can directly extend the relay distance by 30-50% or increase the transmission rate by more than 20%, saving operators millions of dollars in deployment costs. Especially in the new generation of 400Gbps underwater communication systems, Faraday rotating mirrors have become one of the core components to ensure long-distance transmission performance, and their non reciprocal characteristics effectively solve the polarization mode dispersion problem that traditional solutions find difficult to overcome.

5.Professional technical support

We provide comprehensive technical consultation to assist clients in evaluating the application value of Faraday rotating mirrors. Welcome to contact our engineering team for more product details and successful cases, and explore the infinite possibilities of optical communication technology together.
