Fiber fusion machine: a key tool for connecting the digital world
First, the importance of fiber splicing machine

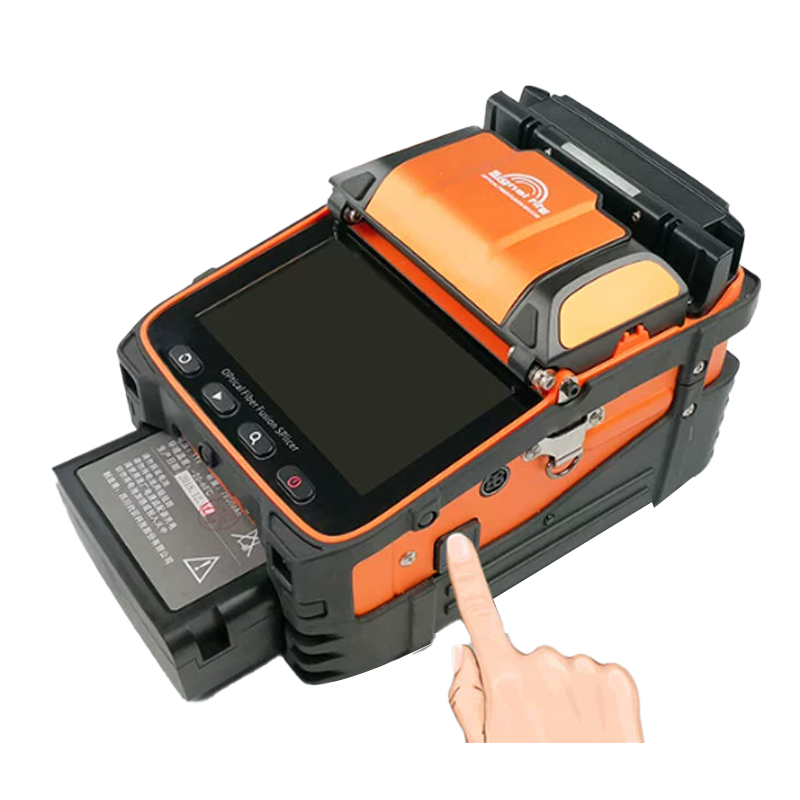

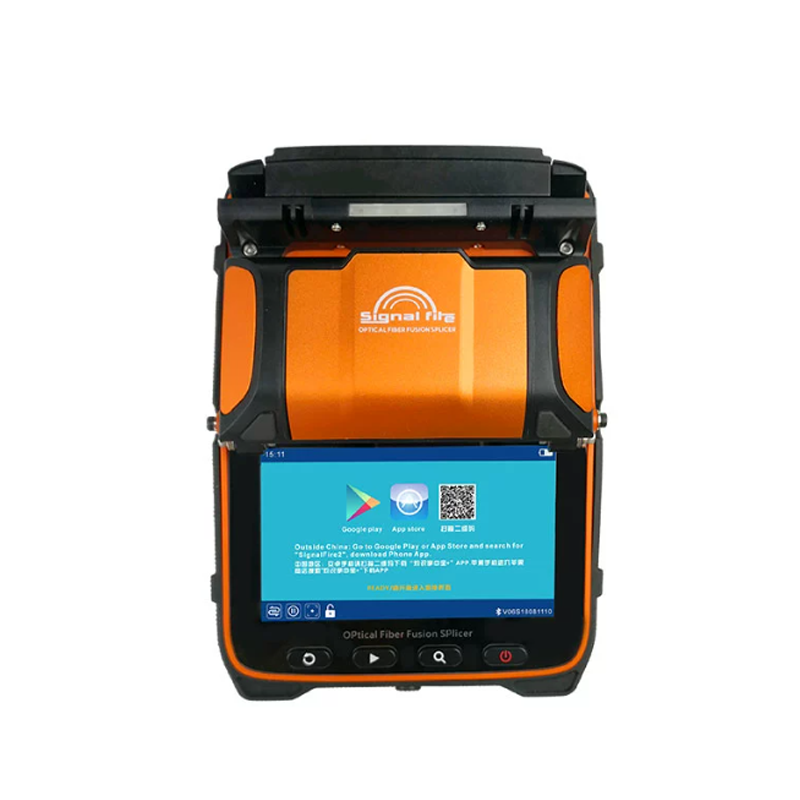

Fiber splicing machine is a kind of equipment specially used for splicing optical fiber. It melts the end faces of two optical fibers by high temperature and then fuses them together to form a continuous light transmission channel. This connection mode has the characteristics of low loss, high stability and high reliability, which can ensure the efficient transmission of optical signals in optical fibers.
In the modern communication network, whether it is long-distance trunk line communication, metropolitan area network or access network, it is inseparable from the figure of optical fiber splicing machine. It not only plays an important role in the network construction of telecom operators, but also has a wide range of applications in enterprise networks, data centers and other fields.
In the modern communication network, whether it is long-distance trunk line communication, metropolitan area network or access network, it is inseparable from the figure of optical fiber splicing machine. It not only plays an important role in the network construction of telecom operators, but also has a wide range of applications in enterprise networks, data centers and other fields.
Two, the working principle of optical fiber splicing machine
The working principle of the fiber splicing machine mainly includes the following steps:
1. Fiber end face processing: First, you need to use a fiber cutting knife to cut the end face of the fiber to ensure the quality of splicing.
2. Optical fiber alignment: put the two optical fibers to be fused into the fixture of the splicing machine, and align the end faces of the two optical fibers accurately through the precise mechanical structure and optical system.
3. Splicing: start the splicing machine and melt the end face of the fiber through arc discharge or laser heating. At high temperatures, the material of the fiber softens and fuses together.
4. Protection: after the welding is completed, the welding point needs to be protected. Usually, the fusion point is wrapped by heat shrink tube or mechanical protection box to prevent the influence of the external environment on the fusion point.
2. Optical fiber alignment: put the two optical fibers to be fused into the fixture of the splicing machine, and align the end faces of the two optical fibers accurately through the precise mechanical structure and optical system.
3. Splicing: start the splicing machine and melt the end face of the fiber through arc discharge or laser heating. At high temperatures, the material of the fiber softens and fuses together.
4. Protection: after the welding is completed, the welding point needs to be protected. Usually, the fusion point is wrapped by heat shrink tube or mechanical protection box to prevent the influence of the external environment on the fusion point.
Three, the characteristics of fiber splicing machine
1. High precision: the fiber splicing machine has high precision alignment and splicing function, which can ensure that the splicing loss is as low as 0.01dB.
2. High efficiency: simple operation, fast splicing speed, can greatly improve work efficiency.
3. Multi-function: in addition to the basic splicing function, some high-end fiber splicing machines also have a variety of functions such as fiber cutting, end face detection, tension testing and so on.
4. High reliability: the use of advanced technology and high-quality materials, with good stability and reliability, able to work in a variety of harsh environments.
2. High efficiency: simple operation, fast splicing speed, can greatly improve work efficiency.
3. Multi-function: in addition to the basic splicing function, some high-end fiber splicing machines also have a variety of functions such as fiber cutting, end face detection, tension testing and so on.
4. High reliability: the use of advanced technology and high-quality materials, with good stability and reliability, able to work in a variety of harsh environments.
Four, how to choose fiber splicing machine
1. Splicing loss: Select the fiber splicing machine with low splicing loss, which can ensure the transmission quality of optical signals.
2. Splicing speed: according to the actual needs, choose the fiber splicing machine with fast splicing speed, which can improve work efficiency.
3. Function: According to the actual needs, choose a variety of functions of optical fiber splicing machine, can meet different work needs.
4. Brand and after-sales service: choose well-known brands of fiber splicing machine, the quality is guaranteed. At the same time, we should pay attention to after-sales service to ensure that timely technical support and maintenance services can be obtained during use.
2. Splicing speed: according to the actual needs, choose the fiber splicing machine with fast splicing speed, which can improve work efficiency.
3. Function: According to the actual needs, choose a variety of functions of optical fiber splicing machine, can meet different work needs.
4. Brand and after-sales service: choose well-known brands of fiber splicing machine, the quality is guaranteed. At the same time, we should pay attention to after-sales service to ensure that timely technical support and maintenance services can be obtained during use.
Fifth, the future development trend of fiber splicing machine
With the continuous development of optical fiber communication technology, optical fiber splicing machine is also constantly innovating and progressing. In the future, the fiber splicing machine will develop in the following directions:
1. Intelligent: the use of artificial intelligence technology to achieve automatic alignment, splicing and testing functions, improve work efficiency and splicing quality.
2. Miniaturization: with the trend of miniaturization of optical fiber communication equipment, optical fiber splicing machine will also be more and more compact and light, easy to carry and operate.
3. Multi-functionality: Integrate more functions, such as fiber cutting, end face detection, tension test, etc., to become a multi-functional fiber communication tool.
4. High reliability: the use of more advanced technology and materials, improve the stability and reliability of the equipment, adapt to a variety of harsh environments.
In summary, optical fiber fusion machines play an important role in the field of optical fiber communications as a key tool to connect the digital world. With the continuous progress of technology, optical fiber welding machine will continue to innovate and develop, to provide a more reliable guarantee for the development of the digital world.
Exploring the World of Attenuators: Classifications and Distinctions
Related Article

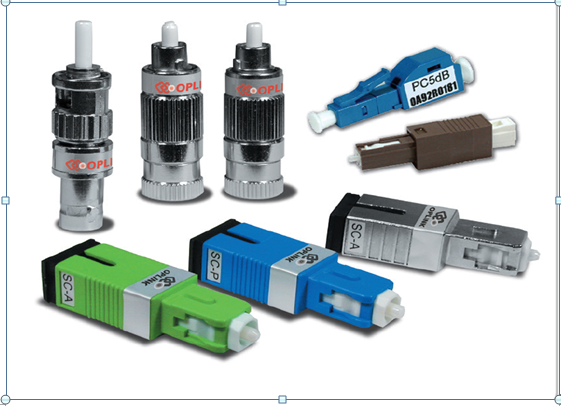

Hello tech community! Today, we're taking a deep dive into the realm of attenuators, essential components in signal processing that help control signal strength. Let's explore the various types of attenuators and understand their specific differences, which are crucial for their application in different scenarios.
