Model No: SC-LC

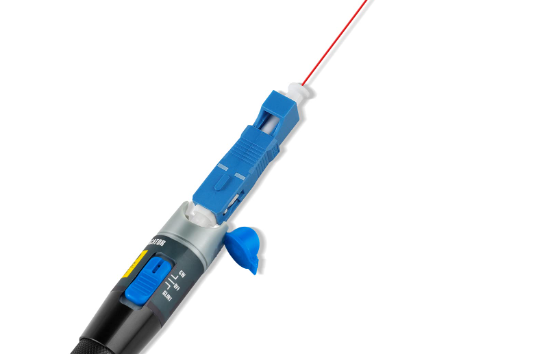

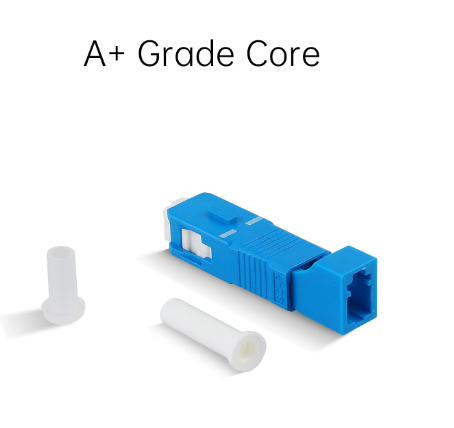

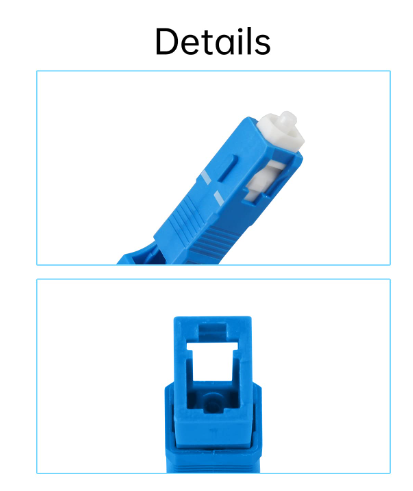

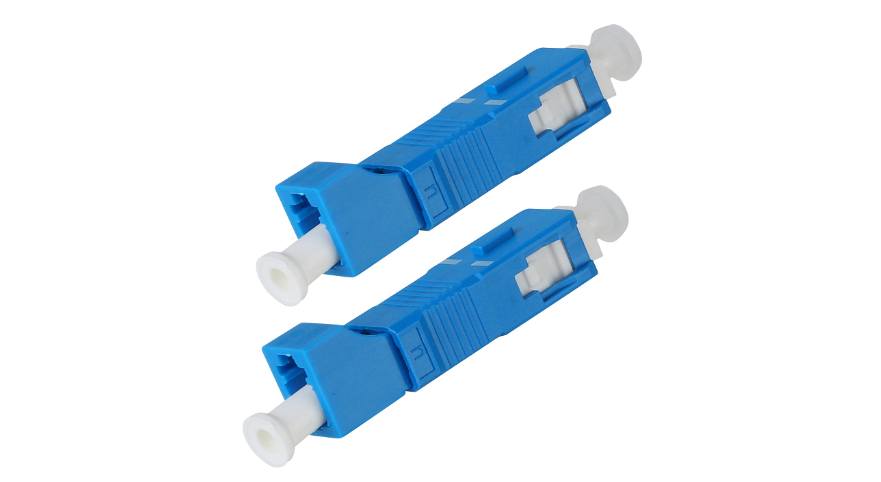

Hybrid SC Male LC Female Fiber Adapter
Features:
1. Reusable up to 1000 times
2. Low loss of insertion.
3. High precision and good compatibility, great reliability and stability.
4. Lightweight with small volume, easy to use.

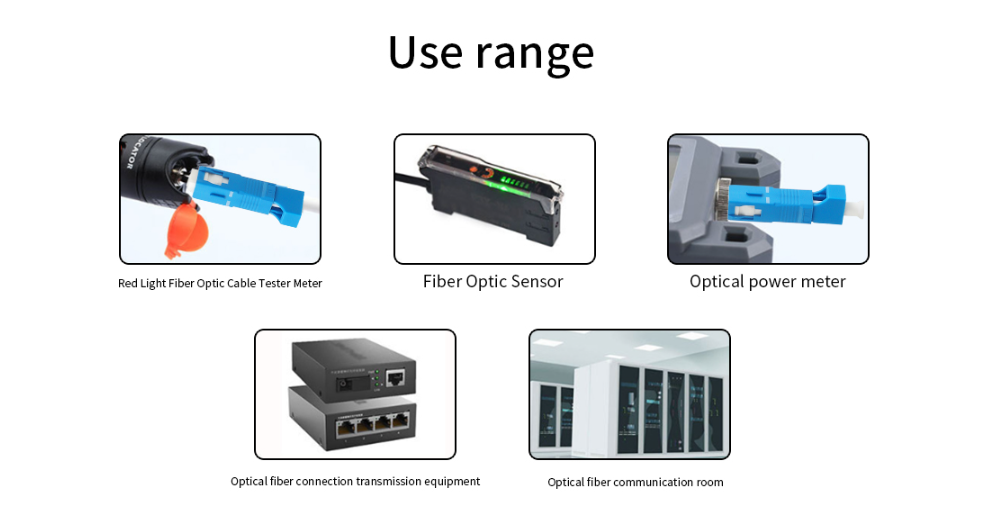

5. Mainly used for telecom network, ethernet network and optical communication equipment.
Specifications:
Adapter Type: SM 9/125 Fiber
Sleeve Socket Material: Zirconium dioxide ceramic
Insertion Loss: ≤ 0.3dB, Return Loss: ≥ 50dB
Operating Temperature: -40℃~+75℃, Storage Temperature: -40℃~+85℃
Repeatability(db): Greater than 0.38
Interchangeability(db): Less than 0.20

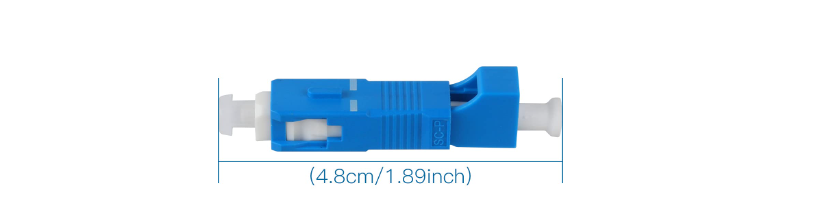

Overall Length: 4.7cm/1.85inch
1. Reusable up to 1000 times
2. Low loss of insertion.
3. High precision and good compatibility, great reliability and stability.
4. Lightweight with small volume, easy to use.
5. Mainly used for telecom network, ethernet network and optical communication equipment.
Specifications:
Adapter Type: SM 9/125 Fiber
Sleeve Socket Material: Zirconium dioxide ceramic
Insertion Loss: ≤ 0.3dB, Return Loss: ≥ 50dB
Operating Temperature: -40℃~+75℃, Storage Temperature: -40℃~+85℃
Repeatability(db): Greater than 0.38
Interchangeability(db): Less than 0.20
Overall Length: 4.7cm/1.85inch
Quantity :
0.00
Subscribe to our Newsletter

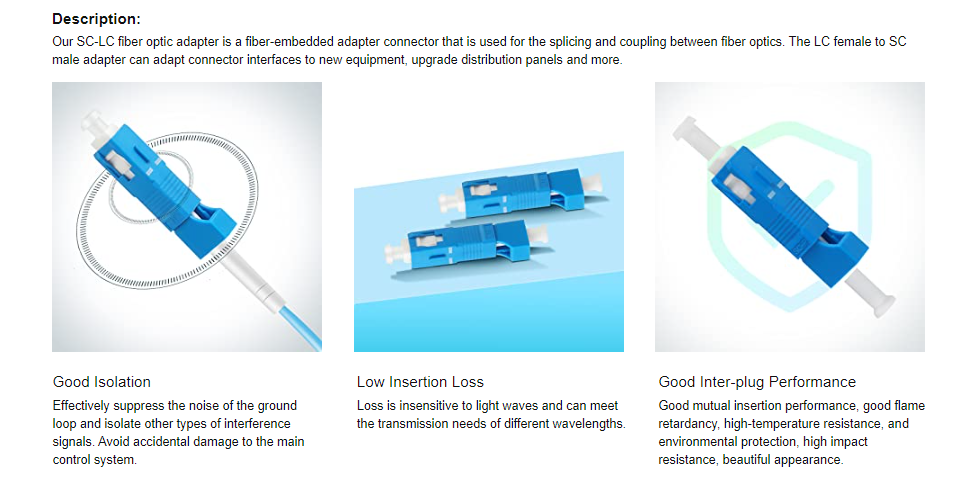

Fiber Adapter/fiber coupler adapter is a detachably (movable) connection device between fiber and fiber.
Fiber Adapter is to precisely butt two end faces of fiber, so that the optical energy output of the transmitting fiber can be coupled to the receiving fiber to the maximum extent, and make its intervention in the optical link to minimize the impact on the system. A waveguideOptical fiber coupler adapter is generally a device with a Y-shaped branch in which the optical signal input by one fiber can be divided into equal parts. When the open Angle of the branch of the Optical fiber coupler adapter increases, the light leakage to the cladding will increase to increase the excess loss, so the open Angle is generally within 30°, so the length of the waveguide fiber coupler/
Fiber Adapter
can not be too short.
