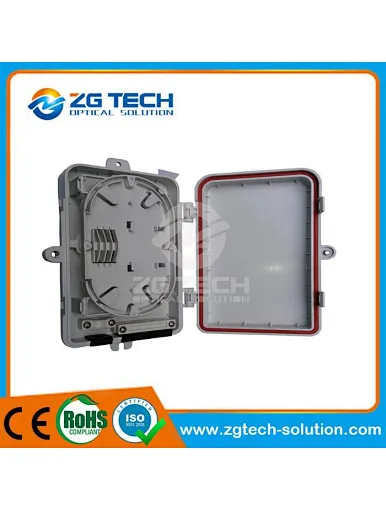

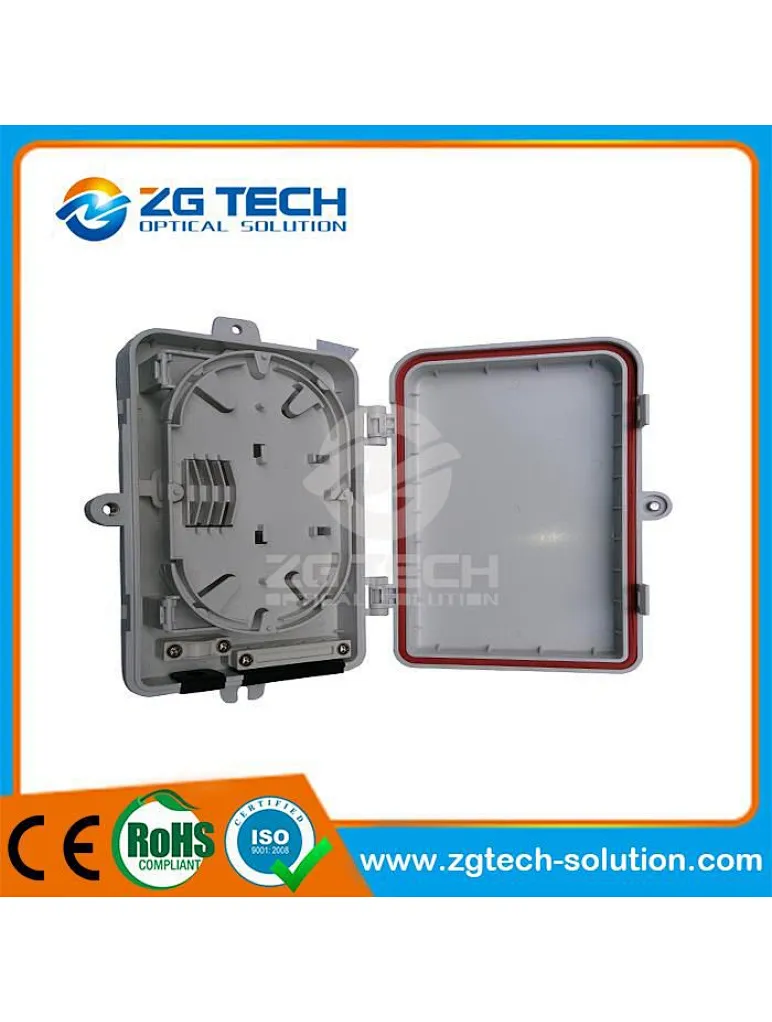

Model No: 4 Ports FTTH Distribution Box
4 port FTTH box optical terminal box plc splitter 1*4 SC/UPC
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.
Quantity :
0.00
Subscribe to our Newsletter
4 port FTTH box optical terminal box plc splitter 1*4 SC/UPC
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.

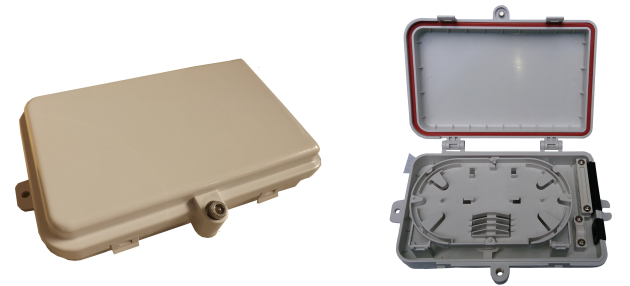

4 Ports FTTH Distribution Box
4 Ports FTTH Distribution Box
Application:
Mini FTTH terminal box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute.
Application:
Mini FTTH terminal box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute.
Features:
◆Light weight, small size, easy installation
◆Provide splice protection of fiber cable and pigtail
◆Made of engineer plastic, it is of nice shape.
◆Suitable for SC, FC or ST adapter
◆No need screws , it is easy to close and open
◆Light weight, small size, easy installation
◆Provide splice protection of fiber cable and pigtail
◆Made of engineer plastic, it is of nice shape.
◆Suitable for SC, FC or ST adapter
◆No need screws , it is easy to close and open
Dada sheet:
Model No. | No of entry/ exit ports | fiber count | Max. No. of pigtail | Max. No. of adapter | Dimension(mm) (LxWxH) | Accessories |
FTTH04C | 1/4 | 4 | 4 | 4 (SC or duplex LC) | 200*120*40 | Fiber protective sleeve, spanner, screw |
