As one of the leading 8 Channel CWDM MUX DEMUX manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 8 Channel CWDM MUX DEMUX Welcome to send us inquiry of 8 Channel CWDM MUX DEMUX.

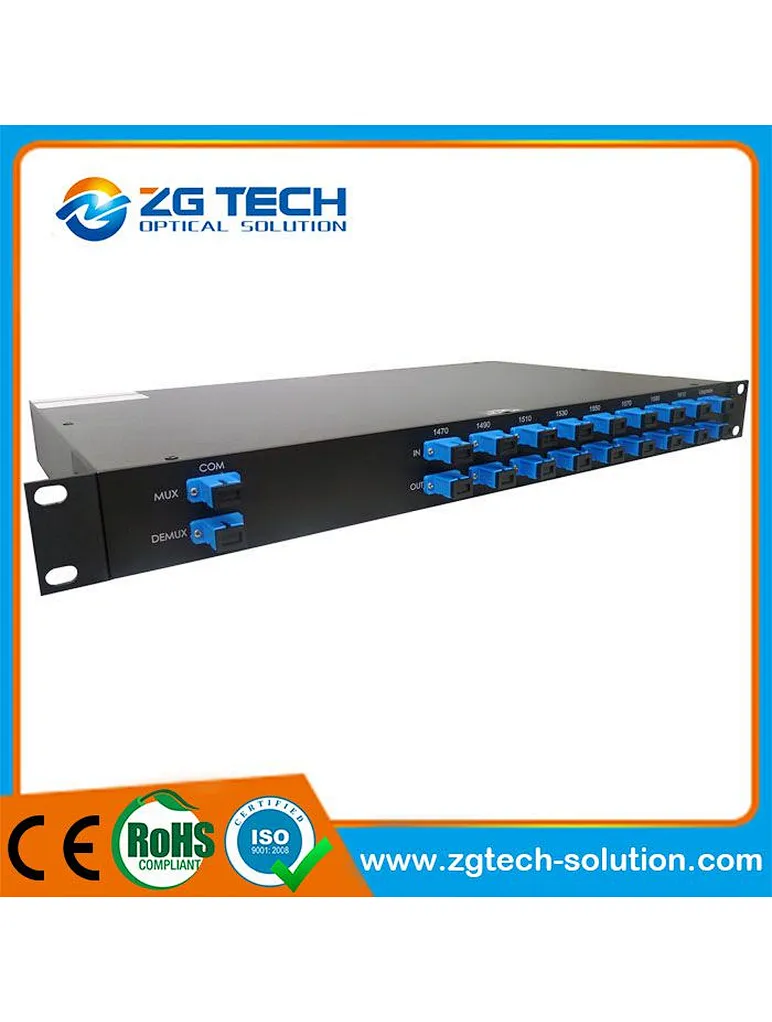

8 Channel CWDM MUX DEMUX
Features | Applications |
Low insertion loss | Line monitoring |
Performance Specifications
8 Channel CWDM MUX DEMUX
Parameter | MUX | DEMUX | |
Operating Wavelength (nm) | 1260-1620nm | ||
Center Wavelength Accuracy (nm) | ± 0.5 | ||
Channel Spacing (GHz) | 20nm | ||
Channel Pass band (@-0.5dB bandwidth) Min.(nm) | >13 | ||
Insertion Loss (dB) | < 3.0 | ||
Channel Uniformity (dB) | < 1.0 | ||
Channel Ripple (dB) | < 0.3 | ||
Isolation (dB) | Adjacent | N/A | >30 |
Non-adjacent | N/A | >40 | |
Insertion Loss Temperature Sensitivity (dB/°C ) | <0.003 | ||
Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
Polarization Dependent Loss (dB) | <0.10 | ||
Polarization Mode Dispersion (p s) | <0.1 | ||
Directivity (dB) | >50 | ||
Return Loss (dB) | >45 | ||
Maximum Power Handling (mw) | 300 | ||
Operating Temperature (°C) | -20 ~+85 | ||
Storage Temperature (°C) | -40 ~+85 | ||
Package Dimension (mm) | L110 x W95 x H7.5 | ||
Specifications may change without notice
Ordering Information
8 Channel CWDM MUX DEMUX
CWDM | Numberof channels | Configuration | 1st | Fiber Type | Fiber | Connector |
8=8 Channel | M=Mux | 41=1411nm 43=1431nm 55=1551nm 57=1571nm | 1=250um Bare Fiber | 1=1 Meter | 0=None |
