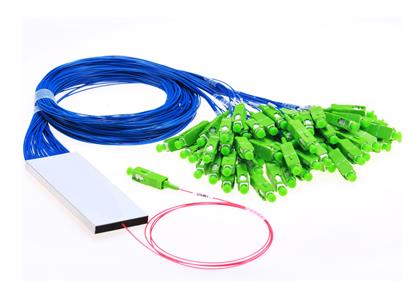

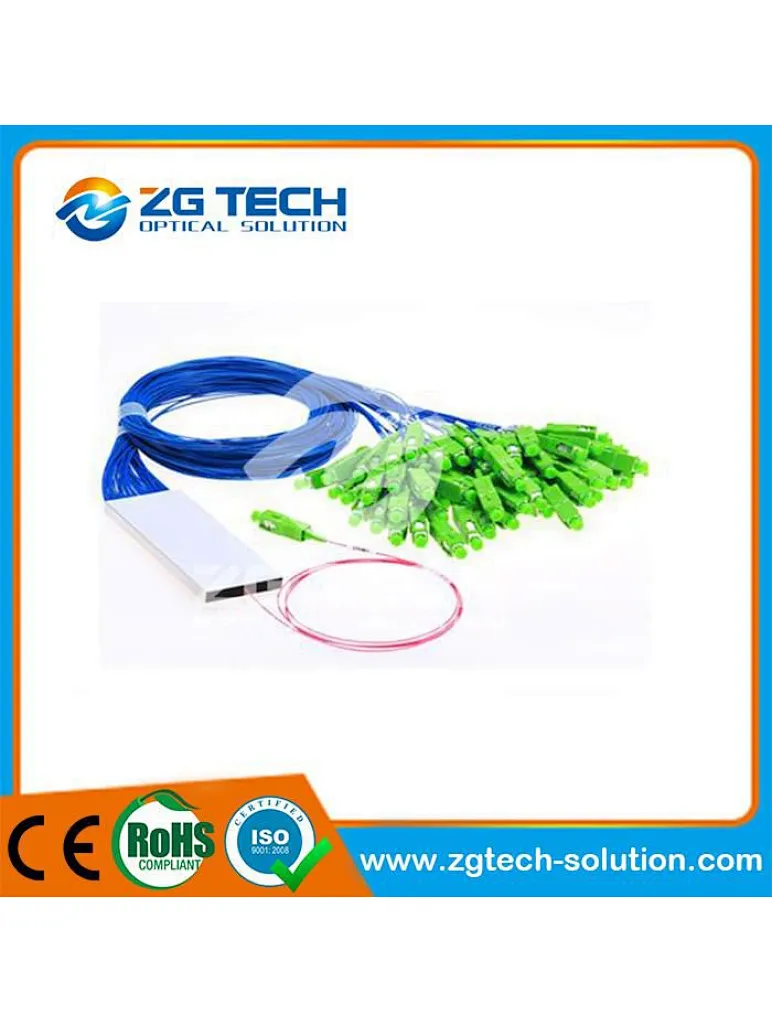

Blockless 2X64 PLC Splitter
| |
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
Blockless 2x64 PLC Splitter
Type | 2x64 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 20.6 |
Maximum | 20.8 | |
Uniformity (dB) | Maximum | 2.0 |
Polarization Dependent Loss (dB) | Maximum | 0.3 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

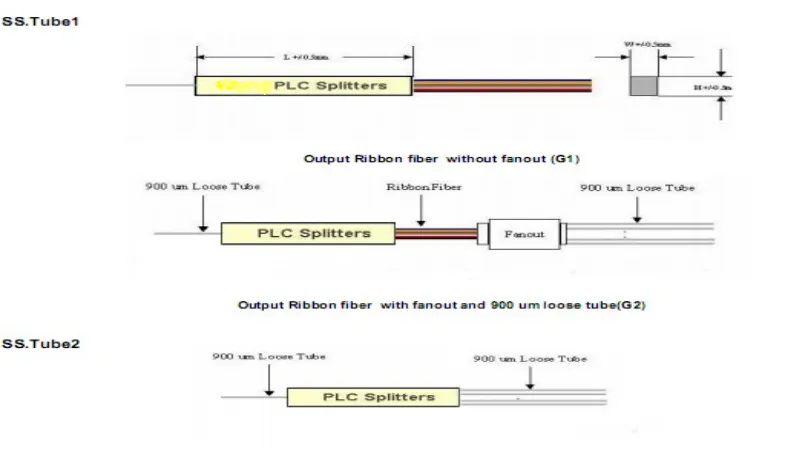

Stainless Steel Tube Package Drawing:
Blockless 2x64 PLC Splitter
Stainless Steel Tube Package Dimensions:
Blockless 2x64 PLC Splitter
PLC Type | 2x64 |
SS tube1 | 4x12x80 |
SS tube2 | 8x20x80 |

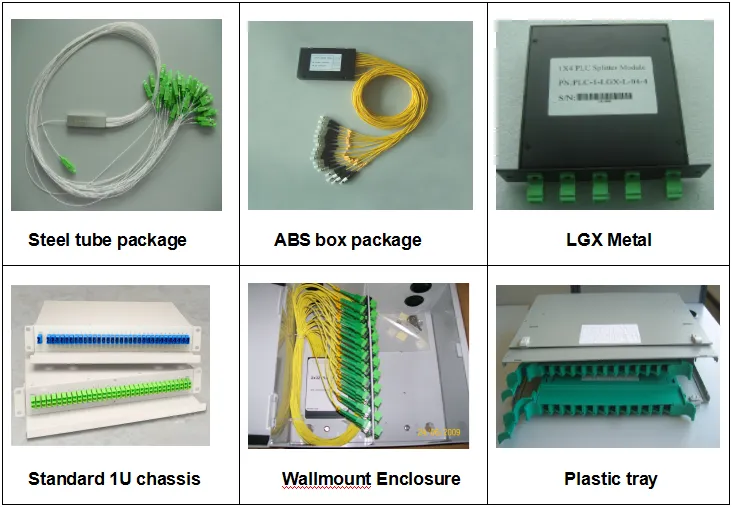

Package Drawing (Box Type)

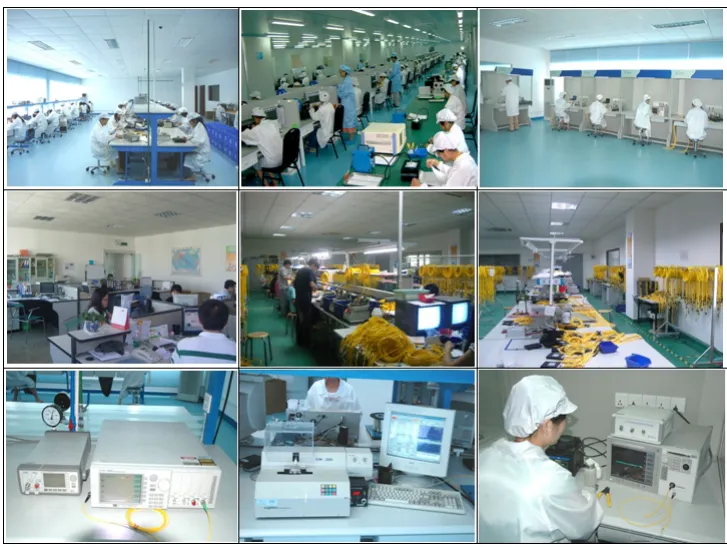

Company Information:
