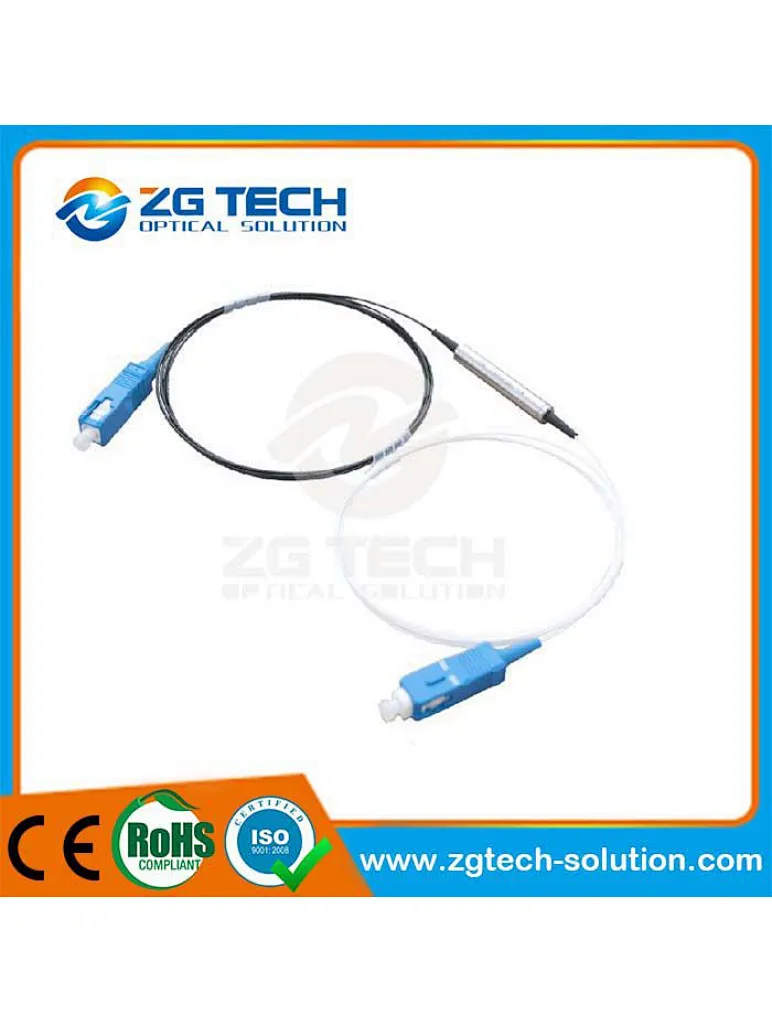

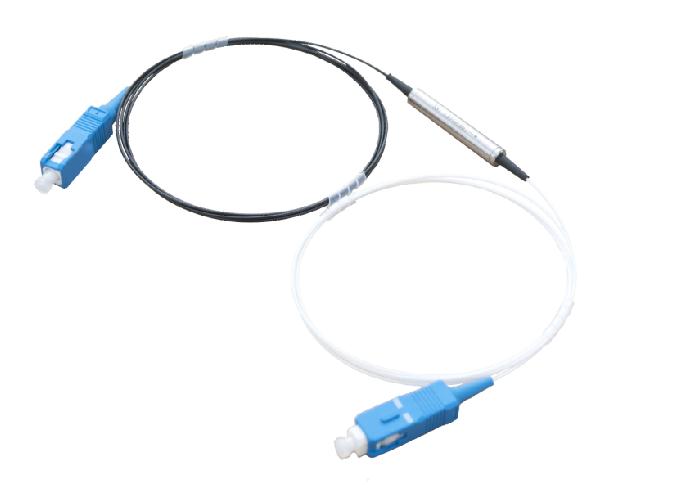

L-Band Single/ Dual Stage Isolator
L-Band Single/ Dual Stage Isolator can block back lection and backscattering in the reverse direction at any polarization sate. L-Band Single/ Dual Stage Isolator have low polarization mode dispersion (PMD). The optical path is epoxy-free, thereby enabling high-power applications. They are based on the micro-optics package technology and featured with the best stability and reliability
The products are Telcordia GR-1221-CORE qualified.
Performance specifications
L-Band Single/ Dual Stage Isolator
Parameter | Single stage optical isolator | Dual stage optical isolator | ||
Grade | P | A | P | A |
Operating wavelength (nm) | 1310 or 1550 or L band | |||
Typical peak ＆value isolation (dB) (23°C) | >42 | >40 | >52 | >50 |
Minimum ＆value isolation * (dB) (23°C) | >32 | >30 | >46 | >45 |
Insertion loss typical ＆value ** (dB) | 0.3 | 0.4 | 0.4 | 0.5 |
Insertion loss maximum ＆value *** (dB) | <0.5 | <0.7 | <0.6 | <0.8 |
Return loss (In/Out) (dB) | >65/60 | >60/55 | >65/60 | >60/55 |
PDL (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
PMD (dB) | 0.2(0.05 available upon request) | |||
Band width (nm) | ±15 | ±30 | ||
Operating temperature (°C) | -20 ~ + 70 | |||
Storage temperature (°C) | -40 ~ +85 | |||
Fiber type | Corning SMF-28 | |||
Fiber length | 1m | |||
Dimensions(mm) | 5.5x30 | |||
Power handing (mw) | 300 | |||
*At 23°C over bandwidth
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
Ordering Information
L-Band Single/ Dual Stage Isolator
Type | Operating wavelength | Grade | Tail filament type | Fiberlength | Package | In/out |
IS= single stage | 13=1310nm | P=P Grade | 1=250umBare filament | 1=1.0m | B=5.5X30 | 0=None |

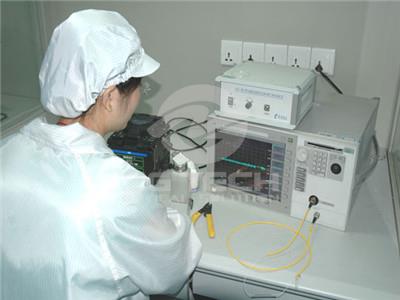

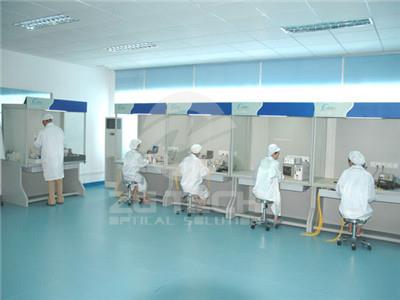

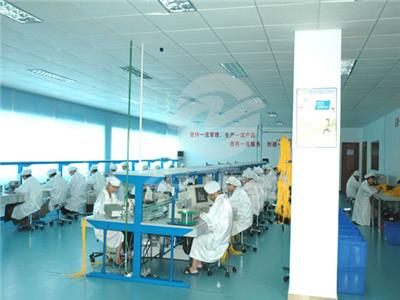

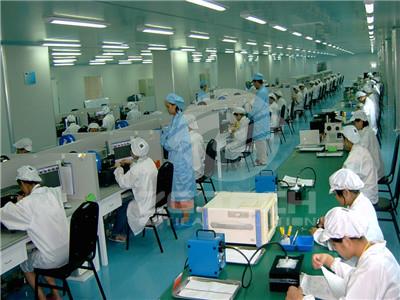

Company information:
