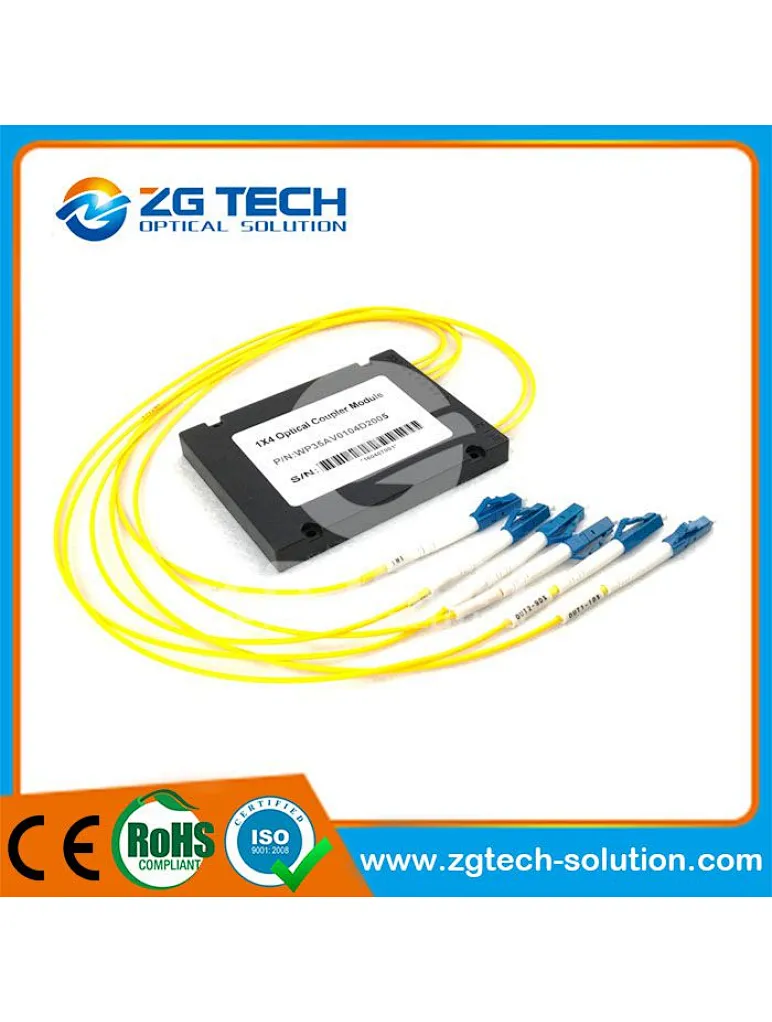

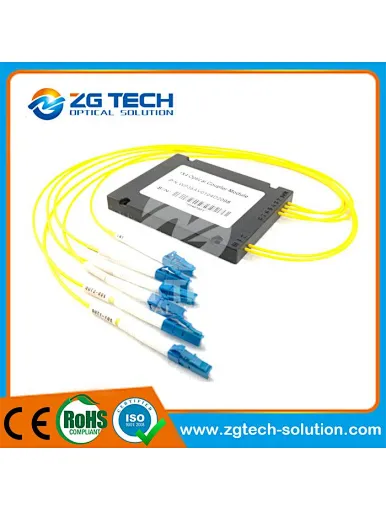

Single Mode Single Fusion 1X4 Coupler
Applications | Features |
Optical fiber test system Telecommunication system Luminous power feedback | Low insertion loss High directivey Compact size Extremely good stability and reliability |

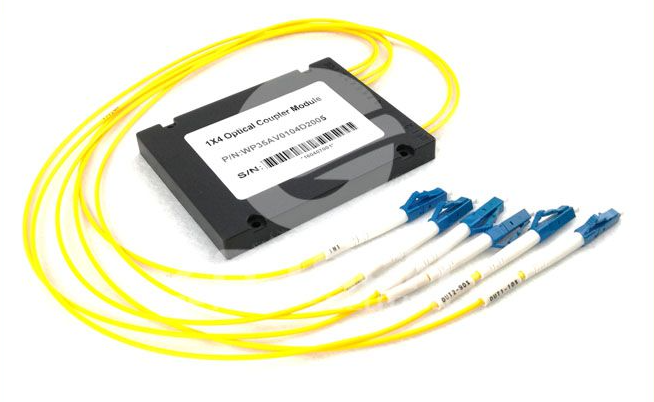

Single Mode Single Fusion 1X4 Coupler
Performance Specifications
Coupling ratio | 25:25:25;25 | ||
Operating wavelength | nm | 1310 / 1550±40 | |
Port numberss | 1×4 | ||
Grade | P | A | |
Excess loss | dB | 0.4 | 0.6 |
Max insertion loss | dB | 7.5 | 7.9 |
Max polarization indepedent loss | dB | 0.25 | 0.30 |
Max uniformity | dB | 1.4 | 2.0 |
Mini return loss | dB | 55 | |
Operating temperature | ℃ | -10～+70 | |
Storage temperature | ℃ | -40～+85 | |
Dimensions | mm | B=Φ3×60 for bare fiber | |
L=Φ3.5×70 for 900um loose tube | |||
All data do not contain the connector loss
Single Mode Single Fusion 1X4 Coupler
Ordering Information
SLC | Wavelength | Grade | Structure | Coupling Ratio | Package | Fiber Length | Fiber Type | Connector Type |
35=1310/1550 | P=P | 5=1×4 | 00=Even | B | 1=SMF-28 0=Others | 1=1m 0=Others | 0=None |
