Model No: 4cores (2×2)

4cores fiber capillary

Fiber capillary‌ is an optical component with a micron-scale hollow channel, typically made of high-purity quartz glass or specialized polymer materials. It is widely used in optical communications, laser transmission, sensing, and medical applications.

minimum order :

10 pieces

Quantity :

Buy Now

add to cart

Contact Now

All Products

Subscribe to our Newsletter

Message Content

Country

Phone

Company Name

Name

ZG TECHNOLOGY is a professional manufacturer with 20years experiences in producing optic fiber glass capillary,round-shape ferrule,square-shape ferrule,D-shape ferrule or others.single-core type;dual-core type;multi-core type;cylindrical/rectangular shape optional;customized fiber glass capillary is supportable.

Features:

-Etching process for taper hole

-Good consistency of taper hole

-Good reliability and stable performance in harsh environment

-High chemical stability

-Machinable high-precision components

Application Field:

optical communications, sensing, lasing,medical devices and other industries.

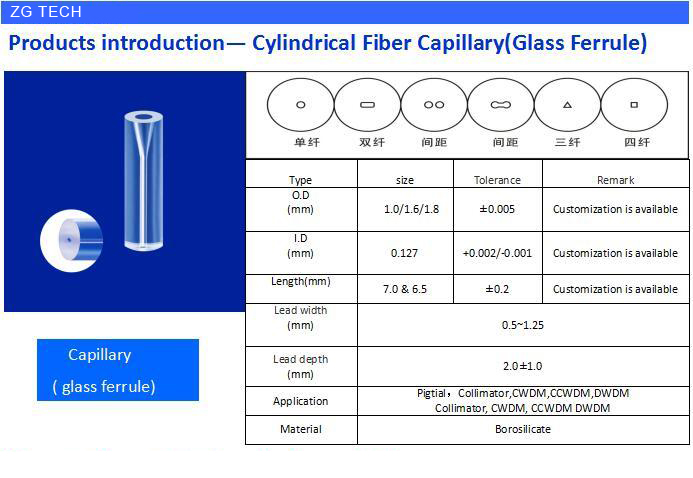

Technical Parameters:

Material	Schott BF33(Borosilicate) or Ceramic(zirconia)
O.D/Shape	O-Type:0.5mm,0.9mm,0.99mm1.0mm,1.8mm,2.5mm(±0.005mm) Square-Type:1.25mm,1.4mm,1.5mm,2.0mm,2.5mm,3.0mm(±0.05mm) D-Type:D0.9,D1.25,D2.2(±0.05mm) We support customized order.
I.D	O-Type:（Φ0.5mm~2.5mm）±0.001mm Square-Type: 0.127±0.001mm D-Type: 0.127±0.001mm We support customized order.
Length	7±0.1mm or customize
Lead	L1.5±1mm;W0.75±0.25mm or customize
