Fiber Collimator: Precision Light in the Information Age

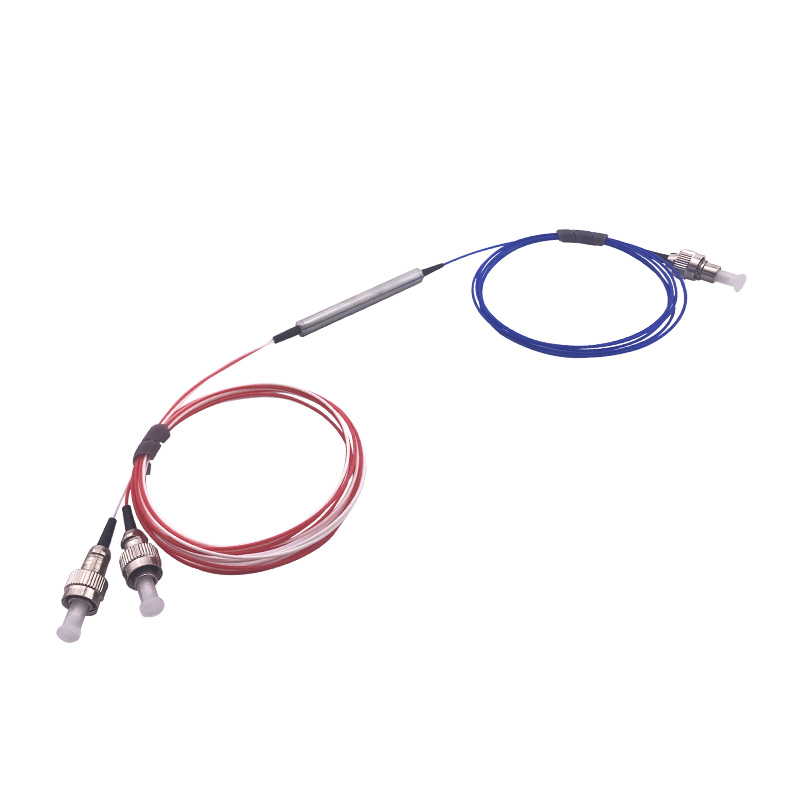

Types of Fiber Optic Collimator

Fixed Focus Collimators Fixed focus collimators use a fixed distance to collimate a light beam without the need for adjusting or focusing. They consist of a lens or a collection of lenses designed to produce a parallel beam of light with a constant focal length. Fixed focus collimators are extensively employed in optical sensing, laser range finding, and free space optical communication systems when the distance between the collimator and the target is constant. They are also employed in applications where a steady beam diameter over a wide range of distances is desired.

Adjustable Focus Collimators An adjustable focus collimator is an optical device that collimates a light beam to a changeable distance, allowing for focus and beam diameter modifications. It is made up of a lens or a group of lenses that can be moved or changed to produce a collimated beam with variable focal length. Adjustable focus collimators are extensively employed in optical microscopy, imaging, and laser machining systems where the distance between the collimator and the target varies. Additionally, these collimators are also employed in applications where the size or form of the collimated beam should be altered.

Aspheric Collimators Aspheric collimators use specially designed lenses with a non-spherical shape to collimate light beams emitted from fiber optic cables. These lenses correct for aberrations that occur in traditional spherical lenses, resulting in a collimated beam of light with high precision and accuracy. Aspheric collimators are particularly useful in applications where high-quality collimation is essential, such as in optical communications, sensing, and laser diodes. They can also produce beams with a very low divergence angle, making them suitable for applications that require a small spot size.

Achromatic Collimators Aspheric collimators employ lenses with a non-spherical form that are capable of correcting for aberrations in typical spherical lenses. Thus, aspheric collimators are very useful in applications that require precise collimation, such as optical communications, sensors, and laser diodes. They may also generate beams with extremely low divergence angles, making them ideal for applications requiring a small spot size.

Reflective Collimators Reflective collimators collimate light by reflecting it off a curved mirror or set of mirrors. The mirror is meant to reflect the entering light beams such that they exit the collimator parallel to one other. Reflective collimators are widely employed in high-quality collimation applications such as laser diodes, sensor systems, and free-space optical communication. They are also employed in instances where a standard refractive collimator cannot be used, such as when the light source is in a vacuum or the beam is excessively divergent.

GRIN Fiber Collimators GRIN fiber collimators use gradient index (GRIN) lenses to collimate light emitted by a fiber optic cable. Recall that, GRIN lenses feature a changing refractive index that changes gradually from center to edge, allowing them to focus and collimate light beams without the use of sophisticated optics. Small, lightweight, and simple to integrate into optical systems, GRIN fiber collimators are suited for use in portable and compact devices. GRIN fiber collimators are widely used in fiber optic communications, sensing, and biomedical imaging. They do, however, have some limits, such as a shorter working distance and a more limited wavelength range compared to other collimators.

Refocusing Assembly Collimators Refocusing assembly collimators consist of one or multiple lenses that refocus and collimate light from sources such as LEDs or laser diodes. Refocusing assembly collimators are extensively employed in laser machining, sensing, and optical communications systems where the output beam properties must be modified.

Zoom Fiber Collimators Zoom fiber collimators collimate light emitted by a fiber optic cable with variable focal length. They consist of multiple lenses that may be changed to vary the beam's collimation over a wide range of distances. Zoom fiber collimators are frequently employed in applications where the distance between the collimator and the target varies or a variable beam diameter is required.

Table 1 summarizes the different types of fiber optic collimators and their use cases.

Table 1: Types of fiber optic collimators and their use cases.

3.Market status and prospects of optical collimators

With the continuous advancement of science and technology and the continuous expansion of application fields, the market demand for optical collimators is also growing continuously. Especially in the fields of optical fiber communication, laser technology, optical measurement and medical equipment, the application prospects of collimators are very broad. According to the latest market research report, the global single-mode optical fiber collimator market will continue to expand in the next few years, and it is expected to reach tens of billions of yuan by 2030. Among them, the Asia-Pacific region, especially China, Japan, South Korea and India, will become an important market growth point.
