What is a fiber optic capillary?

Fiber optic capillary is a key precision structural component in the fields of optical communication, laser, and sensing. It does not transmit optical signals itself, but serves as a "precision fixture for optical fibers" and a "positioning platform for optical assembly", providing basic support for achieving efficient and stable optical interconnection and device packaging.

1、 Basic Definition and Structure

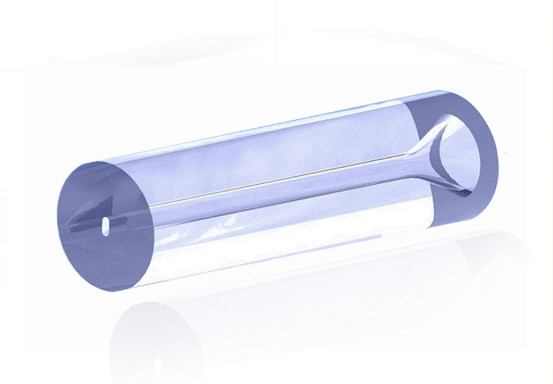

Physical form: A slender cylindrical tube, usually made of zirconia ceramic or quartz glass.

Core feature: There are one or more micrometer sized precision through holes along the axial direction at the center of the tube.

Core function: These micropores are used for precise positioning, fixation, and protection of one or more bare optical fibers with removed coating layers.

2、 Core working principle: precise positioning

The value of capillaries lies entirely in the ultimate precision of their micropores:

After inserting a bare optical fiber (usually 125μm in diameter) into the micropore, the fiber core is confined to the central axis of the micropore.

When two capillary tubes equipped with optical fibers face each other, their internal fiber cores can achieve automatic alignment with sub micron precision, thereby minimizing the coupling loss of optical signals.

Essentially, it transforms the problem of "alignment" of optical fibers into a problem of "machining accuracy" of capillary micropores.

3、 Main application scenarios (where is it used?)

Fiber optic active connectors (such as FC, SC, LC, MPO):

The core of the connector - ceramic plug, is a specially designed single hole/porous capillary tube. It is responsible for fixing the optical fiber and achieving plug-in alignment with high precision of its outer diameter (such as Ø 2.5mm, Ø 1.25mm).

Passive optical components:

Divider/wavelength division multiplexer: In a fused tapered device, multiple optical fibers are inserted in parallel into a porous capillary tube and heated to melt, achieving coupling and distribution of optical power.

Optical isolator/ring resonator: Capillary tubes are used for precise positioning of fiber end faces and internal optical crystals, forming the optical path.

Active device packaging (such as lasers, modulators):

When the optocoupler emitted by the laser chip is coupled into the optical fiber, the capillary is used as the "fiber head" to permanently align and fix the optical fiber at the light wave outlet of the chip, which is the key to device performance (insertion loss) and reliability.

Special fiber optic devices and sensors:

Used for constructing fiber Bragg gratings, Fabry Perot interference cavities, microfluidic biosensors, etc., its micropores can be used as optical chambers or for encapsulating sensitive materials.

4、 Technical key points and development trends

Key parameters: The diameter, roundness, and concentricity of micropores are the core of measuring quality, and the machining accuracy is usually within ± 0.5 micrometers.

Material selection:

Zirconia ceramics: mainstream choice, high hardness, wear resistance, thermal expansion coefficient matched with optical fibers.

Quartz glass: used in situations where transparency or special optical properties are required.

Development trend:

High density multi-core: supports porous array capillaries for multi-core optical fibers or fiber arrays.

Summary

In short, fiber capillaries are the "miniature precision fixtures" in the field of optoelectronics. Although it does not emit light or transmit light, it ensures efficient, stable, and low loss "docking" of optical signals between chips, fibers, and components by providing unparalleled positioning accuracy and mechanical protection. It is the underlying hardware cornerstone of modern optical network reliability and a key supporting technology for promoting device miniaturization and integration.
