Model No: Simplex
Fiber Optic Patch Cord Single Mode Simplex 2.0mm with Connector
The single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Quantity :
0.00
Subscribe to our Newsletter
Fiber Optic Patch Cord Single Mode Simplex 2.0mm with Connector
The single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.This fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Performances Specifications
Features | Applications |
Low insertion loss High return loss Good duplication, and interchangeability | Long-distance trunk network, Metro- area network, access network DWDM system, Optical fiber CATV Optical fiber data network |
Specifications
Model Number: | Fiber Optic Patch Cord | Connector Type: | LC/UPC to LC/UPC Duplex |
Use: | FTTX | Length: | Customized |
Place of Origin: | Guangdong, China | Brand: | OEM/ODM |
Network: | Wireless Lan | Fiber Type: | G657A1 (Compatible with G.652.D), G657A2, G657B3 ...Customized |
Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Fiber count: | Duplex | Polish: | UPC/APC/PC |
Insertion loss: | ≤0.3dB(UPC/APC/PC) | Return loss: | UPC/PC ≥50dB; APC≥60dB |
Jacket: | PVC/OFNR/LSZH/Plenum(OFNP) | Jacket Color: | Yellow/Red/Blue...Customized |
Cable Diameter | 0.9mm/1.2mm/1.6mm/2.0mm/3.0mm | Laying Method: | Indoor cabling |
Operating Temperature (° C) | -10~ + 70 | Storage Temperature (° C) | -40 ~ +85 |
Exchangeability | ≤ 0.2dB | ||
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | ||
Single Mode 9125um Fiber Optic Patch Cord
Ordering Information:

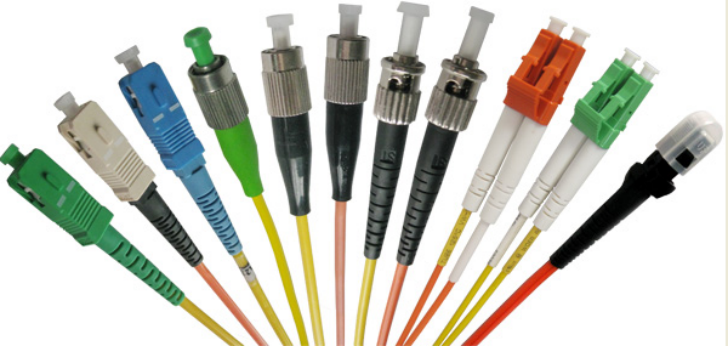

1.Connector Type: SC/LC/ST/FC/MU various connectors available
2.End-face: PC/UPC/APC
3. Fiber Type: G652D/G657A Material PVC or LSZH
4.Cable Diameter: 900um, 2.0mm, 3.0mm
5.Core Qty: Simplex/Duplex, 4cores, 8cores, 12cores, 24cores available
6. Length: Customized
Single Mode 9125um Fiber Optic Patch Cord

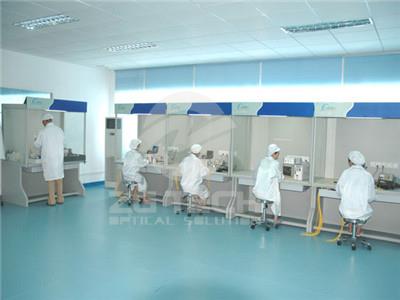

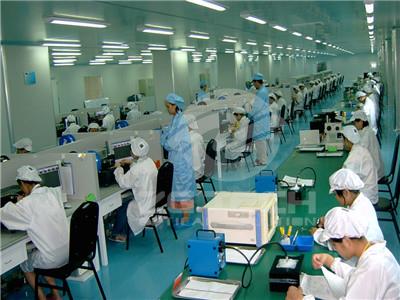

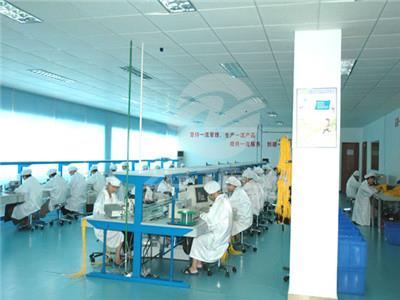

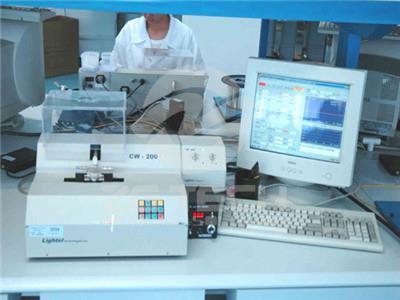

Company information:
Certification:

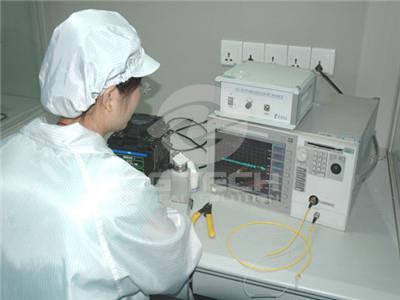

More 3rd party product testing report will be support when contact with ZG TECH.
Exhibition:
