Model No: Armoured Fiber Patch Cord
Single Mode SX Armoured Fiber Optic Patch Cord 3.0mm FC-FC connector
Fiber patch cords are used to make patch cords from the device to the fiber optic cabling link. There is a thick protective layer, which is generally used in the connection between the optical transceiver and the terminal box, and is applied in some fields such as a fiber-optic communication system, a fiber access network, an optical fiber data transmission, and a local area network.
Quantity :
0.00
Subscribe to our Newsletter
Single Mode SX Armoured Fiber Optic Patch Cord 3.0mm FC-FC connector
Fiber patch cords are used to make patch cords from the device to the fiber optic cabling link. There is a thick protective layer, which is generally used in the connection between the optical transceiver and the terminal box, and is applied in some fields such as a fiber-optic communication system, a fiber access network, an optical fiber data transmission, and a local area network.

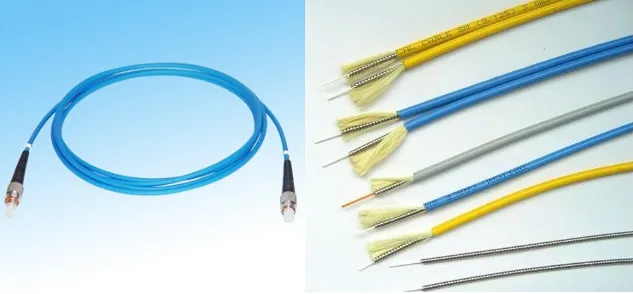

Armoured Fiber Optic Patch Cord
Features | Applications |
Low insertion loss High return loss Good duplication, and interchangeability | Long-distance trunk network, Metro- area network, access network DWDM system, Optical fiber CATV Optical fiber data network |
Performances Specifications
Parameter | FC, SC, LC | ST, MU MT-RJ, MPO | E2000 | |||||||
SM | SM | SM | ||||||||
PC | UPC | APC | PC | UPC | PC | APC | ||||
IL(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ||
RL | dB | ≥45 | ≥50 | ≥60 | ≥45 | ≥50 | ≥55 | ≥75 | ||
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||
Exchange ability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||
Ordering Information
OFC | Port 1 | Port 2 | Fiber type | dimension (Φ) mm | ||
Connector | End-face | Connector | End-face | |||
FC,SC ST,LC MU | PC, UPC APC | O: pigtail FC,SC ST,LC MU,E2000 | O: pigtail PC,UPC APC | S=G.652 H=G.655 X= G.657 M=Multi mode (50/125) D=data (62.5/125) | 09=0.9mm 20=2.0mm 30=3.0mm Duplex cable 22=2.0mm Duplex cable 00=Specify | |

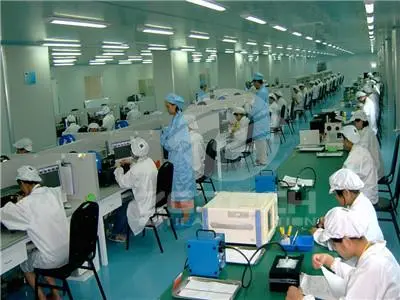

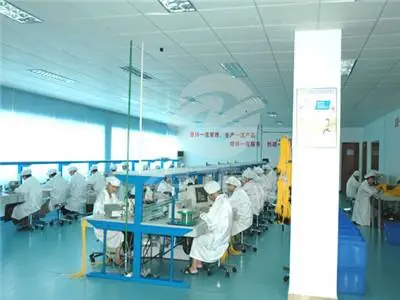

Company information:
