As one of the leading 12 Core MPO To MPO Ribbon Patch Cable manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 12 Core MPO To MPO Ribbon Patch Cablemade in China. Welcome to visit our website.
12 Core MPO To MPO Ribbon Patch Cable:

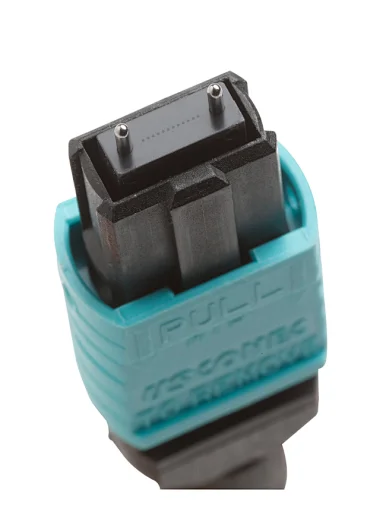

Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 12 fiber ribbons
IEC 61754-7 Compliant* Telcordia GR-1435-CORE compliant*
Polishing does not require diamond film

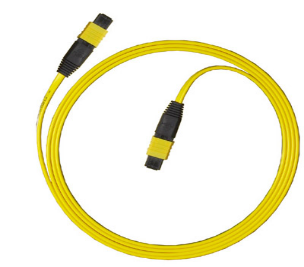

12 Core MPO To MPO Ribbon Patch Cable
Applications:
Asynchronous Transmission Mode (ATM)
Gigabit Ethernet
CATV, Video and Multimedia
Active Device/Transceiver Interface
Premise Installations
Telecommunication Networks
Industrial & Military
Parallel optical interconnect between
PC Cards and patch panels
Interconnection for O/E modules
Optical Switch interframe connections
12 Core MPO To MPO Ribbon Patch Cable
Performance Specifications:
Item | SM | MM |
Insertion Loss | ≤0.2dB (PC) | ≤0.2dB (PC) |
Return Loss | ≥45dB (PC) | ≥20dB (PC) |
Repeatablity | ≤0.10dB | |
Durability | ≤0.3dB typical Change, 1000 matings | |
Interchangeability | ≤0.20dB | |
Tensile Strength | >15KG | |
Operating Temperature | -40ºC to +85ºC | |
Storage Temperature | -40ºC to +85ºC | |
12 Core MPO To MPO Ribbon Patch Cable

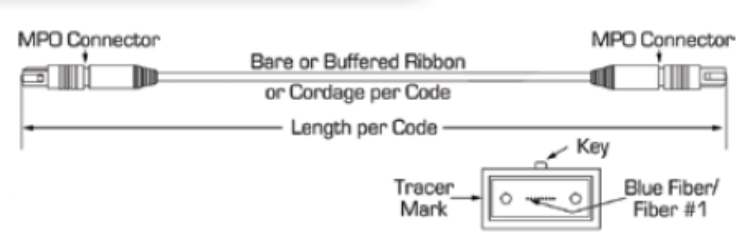

Ordering Information: FO－A/B－C－D－E－F－G
A/B | C | D | E | F | G | |
| Input/Output Connector | Cable Typr | Fiber Count | Fiber Length | Outer Cable Diameter | Fiber |
FO | MF=MPO Female connector | JR=Jacket Ribbon | 4 | 05=0.5M | 2=2.0mm X=Others | 9=9/125um SM |
12 Core MPO To MPO Ribbon Patch Cable
