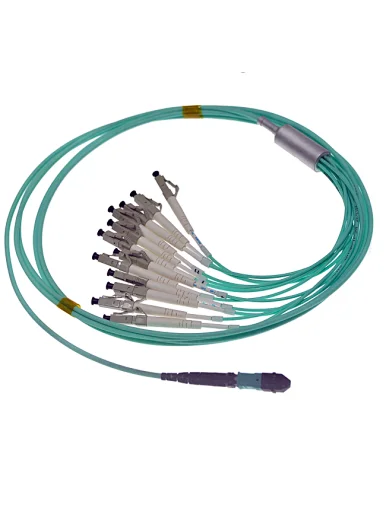

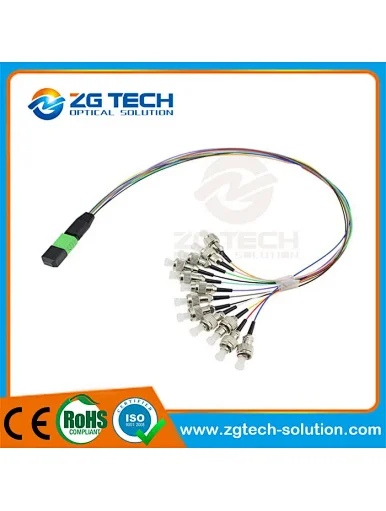

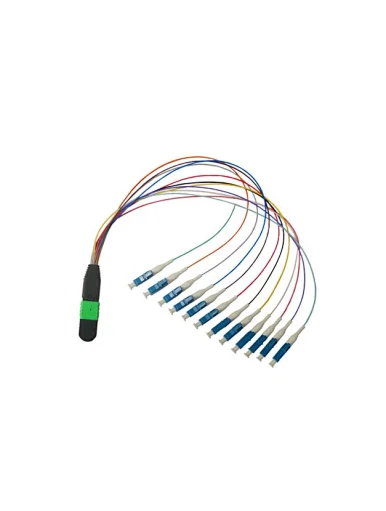

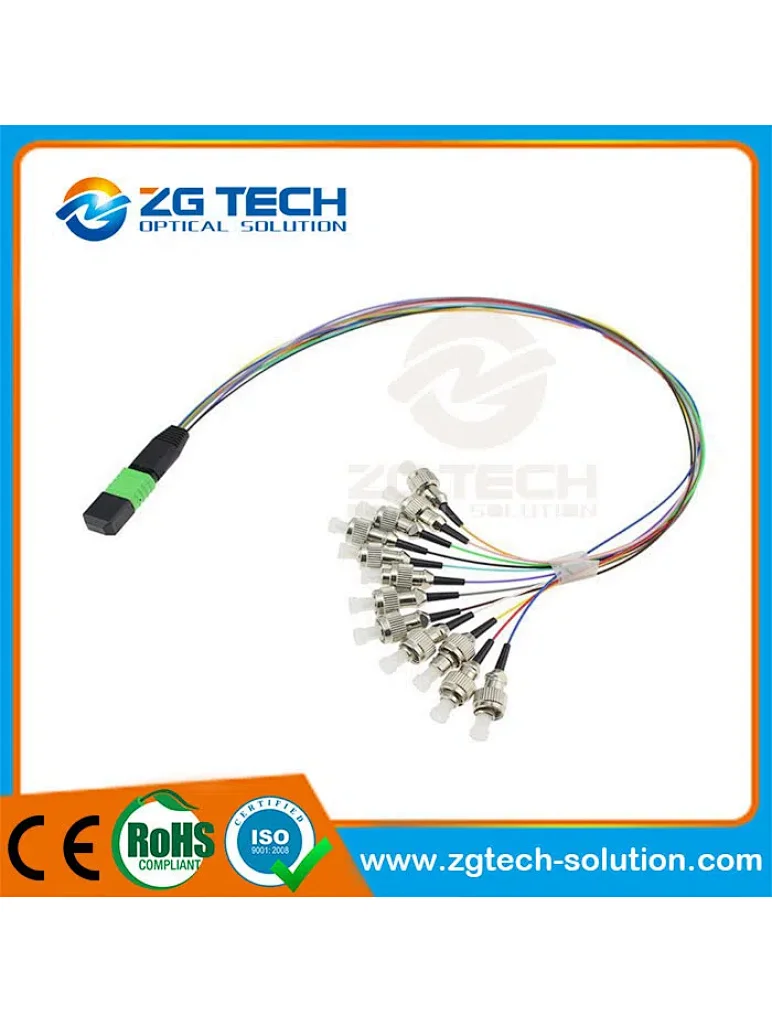

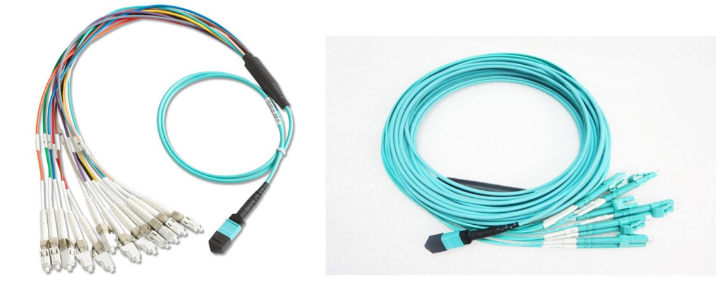

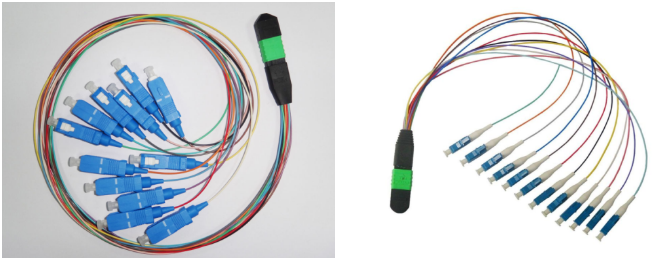

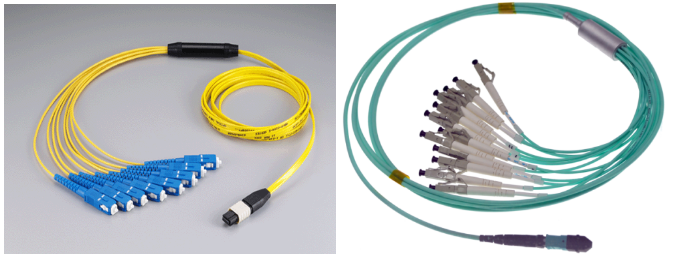

MPO MTP Fan-Out Patch Cord
Product Introduction:
ZG Tech offers single mode and multimode MTP fiber optic patch cables, MTP-LC, MTP-LC/APC, MTP-SC, MTP-SC/APC, MTP-ST, MTP-FC, MTP-FC/APC, MTP-MU,MTP-MT-RJ,MTP-E2000,etc types custom design MTP fiber optic cable assemblies, All fiber modes including 9/125,50/125,62.5/125, SM, MM, with duplex break-outs. A wide range of MTP/MPO products including single mode or multimode MPO and MTP Fan-out assemblies.  Multi fiber connections are used to build out Fan-out assemblies.  Available in all fiber mode.  Most common is the 24"fan on a 1 meter cables assembly.  900um tubes can be terminated with all connector types.
For customer wanting more testing, interferometer test reports can be supplied upon prior request to assembly, MTP/MPO end face geometry, ferrule radius of curvature, fiber height and core dip are among some of the test data.

MPO MTP Fan-Out Patch Cord

MPO MTP Fan-Out Patch Cord

MPO MTP Fan-Out Patch Cord

MPO MTP Fan-Out Patch Cord
Feature:
1.High precision pins for fiber alignment
2.UPC and APC available
3.Save time and cost
4.Material meet ROHS requirement
5.Push/pull mating for quick installation
6.High density and compact size
7.Available SM (angled) and MM (flat)
8.Push-on / Pull-off latching connector
9.Easy connection and disconnection
10.No need for matching material
11.Fiber protrusion
12.Low Insertion loss & Reflection
13.Simple & Low cost
MPO MTP Fan-Out Patch Cord
Applications of MTP-MTO Fiber Optic Patch Cord
1.Local Area Network
2.Optical Switch Connections
3.Fiber channels
4.Parallel interconnection
5.Miniature OE Modules
MPO MTP Fan-Out Patch Cord
Specifications:

MPO MTP Fan-Out Patch Cord

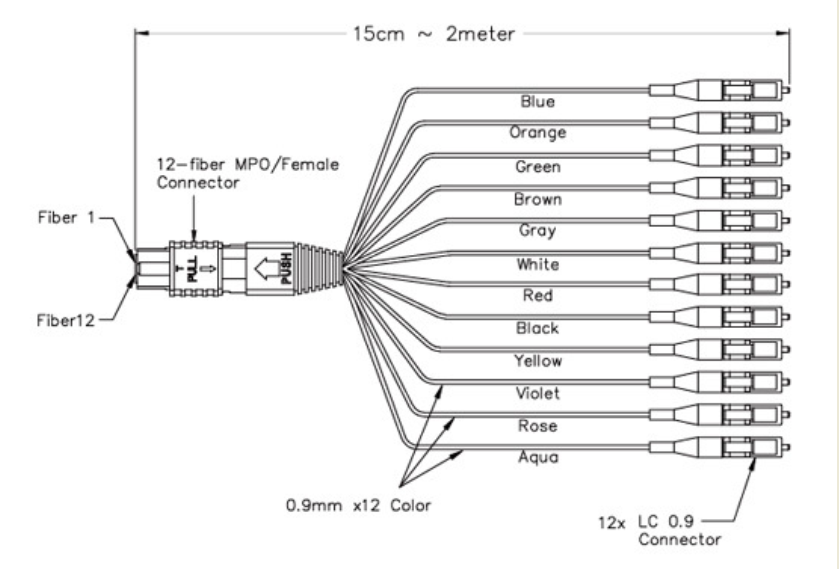

Production Drawing:
