12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes
As one of the leading 12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes made in China. Welcome to visit our website.

12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes/MTP MPO Fiber Optic Plug-N-Play Cassettes

12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes
ZG Tech Offers a wide range of single mode and multimode MPO MTP Cassettes. The standard cassettes can accommodate 12 and 24 port configurations. Different sizes of cassettes are available. Available in all fiber mode and connector options. ZG Tech uses US Con products for our MTP Solutions.

12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes

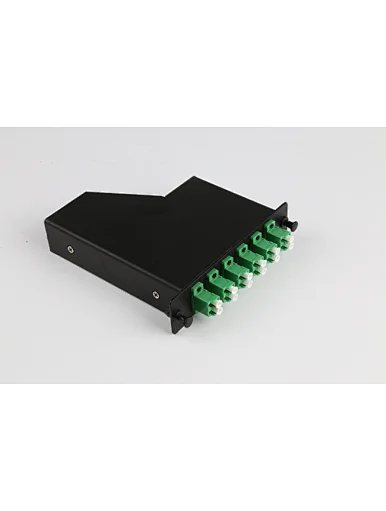

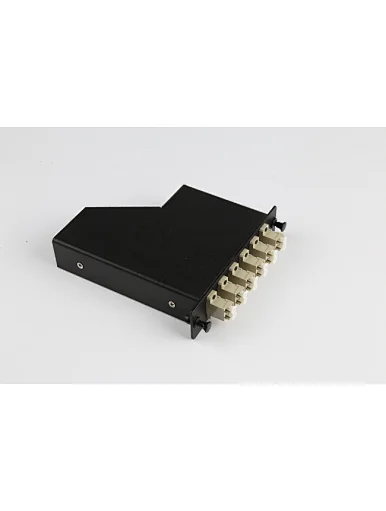

This 12 Fiber MTP / MPO cassette allows for a break-out to 12 LC connectors. This cassette uses a angled polish MTP / MPO and flat polished LC/UPC connectors for low insertion loss. Inside the cassette is a fan out using Single mode 9/125µm Corning fiber from one MTP/APC (female) which then connector to 12 LC/UPC ports on the front.
12 Core MTP MPO Fiber Optic Plug-N-Play Cassettes

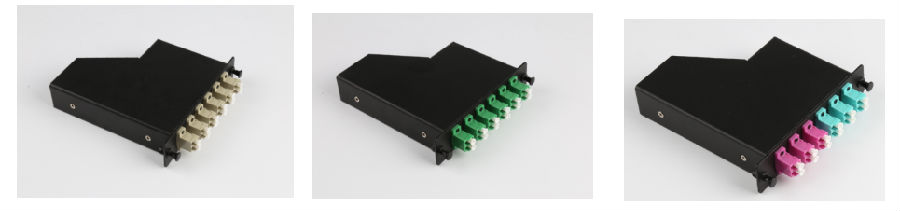

This cassette has a LGX foot print and can be installed in a Vertical MPO cassette holder or a Horizontal MPO cassette holder. ZG Tech MTP / MPO Cassettes are all made with high quality Corning fiber optic cable and come in many fiber modes: Single Mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and others. These cassettes also have many common fiber optic connector ports available: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors with LC and LC/APC options for both 12 Fiber Cassettes and 24 Fiber Cassettes. All ZG Tech MTP / MPO Cassettes can be made with either male or female MTP / MPO connectors to fit your needs.
