As one of the leading 24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes made in China. Welcome to visit our website.

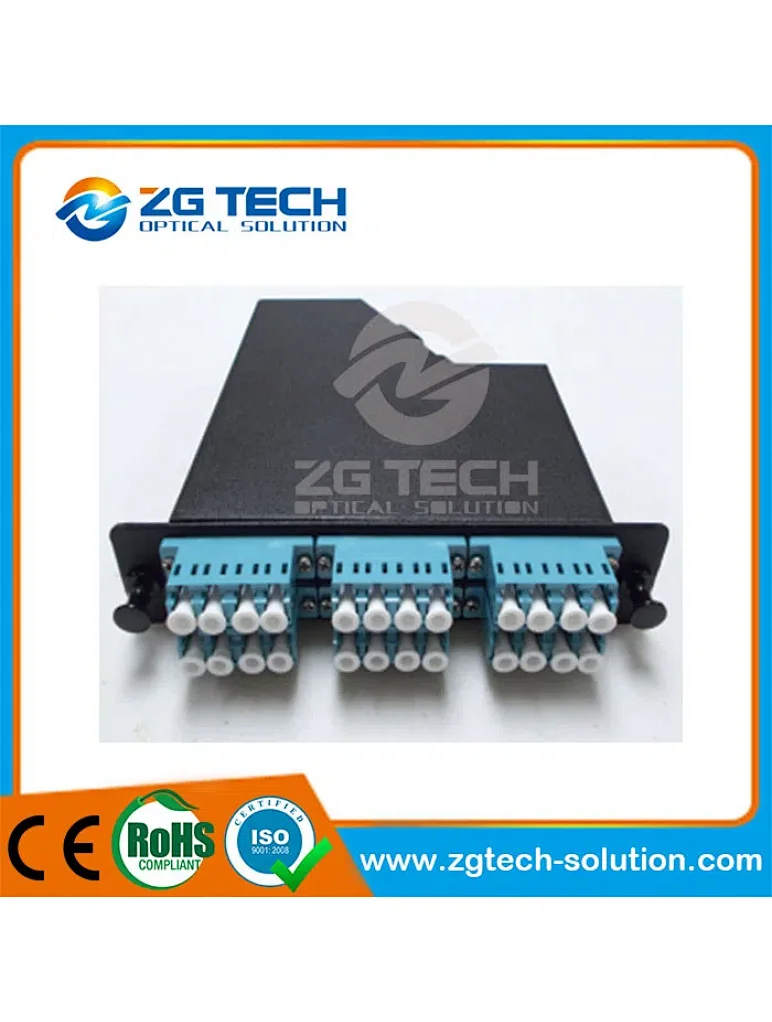

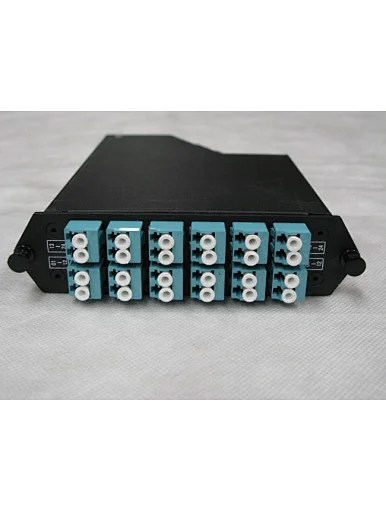

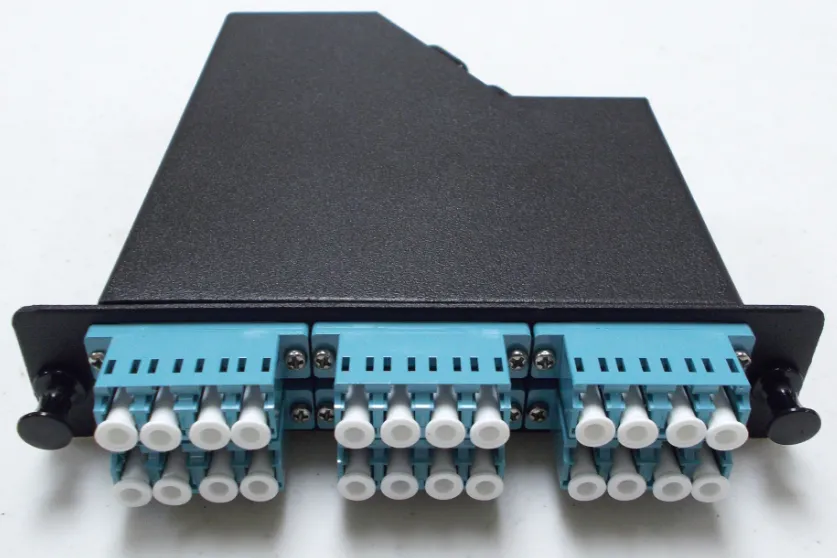

24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes

24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes

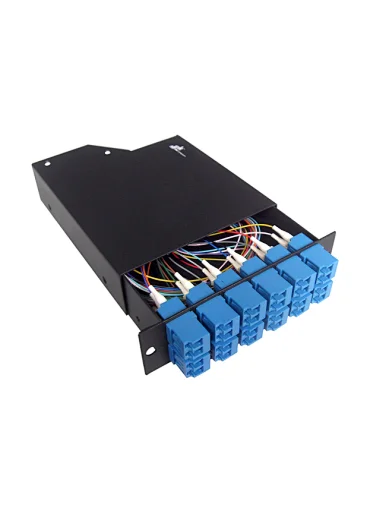

This 24 Fiber MTP / MPO cassette allows for a break-out to 24 LC connectors. This cassette uses two 12 fiber angled polish MTP / MPO and flat polished LC/UPC connectors for low insertion loss. Inside the cassette is a fan out using Single mode 9/125µm Corning fiber from one MTP/APC (female) which then connector to 24 Core MTP MPO Fiber Optic/24 LC/UPC ports on the front using six quad LC adapters.
24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes
This cassette has a LGX foot print and can be installed in a Vertical MPO cassette holder or a Horizontal MPO cassette holder. ZG Tech's MTP / MPO Cassettes are all made with high quality Corning fiber optic cable and come in many fiber modes: Single Mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um), and others. These cassettes also have many common fiber optic connector ports available: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors with LC and LC/APC options for both 12 Fiber Cassettes and 24 Fiber Cassettes. All ZG Tech's MTP / MPO Cassettes can be made with either male or female MTP / MPO connectors to fit your needs.

24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes
Hot Tags: 24 core MTP MPO fiber optic plug-n-play cassettes）24 Core MTP MPO Fiber Optic  manufacturers China, suppliers, factory, customized, low price, made in China
24 Core MTP MPO Fiber Optic Plug-N-Play Cassettes
