Model No: 2×4 SC FC LC

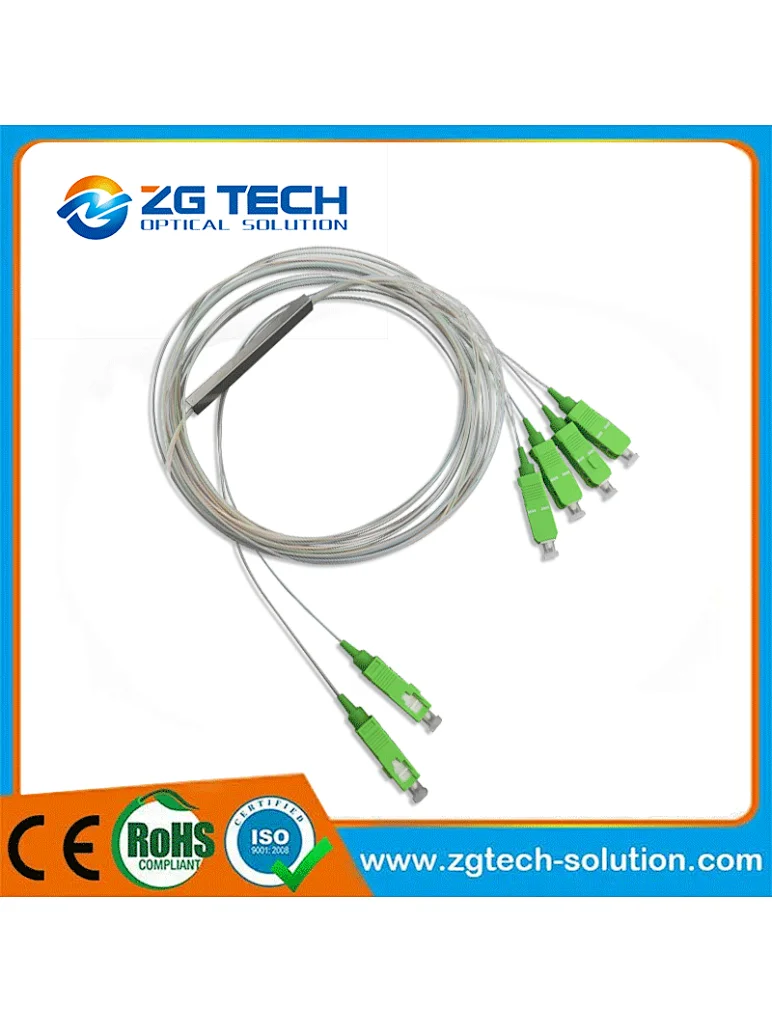

PLC Bare Fiber Splitter Steel Tube
2×4 Fiber optic splitter Features
Light weight, compact size
Wide wavelength range
Low insertion loss, PDL and high reliability
High return loss, good repeat ability
Excellent channel-to-channel uniformity
Telcordia GR-1221-CORE Compliant
2×4 Fiber optic splitter Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Telecommunication Networks
Light weight, compact size
Wide wavelength range
Low insertion loss, PDL and high reliability
High return loss, good repeat ability
Excellent channel-to-channel uniformity
Telcordia GR-1221-CORE Compliant
2×4 Fiber optic splitter Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Telecommunication Networks
Quantity :
0.00
Subscribe to our Newsletter
PLC Bare Fiber Splitter Steel Tube(PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate.
PLC Bare Fiber Splitter Steel Tube has the characteristics of small size, wide working wavelength range, high reliability, good spectral uniformity and so on. It is especially used in passive optical network (EPON, GPON, etc.) to connect the local terminal and terminal equipment and realize optical signal shunt. We provide a full range of 1×N and 2×N products, and tailor optical splitters for various occasions.
PLC Bare Fiber Splitter Steel Tube is one of the important passive optical devices in optical fiber links.
PLC Bare Fiber Splitter Steel Tube has one or more input terminals and several output terminals. The three most important components of the optical fiber array are input, output and chip. The design and assembly of these three components play an important role in the stable and normal operation of the PLC optical shunt.
2×4 Fiber optic splitter Technical Specification
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| Operating Temperature | -40- +85℃ | ||||||||||||||||
