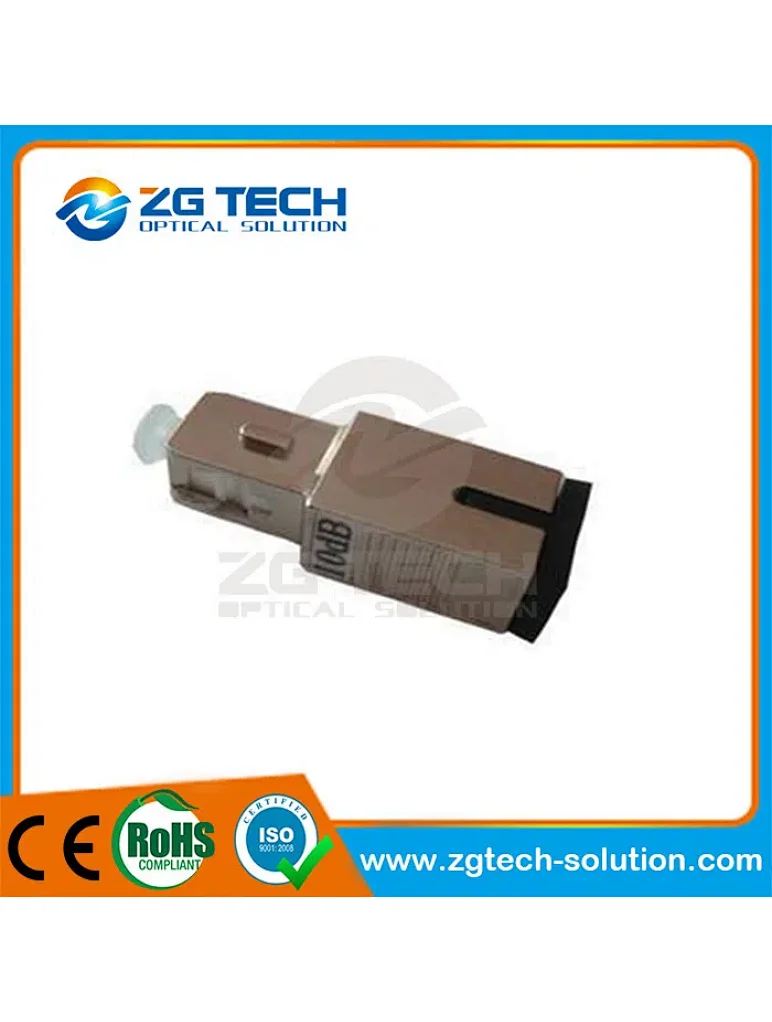

SC Plug-In Male To Female Fixed Attenuator
Model No: SC Plug

SC Plug-In Male To Female Fixed Attenuator

As one of the leading SC Plug Attenuator/sc plug-in male to female fixed attenuator manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price sc plug-in male to female fixed attenuator made in China. Welcome to visit our website.
Quantity :
0.00
Buy Now
add to cart
Contact Now
Subscribe to our Newsletter
As one of the leading SC Plug-In Male To Female Fixed Attenuator manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price SC Plug-In Male To Female Fixed Attenuator made in China. Welcome to visit our website.

SC Plug-In Male To Female Fixed Attenuator

Plug-In Fixed Attenuators are mainly used for adjusting the Optical Power to a desired level.by using Metal-Ion Doped Optical Fibers, the Plug-In Fixed Attenuators convert optical power into heat and the power is then attenuated inside the devices.

SC Plug-In Male To Female Fixed Attenuator


SC Plug-In Male To Female Fixed Attenuator
Applications
Features
Optimized Ion Doped Fiber Technology
Stable environment performance
Easy to install
Superior spectral flatness
High return loss
Low insertion loss
Telecommunication network
Optical fiber CATV
Measuring instrument
Local area network
Optical fiber sensor
Optical fiber to household
SC Plug-In Male To Female Fixed Attenuator
Performance Specifications
Parameter
   Standard
PC
0dB to 20dB(1dB step.) 25dB
APC
Customer request
Assigns the standard specifically
Operating wavelength
1260nm~1620nm
Return loss
SPC
≥40dB
UPC
≥50dB
APC
≥60dB
Weaken precision
Weaken precision
0dB~10dB
±1.0dB
11dB~5dB
±1.5dB
Customer request
Assigns the standard specifically
Operating temperature
-40℃~+75℃
Maximum handling power
1W
SC Plug-In Male To Female Fixed Attenuator
Ordering Information

Type
Operating wavelength
Attenuate value
Coupling type
PLFA
13=1310nm
15=1550nm
35=1310/
1550nm

20=20dB
15=15dB
10=10dB
05=5dB
03=3dB
0=None
FC=FC/PC
SC=SC/PC
FA=FC/APC
SA=SC/APC
ST=ST
SC Plug-In Male To Female Fixed Attenuator

SC Plug-In Male To Female Fixed Attenuator

SC Plug-In Male To Female Fixed Attenuator
SC Plug-In Male To Female Fixed Attenuator
SC Plug-In Male To Female Fixed Attenuator
SC Plug-In Male To Female Fixed Attenuator

SC Plug-In Male To Female Fixed Attenuator
FAQ

SC Plug-In Male To Female Fixed Attenuator
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

SC Plug-In Male To Female Fixed Attenuator
Q2. What about the lead time?

 A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit?

 A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

 A: We can ship by DHL, UPS, FedEx or TNT and cargo agent. It usually takes 3-5 days to arrive. Sea shipping also optional.

Q5. How to proceed an order?

 A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on product?

 A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

 Q7: Do you offer guarantee for the products?

 A: Yes, we offer 1-2 years warranty to our products.

Q8: How to deal with the faulty?

 A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
