SC fiber optical adapter SC APC type SM tester tool accessories bare fiber optic adaptor
SC fiber optical adapter SC APC type SM tester tool accessories bare fiber optic adaptor
Bare fiber optic adapters are used as the medium to link the bare optical fiber to fiber optic equipment. It have the bare optical fiber inside on one side, the other side of the adapter is a connector that can plug into the equipment. It is used to quickly and easily terminate the fiber to the equipment.
Bare Fiber Adaptor Features:
Fits accordingly FC, SC, ST adapters
Lightest weight and very compact size
Specially designed mechanism minimizes insertion loss
Highest repeatability
User friendly -- easy to insert, remove and reload fiber
Bare Fiber Adaptor Material:
Sleeve material: Zirconia
Housing Material: High Quality Plastic
Bare Fiber Adaptor Application:
WANs, LANs, CATV
Communication system
Fiber optic measurement in laboratory
Production line of fiber optic devices
Temporarily connect bare fiber
Testing bare fiber, fiber on the reel, fiber before and after installation
OTDRs, Power meters, Talk sets, Demo equipment and dark fiber
Other maintenance, restoration and installation jobs

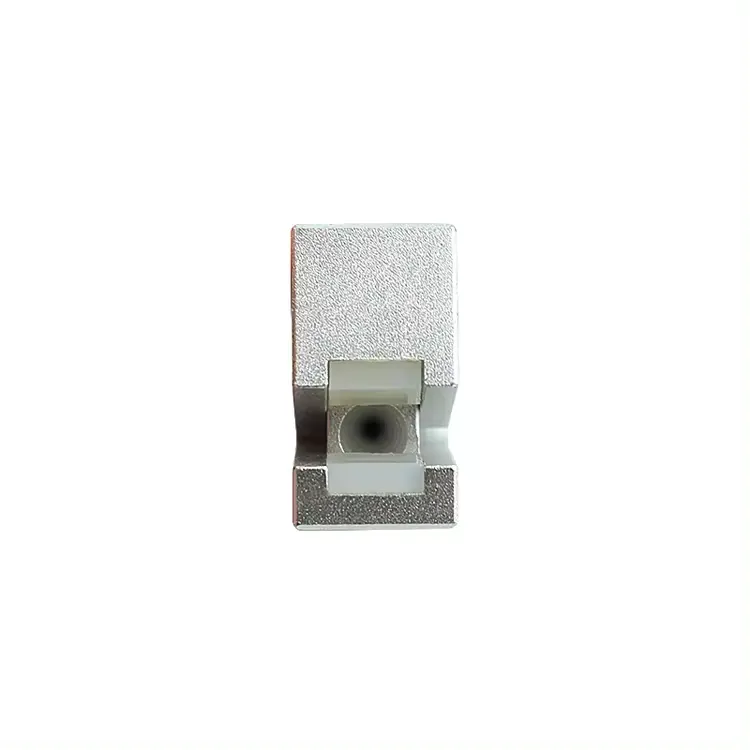

SC Bare Fiber Adaptor
Parameter:
Description | SC Fiber Optic Adapter | |||||
Item NO. | Test Item | Unit | Standard & Requirement | |||
1 | Insertion Loss(Typical) | dB | ≤1dB | |||
2 | Return Loss | dB | ≥50 | |||
3 | Exchangeability | dB | ≤0.2 | |||
4 | Repeatability | dB | ≤0.2 | |||
5 | Durability | Time | ＞1000 | |||
6 | Operating Temperature | ℃ | ﹣40～﹢75 | |||
7 | Storage Temperature | ℃ | ﹣45～﹢85 | |||

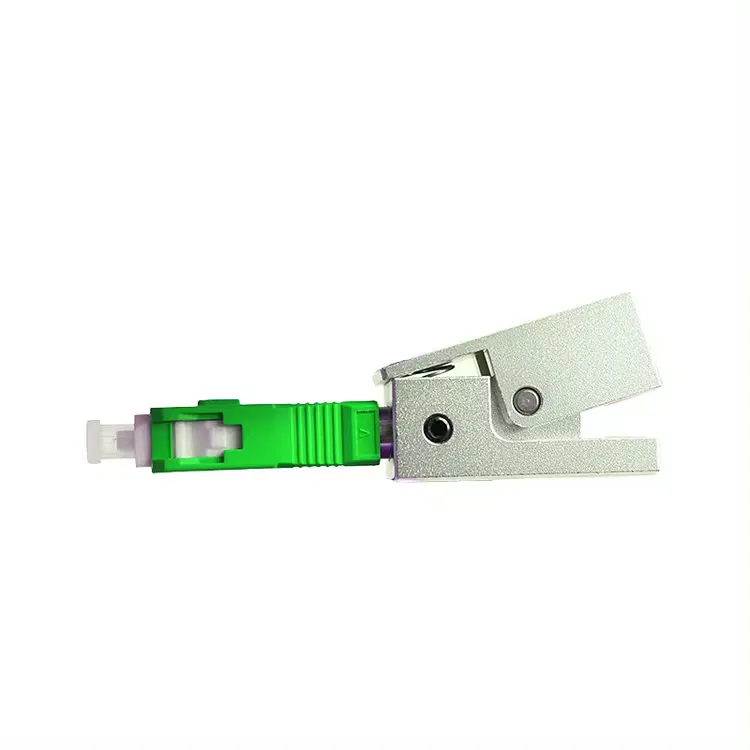

SC Bare Fiber Adaptor
SC Bare Fiber Adaptor
SC Bare Fiber Adaptor
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We can ship by DHL, UPS, FedEx or TNT and cargo agent. It usually takes 3-5 days to arrive. Sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
SC Bare Fiber Adaptor
