Model No: 1.25G 2x5 1610nm 120KM LC

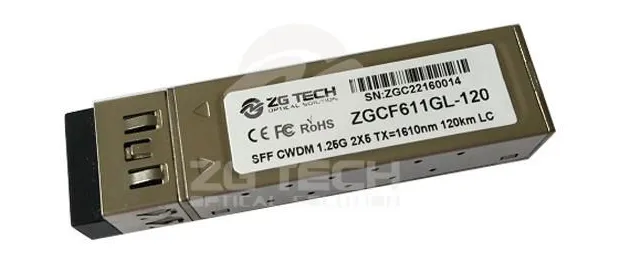

SFF CWDM Optic Transceiver Module 1.25G 2x5 1610nm 120KM LC
ZG technology (Shenzhen) Co., Ltd. is one of the leading CWDM fiber transceiver module manufacturers and suppliers in China, can provide you with china-made custom and low-cost SF CWDM fiber transceiver module.
Quantity :
0.00
Subscribe to our Newsletter
ZG technology (Shenzhen) Co. , Ltd. is one of the leading CWDM fiber transceiver module manufacturers and suppliers in China, can provide you with china-made custom and low-cost SF CWDM fiber transceiver module.SFF CWDM Optic Transceiver Module for commercial & residential. We are a total lighting solutions provider.
SFF CWDM Optic Transceiver Module
Product Introduction
Features
●Operating data rate up to 1.25Gbps/2.5Gbps
●Duplex LC Single-Mode Transceiver
●For 1.25G CWDM SFF,APD receiver can up to 120KM transmission
●Uncooled DFB laser transmitter
●18 channels can be selected from 1270 nm to 1610nm in wavelength
●Single 3.3V Power supply
●DC/AC Coupled Signal Input / Output
●LVTTL Transmitter Disable Input
●LVTTL Signal Detect Output
●Small Form Factor 2X5 pin Package
●Operating Case Temperature:
Standard: 0℃~+70℃,Industrial: -40℃~+85℃
●ROHS6 Compliant
●Duplex LC Single-Mode Transceiver
●For 1.25G CWDM SFF,APD receiver can up to 120KM transmission
●Uncooled DFB laser transmitter
●18 channels can be selected from 1270 nm to 1610nm in wavelength
●Single 3.3V Power supply
●DC/AC Coupled Signal Input / Output
●LVTTL Transmitter Disable Input
●LVTTL Signal Detect Output
●Small Form Factor 2X5 pin Package
●Operating Case Temperature:
Standard: 0℃~+70℃,Industrial: -40℃~+85℃
●ROHS6 Compliant
Applications
SFF CWDM Optic Transceiver Module
●Fiber Channel Links
●WDM Gigabit Ethernet Links
●SONET/SDH Equipment Interconnect
●WDM Gigabit Ethernet Links
●SONET/SDH Equipment Interconnect
Order Information
Product Number | Data Rate | Wavelength (nm) | Transmission Distance | Connector | Laser (Tx) | Detector (RX) | Datasheet Download |
FPCPXX1GL-40 | 1.25G | 1270-1610 | 40KM | LC | DFB | PIN | Datasheet |
FPCPXX1GL-80 | 1.25G | 1270-1610 | 80KM | LC | DFB | PIN | Datasheet |
FPCPXX1GL-120 | 1.25G | 1470-1610 | 120KM | LC | DFB | APD | Datasheet |
FPCPXX2GL-40 | 2.5G | 1270-1610 | 40KM | LC | DFB | PIN | Datasheet |
FPCPXX2GL-80 | 2.5G | 1270-1610 | 80KM | LC | DFB | APD | Datasheet |
