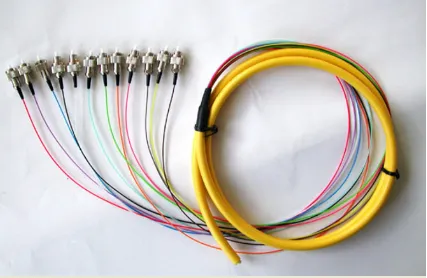

SM Fiber Optic mini-breakout 12 Cores Multi-cores Pigtails with Connector

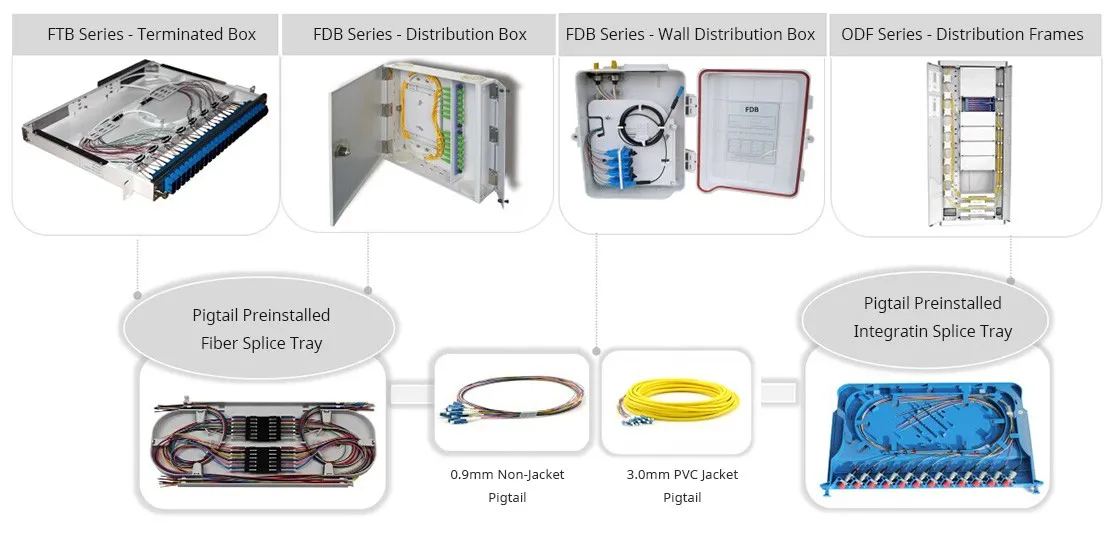

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of our pigtails are factory inspected and tested, with available interferometer data upon request.
Quantity :
0.00
Subscribe to our Newsletter
As one of the leading multi-core Fiber Optic Pigtail manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low-price optical Multi-cores Pigtail/12 core fiber pigtail made in China. Welcome to visit our website.Fiber
SM Fiber Optic mini-breakout 12 Cores Multi-cores Pigtails with Connector
Features | Applications |
Low insertion loss High return loss Good duplication, and interchangeability | Long-distance trunk network, Metro- area network, access network DWDM system, Optical fiber CATV Optical fiber data network |
Performances Specifications
Parameter | FC, SC, LC | ST, MU MT-RJ, MPO | E2000 | |||||||
SM | MM | SM | MM | SM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
IL(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
RL | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥55 | ≥75 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||
Exchange ability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||
optical Multi-cores Pigtail /12 core fiber pigtail
