Model No: Multimode

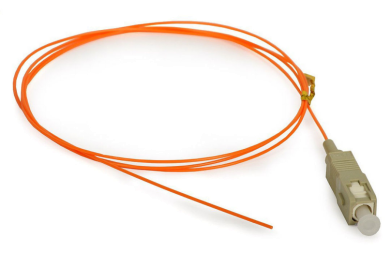

OM2 MM SX Fiber Pigtail 0.9mm 50 /125 Multimode Simplex Fiber Pigtail SC UPC
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Quantity :
0.00
Subscribe to our Newsletter
Multimode Pigtail/OM2 pigtail provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
OM2 MM SX Fiber Pigtail 0.9mm 50 /125 Multimode Simplex Fiber Pigtail SC UPC
Features | Applications |
Low insertion loss | Long-distance trunk network, |
Performances Specifications
Model Number | Fiber Pigtail | Connector Type | LC |
Place of Origin | Guangdong, China | Brand | OEM/ODM |
Min. Bend Radius | 7.5mm | Fiber Grade | 50/125 OM3 |
Fiber count: | Simplex | Polish Type | UPC |
Insertion loss | ≤0.3dB | Return loss | ≥30dB |
Cable Jacket: | PVC/OFNR/LSZH/Plenum(OFNP) | Jacket Color | Aqua / Orange ...Customized |
Wavelength | 850 nm/1300 nm | Durability | 500 Times |
Cable Diameter | 0.9mm | Length | Customized |
Interchangeability | ≤0.2 dB | Vibration | ≤0.2 dB |
Operating Temperature (° C) | -40~ + 75 | Storage Temperature (° C) | -45 ~ +85 |
Multimode Pigtail/OM2 pigtail
Ordering Information:
1.Connector Type: SC/LC/ST/FC/MU various connectors available
2.End-face: PC/UPC/APC
3. Fiber Type: 50/125um,62.5/125um, OM/OM2/OM3/OM4 Material PVC or LSZH
4.Cable Diameter: 900um, 2.0mm, 3.0mm
5.Core Qty: Simplex/Duplex, 4cores, 8cores, 12cores, 24cores available
6. Length: Customized

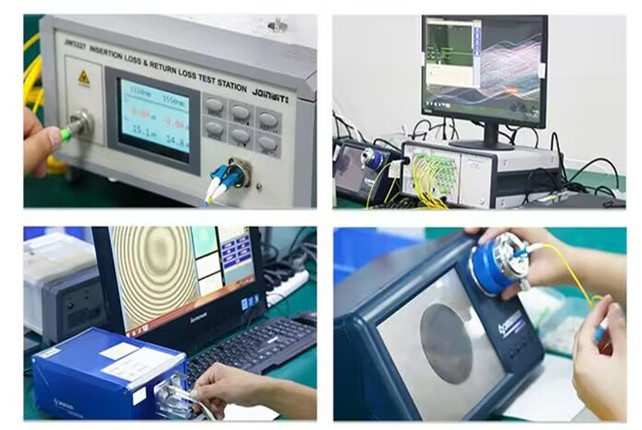

Our workshop:
