Model No: 2X2B
2X2B Optical Switch
Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
Application
·MAN
·R&D in Laboratory
·System Monitoring
·Configurable OADM
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
Application
·MAN
·R&D in Laboratory
·System Monitoring
·Configurable OADM
Quantity :
0.00
Subscribe to our Newsletter
2x2 Bypass Opto-Mechanical Optical Switches
The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Network switching
System monitoring
Channel Blocking
Module and System Integration
Metropolitan Area Network
Network protection and restoration

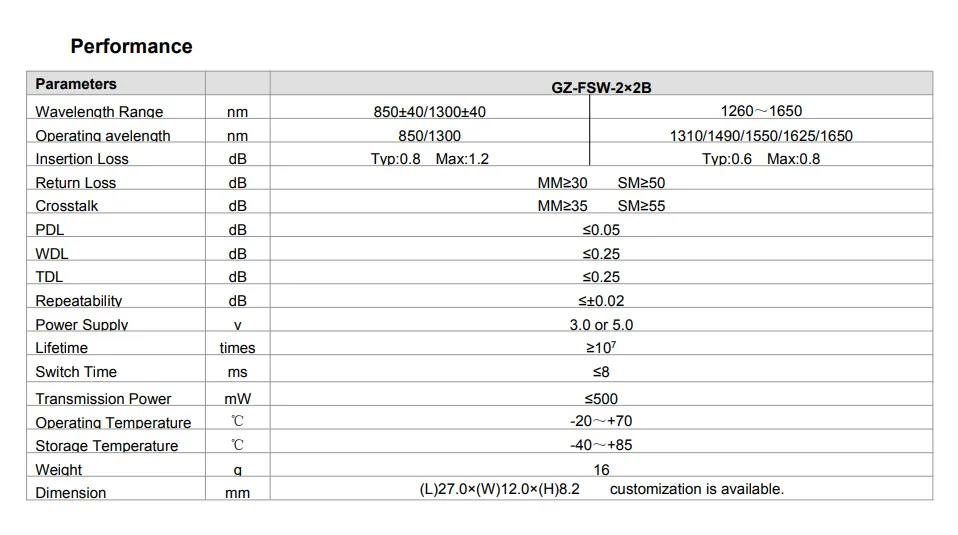

Technical Paremeter
